BenchVent Dual Speed Fume Cabinet (Hood ID 960 x 660x 620) BV930H-C
SKU: BV930H-C
BV930H-C
Description
Applications
Features
Includes
Resources
Specifications
Shipping & Delivery
The BV930H-C is large dual-speed hood mounted filtration cabinet with high-efficiency carbon filter. It is designed to offer local exhaust ventilation for large projects, and immediate operator protection when external venting isn’t possible.
Additionally, the BV930H-C also provides operators with a safe workstation for handling potential harmful chemicals. All processes is done within the hood enclosure in front of the the intake filter area.
For use in situations where external venting is impractical and hydrocarbon vapour and gas filtration is necessary. Applications include the handling and use of Electrochemicals (cleaning solvents, conformal coatings etc) resins, sealants and adhesives both in aerosol and static form, solder pots and solder irons. Also used in orthopaedics and dental laboratories for controlling staff exposure to, typically, methyl methacrylate, cyanoacrylate adhesives and for the safe weighing of hazardous powders.
For artwork applications, the enclosure can accommodate a standard A1 drawing board, which will sit at an angle so the unit captures the overspray efficiently, keeping the surrounding working area clean.
This unit is suitable for use in dental & medical laboratories, pharmaceutical labs, school science laboratories, design and research laboratories and electronic manufacturing.
NOTE: BULKY PRODUCTS INCUR ADDITIONAL FREIGHT CHARGES
Discover the BenchVent Dual Speed Fume Cabinet (Hood ID 960 x 660x 620) BV930H-C at Mektronics Australia – your trusted source for quality tools and equipment!
The BV930H-C is suitable to filter fumes, vapours and particulates from:
-
Spray Adhesives
-
Conformal coatings (thin polymer film usually used to coat circuit boards)
-
Paints
-
Monomers
-
Resin
-
Sealants
-
Solders
-
Light Grinding
-
Organic Solvents
-
Cleaners
-
Other hazardous powders and particulates
-
Quiet in operation
-
Can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.
-
Steel construction finished in dove grey – fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting
-
particulate (intake) filter
-
bonded carbon filter
-
2 x centrifugal blowers
-
External rotor motor (brushless, UL, VDE and CSA approved)
-
Sealed electricals, downstream of filters
-
Filter unit with 2x Centrifugal fans
-
Hood Enclosure
-
Hood Light
-
Poly-carbonate hinged front panel
-
1 x Particulate filter
-
1 x Activated Carbon Filter
-
Power Lead
-
Data/Warranty Booklet
View the datasheet HERE
|
Weight |
55 kg |
|---|---|
|
Dimensions |

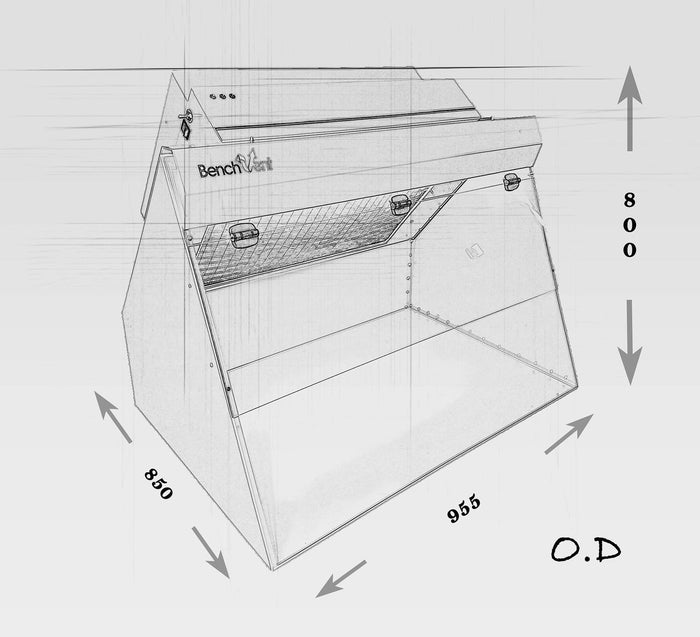

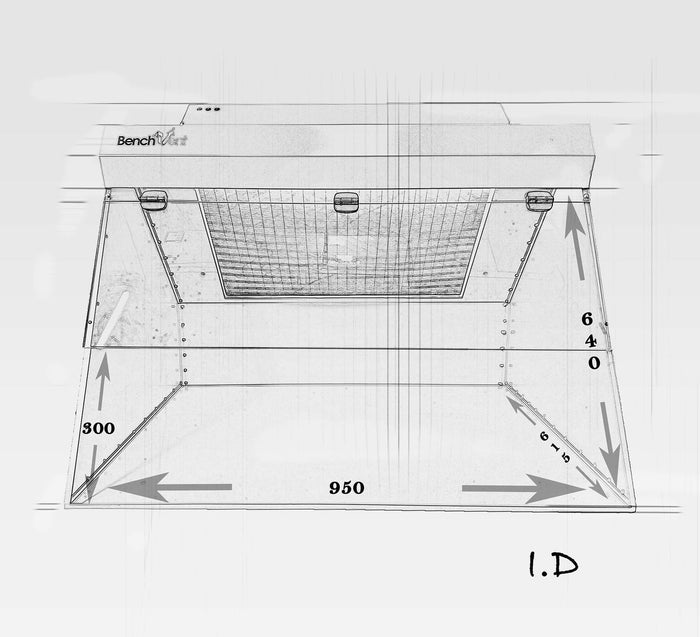

960 x 660 x 620 (w x h x d) Internal 960 x 740 x 720 (w x h x d) Overall |
|
Description |
Steel construction finished in grey – fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting – particulate (intake) filter – bonded carbon filter – 2 x centrifugal blowers, external rotor motor type brushless, UL, VDE and CSA approved – sealed electricals, downstream of filters. |
|
Air Volume at Free Air |
710m3/hr |
|
Ave. Air Velocity at Filter Face |
0.57m/sec (0.40m/sec slow setting) |
|
Ave. Air Velocity at Hood Face |
0.50m/sec (0.39m/sec slow setting) |
|
Fan Motor Spec |
230V, 50Hz, 210W, 115V 60Hz 220W |
|
Filters |
Particle Filter: IFA2 – Carbon Filter: AC100 – Optional EPA Filter: HE705 |
