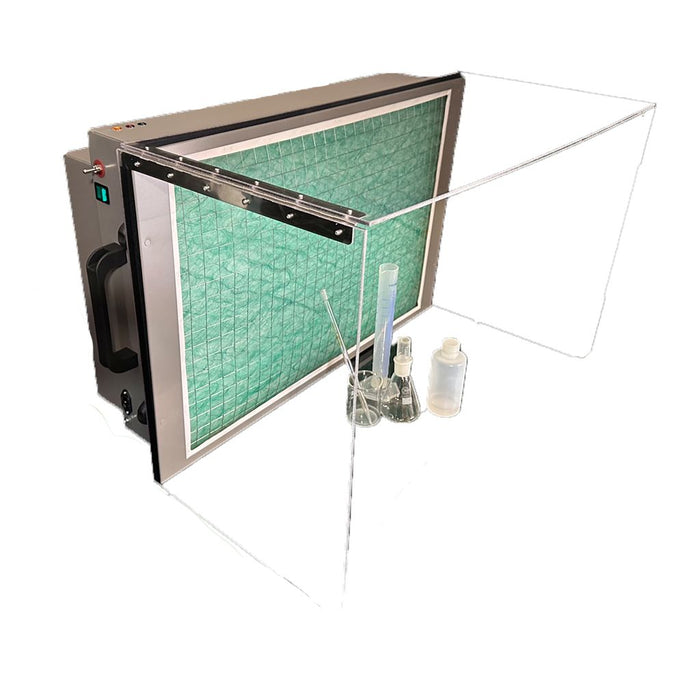

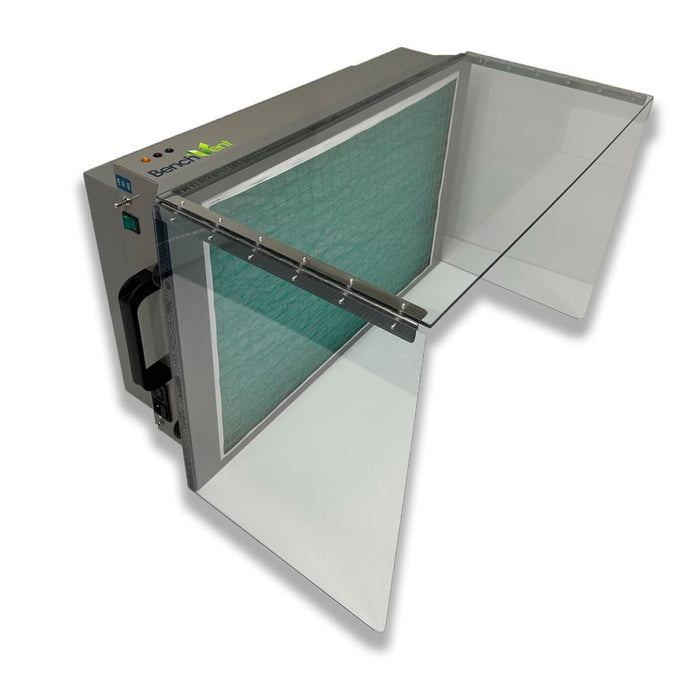

BenchVent Dual Speed Filter Cabinet (700 x 515 x 610) BV700S-C
The BenchVent BV700S-C; a large dual-speed high-efficiency filter cabinet with acrylic capture shield to contain and filter for a cleaner, healthier working environment The high quality and high performance design has sees the BV700S-C in operation in dental labs, electronic design & rework, pharmaceutical labs and design & technology environments. It also suitable for use in the education sector.
All BenchVent filtration and extraction are made to the highest quality possible and that's backed up by our lifetime guarantee; giving our customers total piece of mind when it comes to investing in their filtration and extraction needs.
Top Quality Filters
The particulate (intake) filter is a three stage graduated fibre filter (filtration to approx 5.0 micron particles) with a high 'dust' holding capacity for long life. (Optional EPA filters available to 0.3micron particles). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated.
Discover the BenchVent Dual Speed Filter Cabinet (700 x 515 x 610) BV700S-C at Mektronics Australia – your trusted source for quality tools and equipment!
-
Filter unit with 2x Centrifugal blowers
-
Clear Acrylic Spray Shield for enhanced visibility
-
Particulate filter
-
1 x Activated Carbon filter
-
Power Lead
-
Data/Warranty Booklet
Download the datasheet for more information: BV700S Datasheet
** ADDITIONAL CHARGES MAY APPLY FOR AIR FREIGHT **
The BV700S-C has been designed so it can be used in numerous situations where external venting is impractical but where contaminant capture and filtration is necessary. It's small footprint makes it ideal for the active filtration of fumes, vapour and particulates emanating from: monomers, adhesives, hazardous powders/particulates, conformal coatings, resins, sealants, solders, light grinding particles and dusts, organic solvents etc.
These units are designed for immediate operator protection from concentrations of airborne contaminants whereby all gases, fumes, vapours and particulates at the front of the unit are drawn into the intake filter. Cleaned air is exhausted to the top rear of the cabinet.

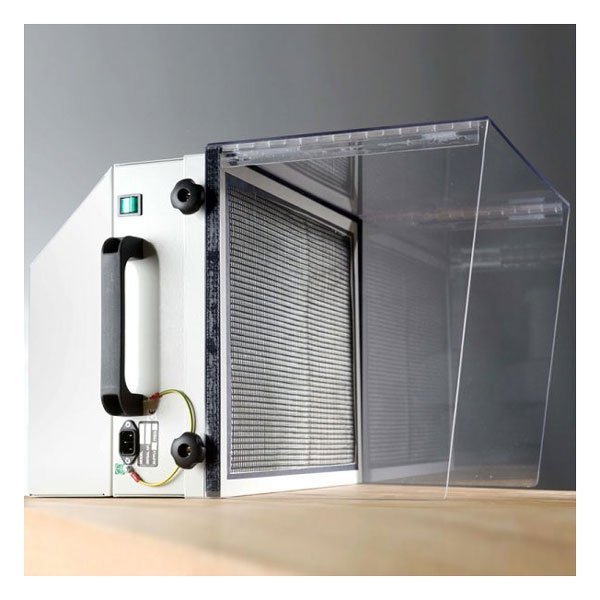

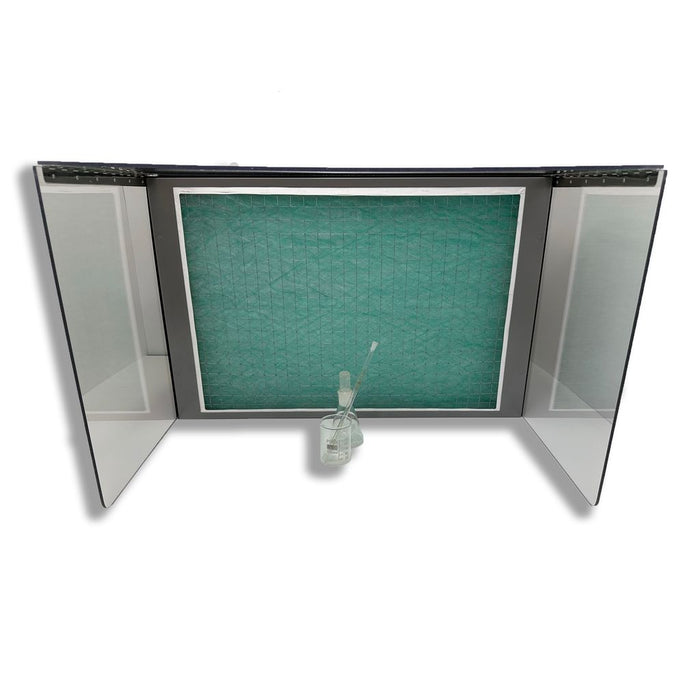

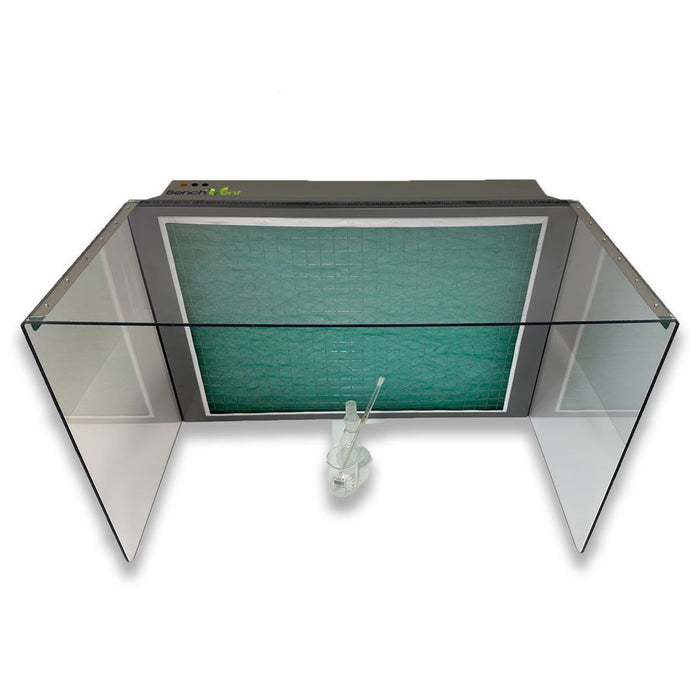

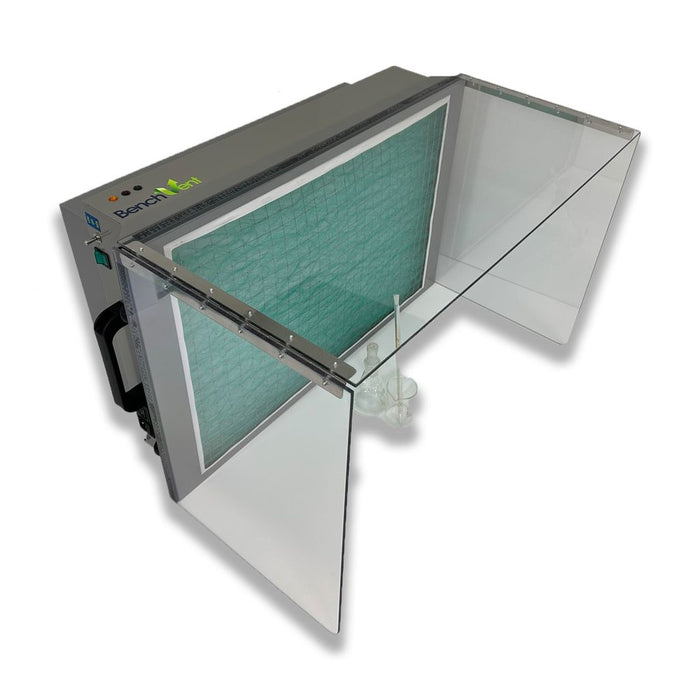

The folding PETG shield can be stored if not required thus reducing the unit footprint considerably. Handling and / or use of potentially harmful substances is carried out in front of the intake filter area. Cleaned air is vented to the top rear of the units.
-
Dual airspeed function to facilitate higher vapour absorbtion
-
Carry handle
-
Can be assembled in seconds
-
Low noise level
-
Can be assembled in seconds; place onto a desk, bench or trolley and then simply plug in and switch on

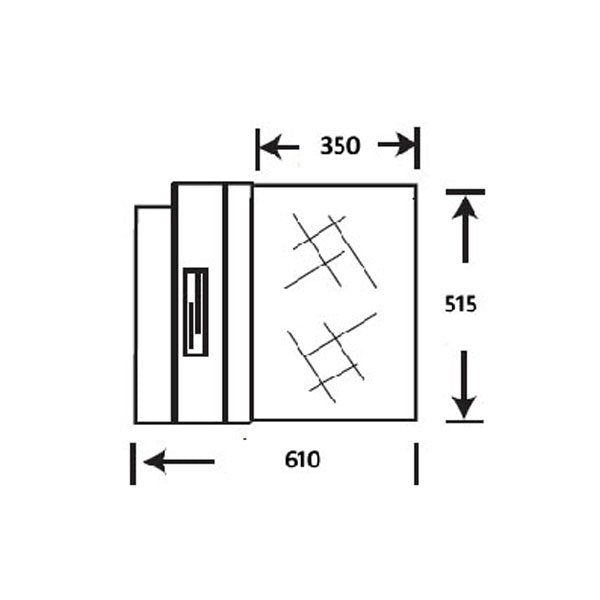

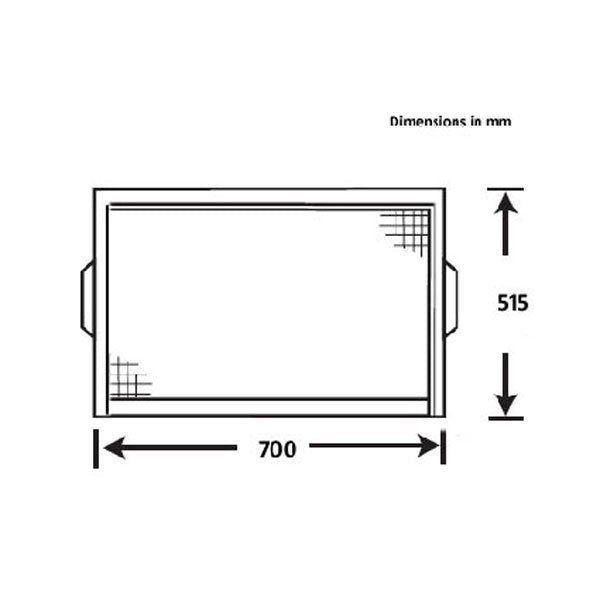

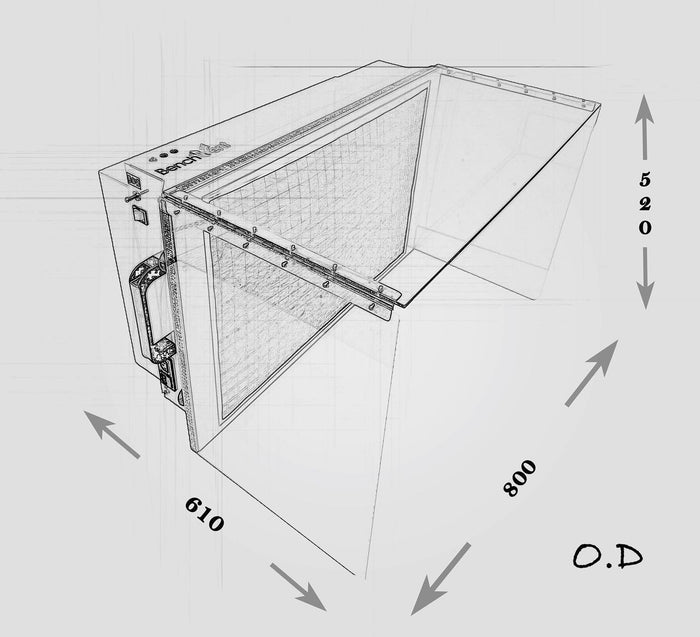

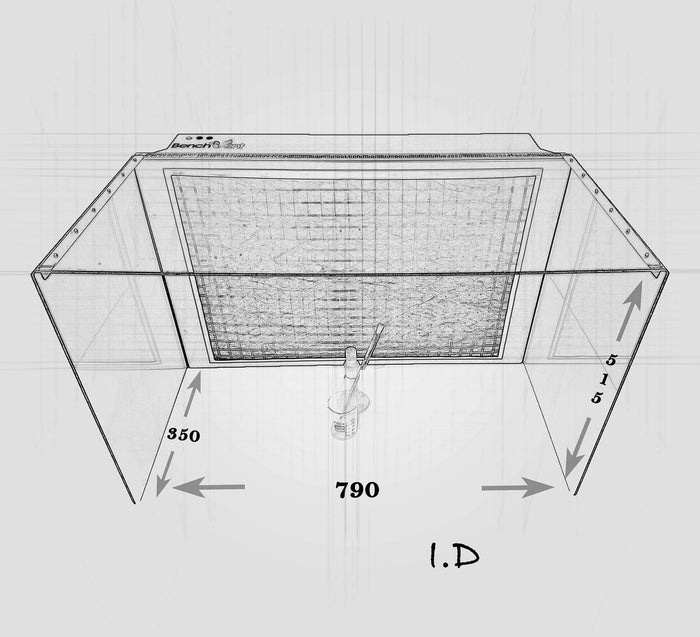

| Dimensions |
700x515x610mm (wxhxd) |
|---|---|
| Description |
Fan/filter casing (steel construction finished in grey) – clear PETG folding plastic fume shield – particulate (Intake Filter) – 7kg bonded carbon filter – 2 x centrifugal blowers, external rotor motor type brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filters. Dual speed control |
| Air Volume at Free Air |
710m3/hr |
| Ave. Air Velocity at Filter Face |
0.55m/sec |
| Ave. Air Velocity at Hood Face |
0.50m/sec |
| Filters |
IFA2 Particle Filter, AC100 Carbon Filter. OPtional EPA fine article filter available |
| Fan Motor Spec |
230V 50Hz 210W, 115V 60Hz Available as Option |
| Noise Level LAeq (db(A) |
62 |
