BenchVent Air Filtration Cabinet BV100H
The BV100H is a general purpose hood mounted filtration cabinet and workstation for light aerosoal sprya and airbrush use and fume/vapour absorption and dilution. It designed for use within art, graphics, design technology areas, crafts and modelling. It has a big working space, and can accommodate up to an A1 size artwork, as well as prototypes, scale models, ceramics, PCBs and more.
All BenchVent filtration and extraction systems carry a lifetime guarantee.
How does it filter harmful substances?
The particulate (intake) filter is a three stage graduated fibre filter with a high 'dust' holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The carbon impregnated fibre filter (behind the intake) assists in the reduction of solvent odours. Through the process of filtration, adsorption and dilution, operator exposure to concentrations of potentially hazardous substances is vastly reduced.
NOTE: BULKY PRODUCTS INCUR ADDITIONAL FREIGHT CHARGES
Discover the BenchVent Air Filtration Cabinet BV100H at Mektronics Australia – your trusted source for quality tools and equipment!
The BV100H is suitable for art and graphics, hobbies, modelling and craft application. It will extract fumes and filter particles created by:
-
Aerosol Adhesives
-
Lacquers
-
Fixatives
-
Airbrush Sprays
-
Solders
-
Light Grinding
-
A2 or A1 drawing boards can be placed into the hoods at an angle for efficient overspray capture.
-
The workstation hood also accommodates prototypes, models, ceramic parts, PCB's etc, placed onto the hood base to be sprayed, soldered, cleaned, glued, moulded, sanded etc.
-
BV100H Filter unit with 2 x axial fans
-
Hood Enclosure
-
1 x Particulate filter
-
1 x Charcoal Impregnated fibre filter
-
Power Lead
-
Data/Warranty Booklet
Click HERE to view the BV100H datasheet
| Weight |
125 kg |
|---|---|
| Dimensions |

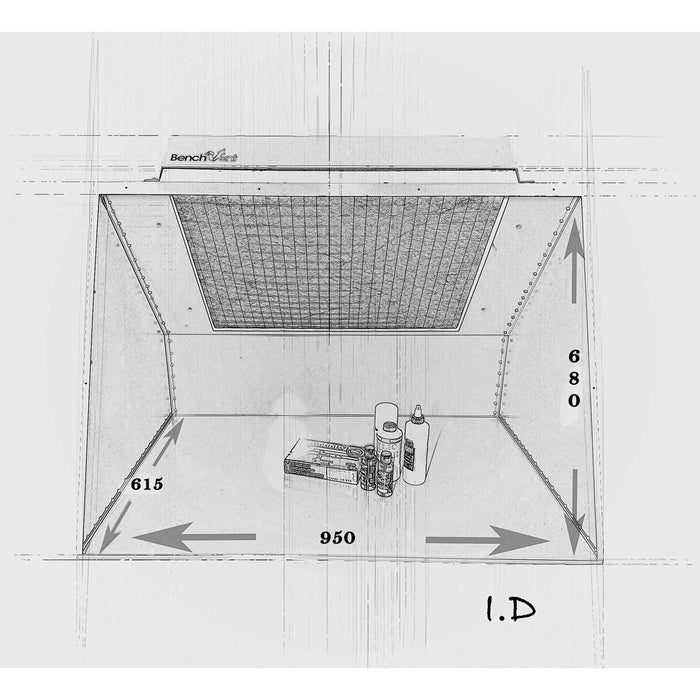

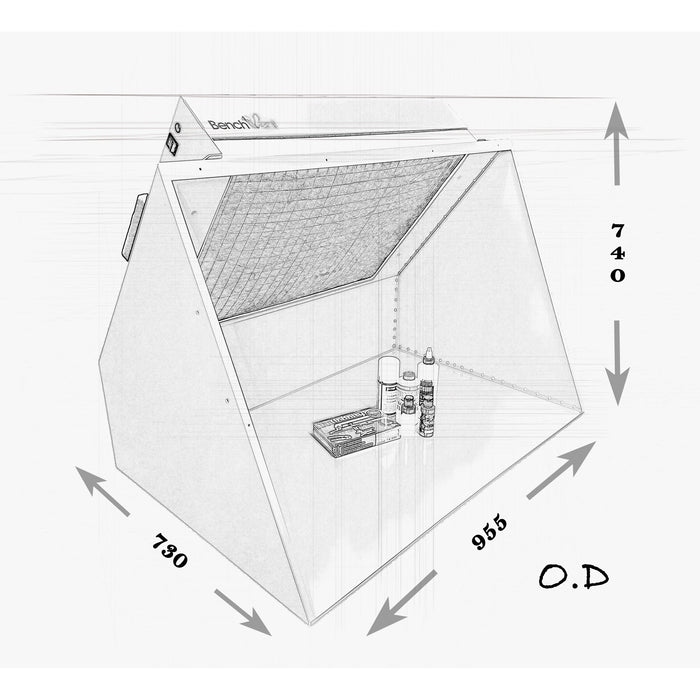

960x660x620 (wxhxd) [internal] 960x740x720 (wxhxd) [overall] |
| Description |
Steel construction finished in grey - fan/filter unit mounted onto hood enclosure - particulate filter - carbon impregnated fibre filter - 2 x axial fans, external rotor motor type brushless, UL, VDE and CSA approved - sealed electrical wiring and switch, downstream of filters. |
| Air Volume at Free Air |
650 m3/hr |
| Ave. Air Velocity at Filter Face |
0.50 m/sec |
| Ave. Air Velocity at Hood Face |
0.25 m/sec |
| Fan Motor Spec |
230V, 50Hz, 80W, 115V 60Hz 85W |
| Filters |
Particle Filter - IFA2, Charcoal Filter -CHA2, Filter Kit - FKA2 |
| Noise Level LAeq dB(A) |
61 db(A) |
