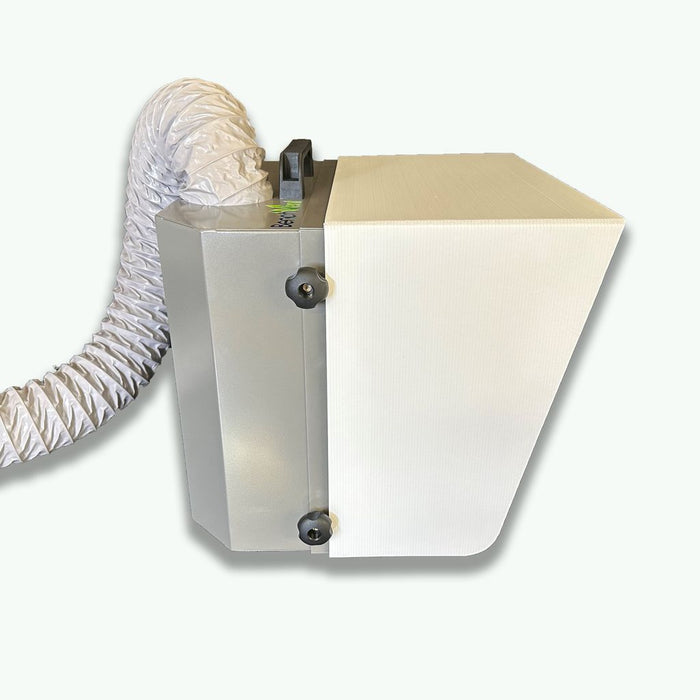

BenchVent A3 Ducted Extraction Unit BV300S-D
The BenchVent BV300S-D, an A3 Extraction Unit for Aerosols, Airbrushes and more. This high quality extraction system contains, filters and extracts harmful particulates for a cleaner, healthier working environment; making it ideal for the hobbyist, modeller and arts and craft enthusiast.
All BenchVent filtration and extraction units come with a lifetime guarantee, are quiet in operation and are extremely quick to get up and running. All that’s required is to place the extraction unit on a desk or trolley and simply plug it in and switch on. Because the BV300S-D is an extraction unit it comes complete with our Flexi-Duct to atmosphere extraction fittings. The Flexi-duct can be fixed to a standard domestic vent or simply placed through a partially open window to facilitate portability or convenience.
This unit can be used in two positions:

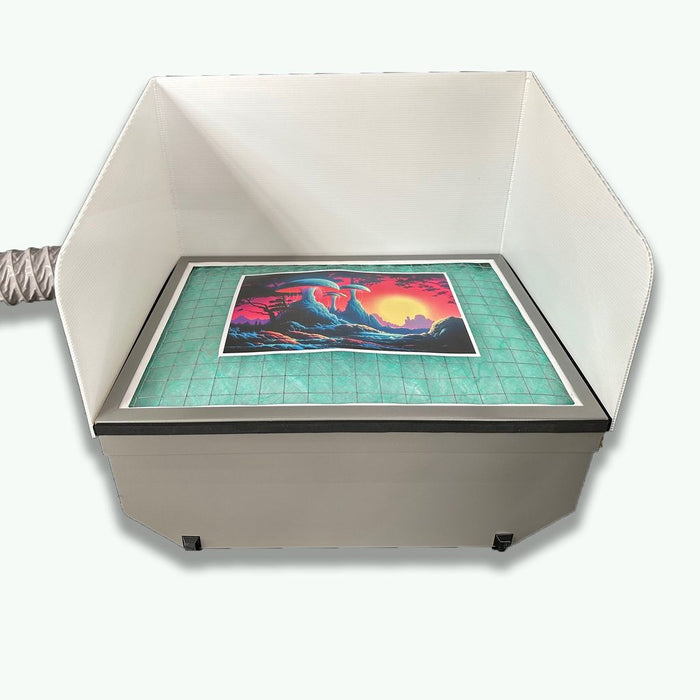

- Horizontal position – For Spray Mount, aerosol lacquers and fixatives etc. applied to artwork placed onto the filter. Accommodates artwork up to A3 size.

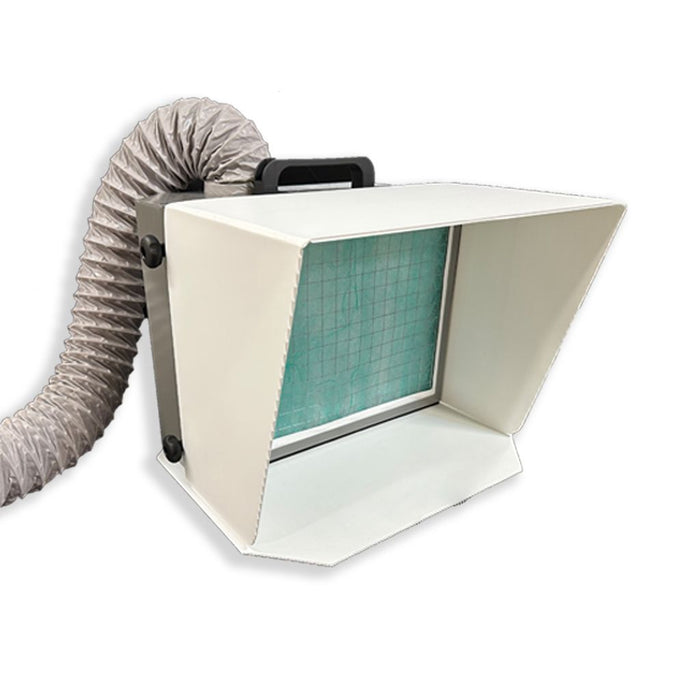

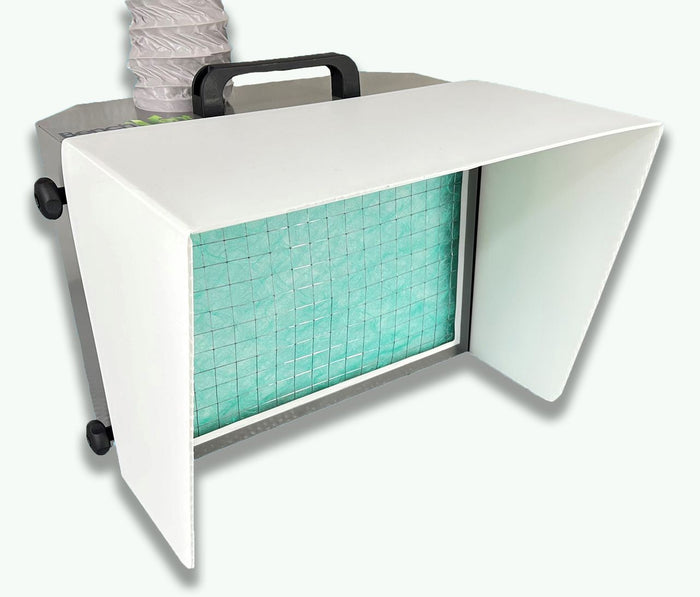

- Vertical position – For model sprays and airbrush use – light grinding particles (non sparking) – solder fume extraction and general solvent and gas extraction.
Filtration Method
The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The dual process of filtration and then extraction to atmosphere via flexi-duct, vastly reduces and/or eliminates operator exposure to potentially hazardous substances.
NOTE: BULKY PRODUCTS INCUR ADDITIONAL FREIGHT CHARGES
Discover the BenchVent A3 Ducted Extraction Unit BV300S-D at Mektronics Australia – your trusted source for quality tools and equipment!
BenchVent Air Extraction Cabinet A300S-D applications include filtration and removal of:
-
Aerosol paints
-
Lacquers
-
Adhesives (glue booth for Spray Mount)
-
Airbrush over-spray
-
Solder fume
-
General solvent vapours and gases
-
Grinding dusts
-
General particulates
-
Powders
-
and more€¦
-

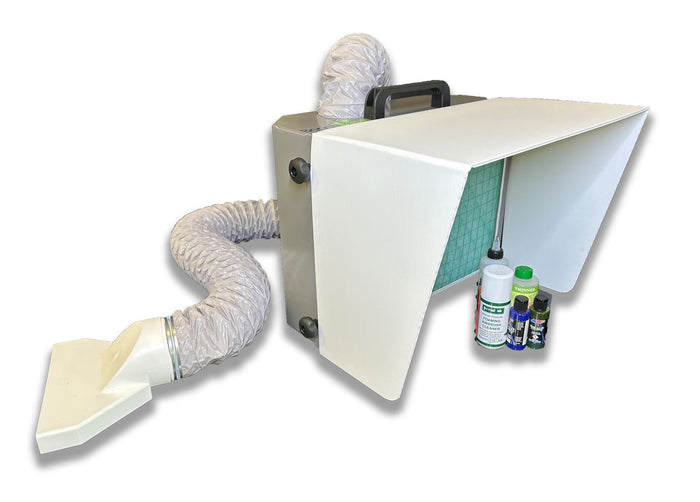

Filter unit with fan and 2mtrs flexi-duct
-
Spray Shield
-
1 x Particulate filter
-
Power Lead
-
Data/Warranty Booklet
-

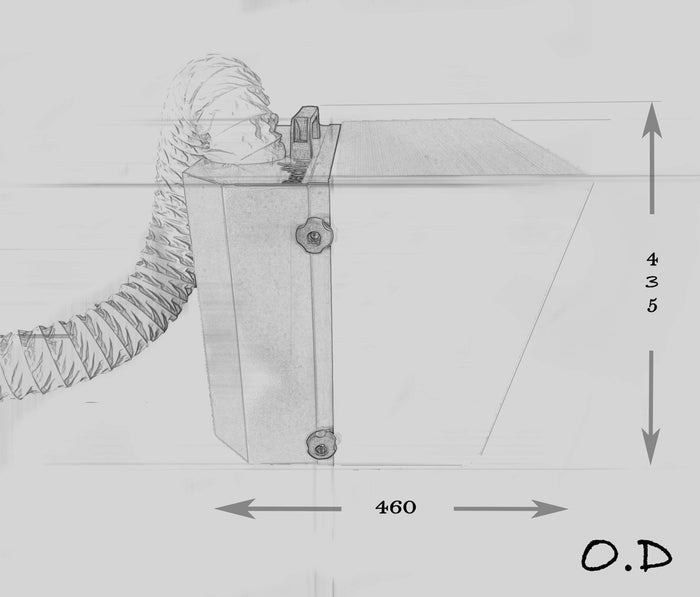

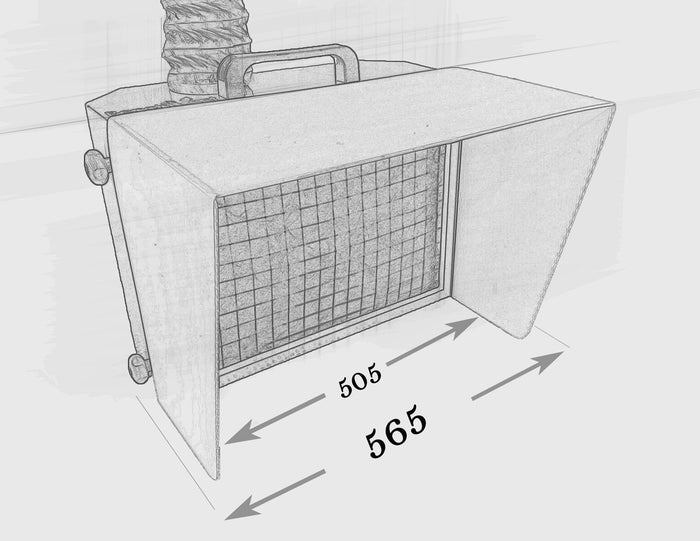

External dimensions (W x H x D): 505 x 390 x 430
-
Steel construction finished in dove grey
-
Plastic replaceable spray/fume shield
-
Particulate filter
-
Centrifugal blower
-
External rotor
-
Brushless motor type
-
UL, VDE and CSA approved
-
Sealed electrical wiring and switch
-
Downstream of filter
-
Flexi-duct 2 metres x 100 mm dia
-
Carry handle
View the datasheet HERE
| Weight |
11 kg |
|---|---|
| Dimensions |
505x390x430 (wxhxd) |
| Description |
Steel construction finished in dove grey €“ plastic replaceable spray/fume shield €“ particulate filter €“ centrifugal blower, external rotor motor type brushless, UL, VDE and CSA approved €“ sealed electrical wiring and switch, downstream of filter. Flexi-duct 2 metres x 100mm dia. €“ carry handle. |
| Air Volume at Free Air |
355 m3/hr |
| Ave. Air Velocity at Filter Face |
0.60m/sec |
| Ave. Air Velocity at Shield Face |
0.55m/sec |
| Fan Motor Spec. |
230V 50Hz 105W or 115V 60Hz 115W |
| Filters |
Particle Filter: IFA3 |
| Noise Level LAeq dB(A |
58 |
| Voltage |
240V, 110V |
