BenchVent A2 Recirculatory Glue Booth BV200S
The BenchVent BV200S is a re-circulatory glue booth which comes complete with spray shield. It is designed for art, graphics, hobbies, modelling and crafts, for use in areas where ducted glue booths are not practical. Users can position it two ways, reclining or upright, to suit the work they are doing:
-

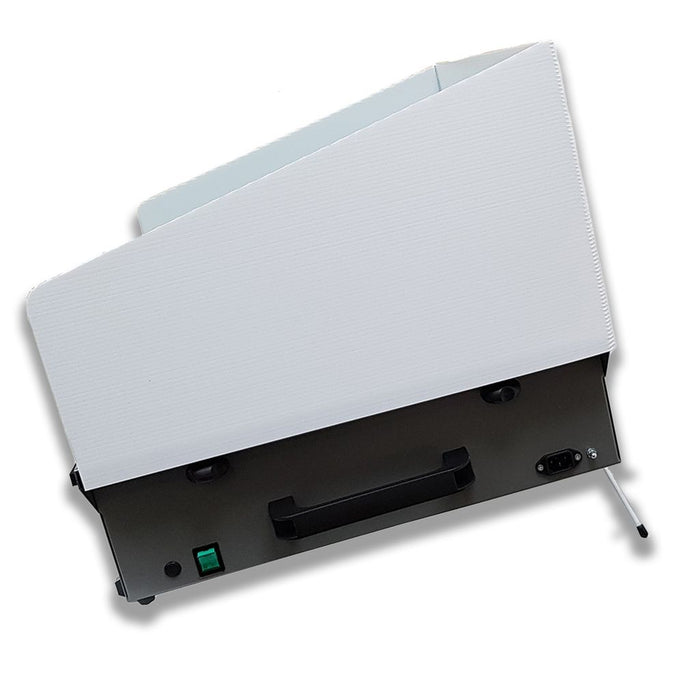

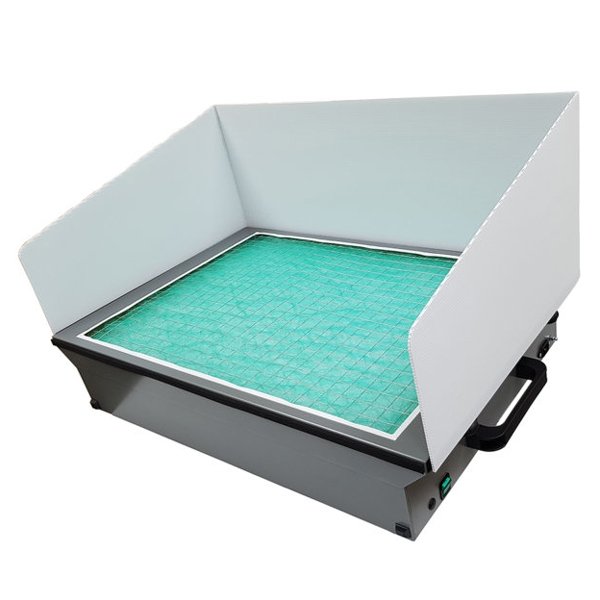

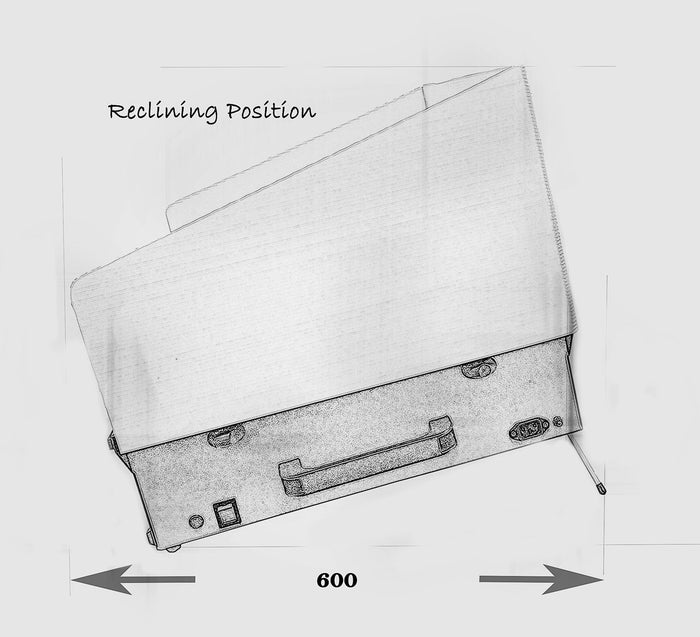

Reclining position (on back-stand) – For Spray Mount, aerosol lacquers and fixatives etc. applied to artwork placed onto the filter. BV300S accommodates artwork up to A3.
-

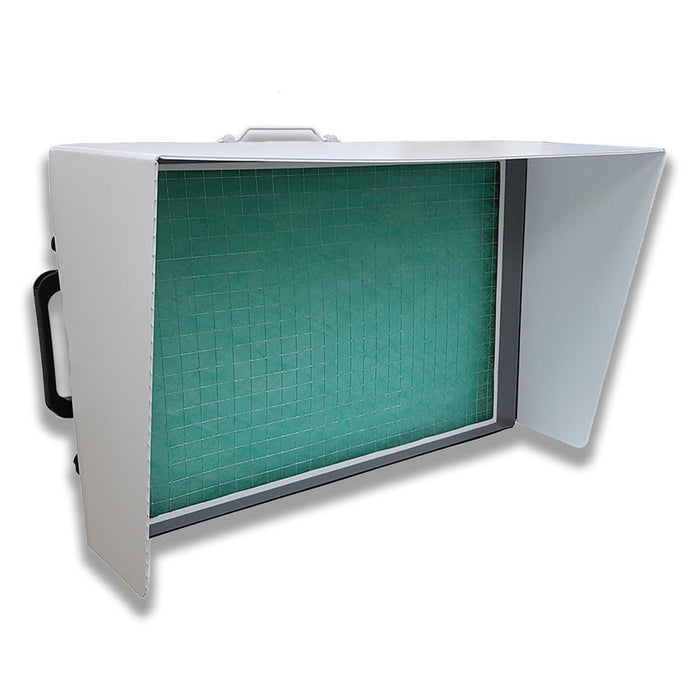

Upright position – For model sprays and airbrush use – light grinding particles – solder fume displacement – general solvent dilution etc.
The BV200S can accommodate artwork up to an A2 size.
NOTE: ADDITIONAL FREIGHT CHARGES APPLY FOR BULKY PRODUCTS
Discover the BenchVent A2 Recirculatory Glue Booth BV200S at Mektronics Australia – your trusted source for quality tools and equipment!
The BV200S are suitable arts and graphics, hobbies, modelling and craft applications. It will extract fumes and filter particles created by:
-
Crafting
-
Gluing
-
Model Making
-
Airbrush Painting
-
Soldering
-
Light grinding
-
Cleaning with solvents
The BV200S is not recommended for continued use, such as in production applications, especially in extremely confined areas where harmful solvent vapours and fumes may accumulate. For this environment, you will need higher specification extraction cabinets such as BV660H-C or BV930H-C
-
Quiet in operation
-
Quick assembly
-
Easy to use – just plug and switch on
-
Portable
-
Steel construction for durability
-
Replaceable plastic spray/fume shield
-
Filter unit with fan(s) and back stand attached
-
Spray Shield
-
1 x Particulate filter
-
1 x Charcoal Impregnated fibre filter
-
Power Lead
-
Data/Warranty Booklet
Download the datasheet HERE
| Weight |
43 kg |
|---|---|
| Dimensions |
720x430x515mm (wxdxh) |
| Description |

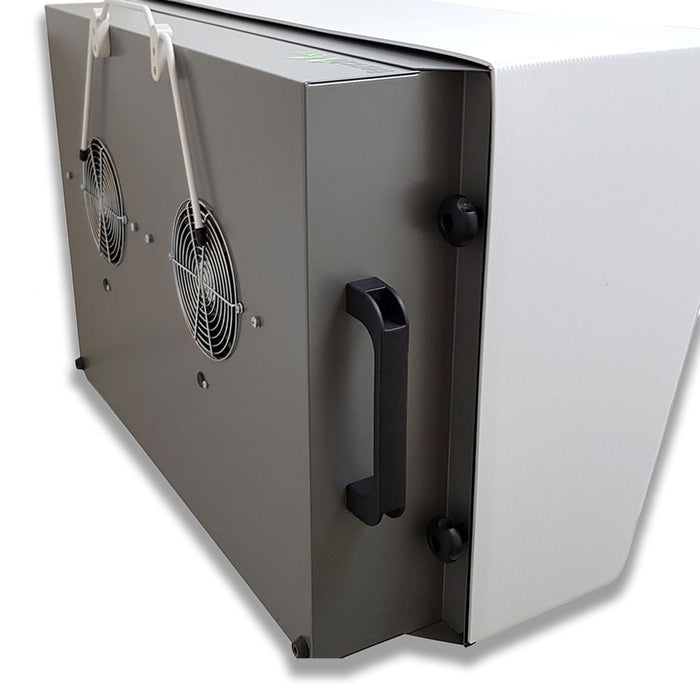

Steel construction finished in grey –– plastic replaceable spray/fume shield – back stand / carry handle – particulate filter – carbon impregnated fibre filter – axial fan, external rotor motor type brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filters. |
| Air Volume at Free Air |
650 m3/hr |
| Ave. Air Velocity at Filter Face |
0.50 m/sec |
| Ave. Air Velocity at Shield Face |
0.35 m/sec |
| Fan Motor Spec |
240V 50Hz 80W, 115V 60Hz 90W |
| Filters |
Particle Filter: IFA2 – Charcoal Filter: CHA2 – Filter Kit: FKA2 |
| Noise Level LAeq dB(A) |
61 db(A) |
