Atten MS900 4 in 1 Rework Station
Image for Illustrative Purposes Only
Atten Logo

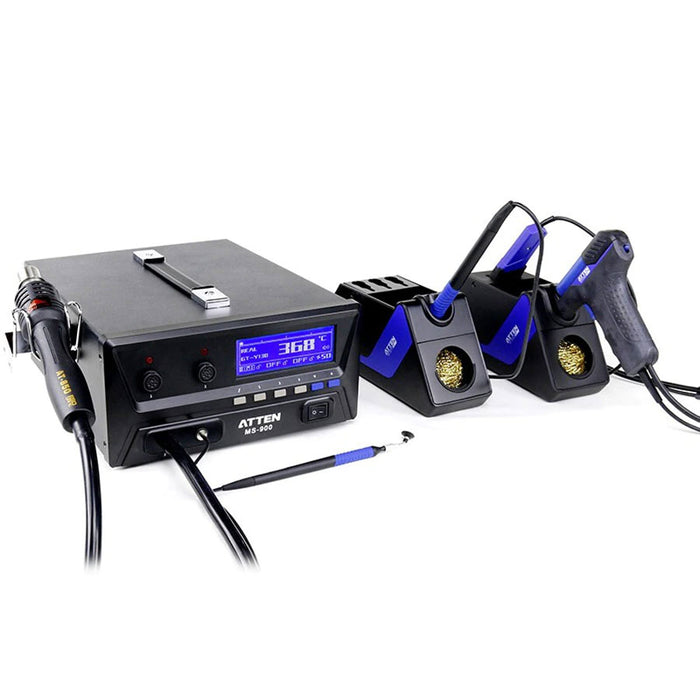

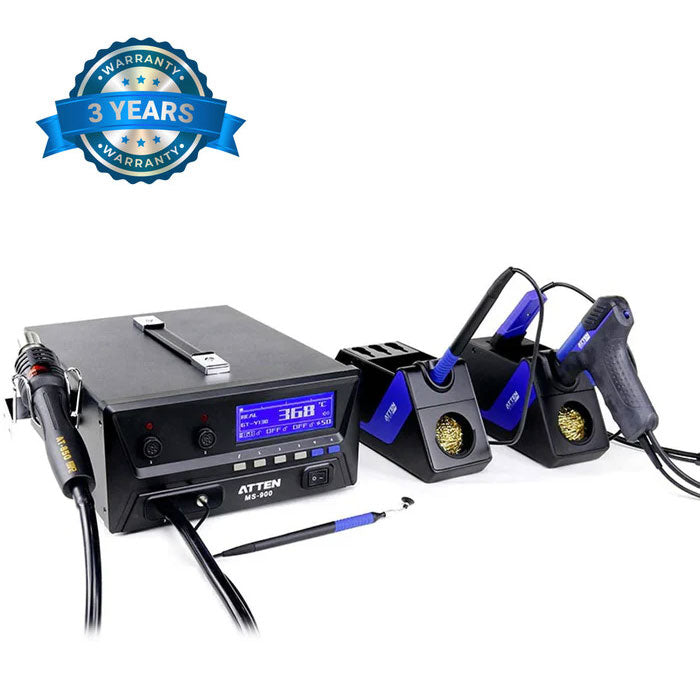

Atten MS900 4 in 1 Rework Station

SKU: ATTMS900

MS900 STATION

$1,750.43

EX. GST
$1,925.47
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

Features
Other Features
Includes
Specifications
Resources
Shipping & Delivery

  • High accuracy MCU control synchronously detect, 3 channels can work independently.

  • Super power. Max power output 900W.

  • One station can solve multiple soldering/desoldering and rework task.

  • Large size LCD screen. All parameters and messages can be shown graphically.

  • Various soldering tools can be identified automatically and loading of corresponding parameters.

  • Temperature can be adjusted automatically. Software control it more accurate and convenient.

  • Fault display and alarm functions available.

  • Functions of standby, buzzer ringing, temperature lock and factory restore are available.

  • Support communication interface. Parameters can be set and controlled by computer.

  • Vacuum pen is added to pick up small components.

NOTE: TIPS AVAILABLE TO PURCHASE HERE

Discover the Atten MS900 4 in 1 Rework Station at Mektronics Australia – your trusted source for quality tools and equipment!

  • Hot air gun, soldering iron, desoldering gun, electric tweezers and suction pen in one station

  • Support 3 channels working. Tools will be identified automatically and loading of corresponding parameters

  • Beep alarm function

  • ℃/℉ available

  • Temperature calibration

  • Auto-sleep function, sleep time setting

  • PC Software Control System

  • Software interface included 4 functions modules

  • Setting parameters of each channel by PC

  • Real-time curve display

  • Easy to change replacements

  • MS-900 main unit: 1pc

  • Hot air gun: 1pc

  • Iron stand: 2pcs

  • Soldering iron: 1pc

  • Electronic tweezers: 1pc

  • Desoldering gun: 1pc

  • Suction pen: 1pc

  • AC cord: 1pc

  • Blow-dryer bracket: 1pc

  • Screw: 2pc

  • Suction disk: 11 pc

  • Suction nozzle: 3pc

  • Rubber washer: 2pc

  • Desoldering Nozzle: 3pc

  • Nozzle: 4pc

  • Desoldering gun front plug: 2pc

  • Desoldering gun O-ring 6*1.5: 2pc

  • Desoldering gun O-rin: 2pc

  • Desoldering tube liner: 1pc

  • Filter cotton: 10pc

  • Dust-absorbing sponge: 10pc

  • Spring pin (cleaning pin): 1 pc

  • Anti-ironing mat: 1pc

  • User manual: 1pc

Model MS-900
Power consumption 900W (MAX)
Handle

AP-552B

Hot air gun

GT-Y130

Soldering iron

GT-X150

Desoldering gun

GT-N100

Electric

tweezers
Power Heating element 550W, air pump 25W 130W Heating element 150W, vacuum pump 15W 100W
Temperature range 150-500℃/302-932℉
Standby temperature No standby 200℃ 300℃ 200℃
Standby time NA 1-120 minutes (0 means standby deactivated)
Air flow 23L/min(Max) 5L/min (Min) / / /
Noise <52dB(A) / / /
Temperature calibration range ±50℃/±90℉
Lock setting Available
Temperature stability ±5℃ ±2℃ ±2℃ ±2℃
Tip to ground resistance <2Ω
Tip to ground potential <2mV
Working conditions Temperature 0-40°C, relative humidity <80%
Storage conditions Temperature -20-80°C, relative humidity <80%
Dimensions 31*30.9*14.6cm
Net weight 8.27
