Atten GT-6150P Single Channel Unleaded Soldering Station
SKU: ATTGT-6150P
GT-6150P STATION
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery

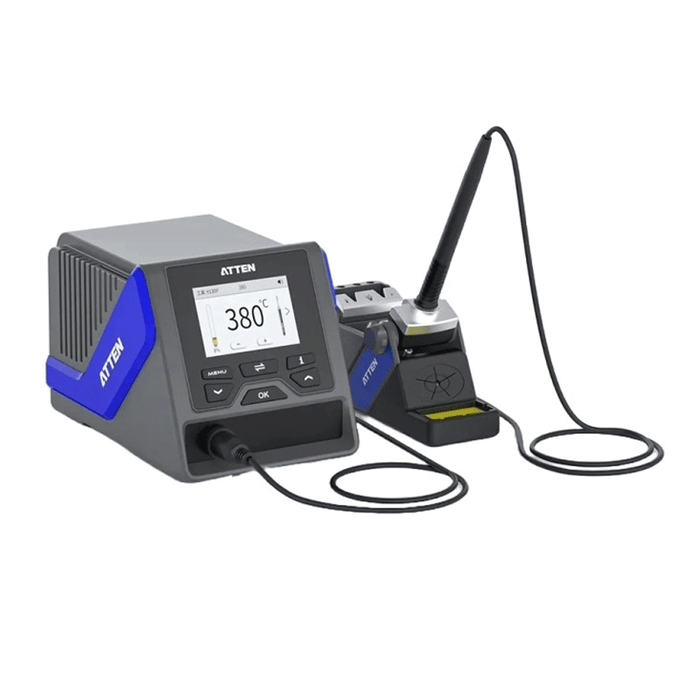

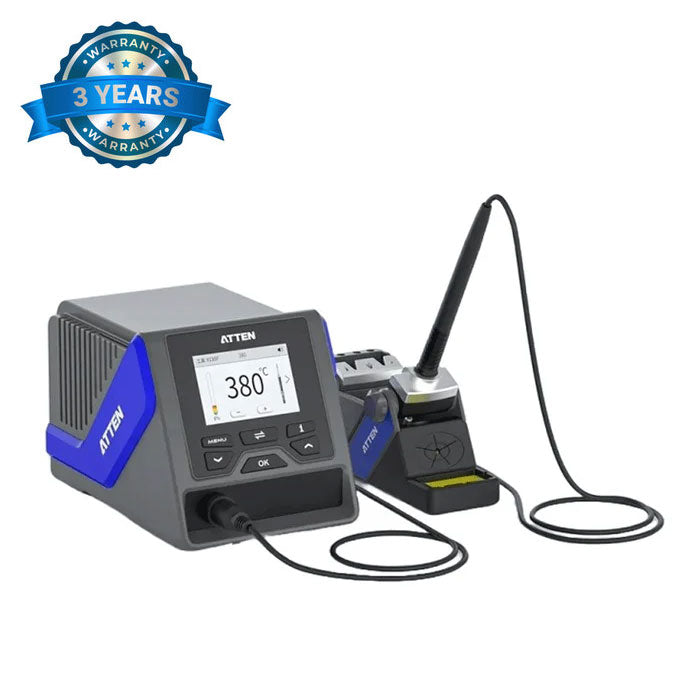

Atten GT-6150P Single Channel Unleaded Soldering Station
The ATTEN GT-6150P is a high-performance intelligent digital soldering station designed for precision soldering and professional electronics work. Equipped with a powerful 150W heating element, it offers a wide adjustable temperature range from 150 °C to 480 °C, ensuring fast heat-up and stable temperature control for demanding applications.
The lightweight soldering iron provides excellent comfort during extended work sessions, while maintaining accurate and consistent temperature stability of ±2 °C for precise soldering results.
The station features a clear, user-friendly digital display and includes PC software for advanced control and configuration. To help extend the lifespan of the soldering tip, the station automatically reduces the temperature to 150 °C during idle periods.
For added convenience, three preset temperature profiles can be individually programmed and quickly recalled using dedicated selection buttons, allowing fast switching between common working temperatures.
The GT-6150P also includes a separate soldering iron holder, and its powerful heating system ensures rapid tip heating and excellent thermal recovery, making it ideal for both professional technicians and advanced hobbyists.
Discover the Atten GT-6150P Single Channel Unleaded Soldering Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
150W high-power soldering station for fast heat-up and stable performance
-
Temperature range: 150 °C – 480 °C
-
Ultra-fast heating: reaches 350 °C in approx. 5 seconds
-
High temperature stability: ±2 °C for precise soldering
-
3 programmable temperature presets for quick selection
-
Large multifunction LCD display with graphic status information
-
PC software support for advanced configuration and control
-
Automatic soldering tool detection with intelligent parameter adjustment
-
Internally heated soldering tip for efficient heat transfer
-
Fine temperature adjustment in 1 °C or 5 °C increments
-
Adjustable sleep mode: temperature reduces to 150 °C after inactivity (1–120 min)
-
Temperature lock function to prevent accidental changes
-
Calibration adjustment: ±50 °C
-
Operational readiness indicator with bar display
-
Flexible soldering iron cable for comfortable use
-
Adjustable soldering iron holder for improved workspace setup
-
High-quality silver alloy heating element for durability and fast response
-
ESD-safe design with isolated low-voltage heating system
-
Built-in fault warning system
-
Intelligent activity detection (automatic work/idle recognition)
-
1x GT-6150p soldering Host
-
1x Atten S-19 soldering iron holder
-
1x Atten GT-Y130P soldering handle
-
1xconnection line
-
1xgrounding wire
-
1xpower cord
| Power output | 150 watts |
| Temperature range | 150 Celsius degree- 480 Celsius degree |
| Temperature offset range | +-50 Celsius degree |
| Temperature setting | 5 digits (standard) / 1 digit (fine-tuning) |
| Temperature stability | 2 Celsius degree |
| Heating element | with silver alloy |
| ESD protection | Yes |
| Earthing resistance | < 2 Ohm |
| Earth potential | < 2 mV |
| Dimensions | 168 x 110 x 95mm |
| Weight | 2.68 kg |
| Channel | 1 |
| Power supply | 230 V / 50 Hz |
| RoHS | Compliant |
