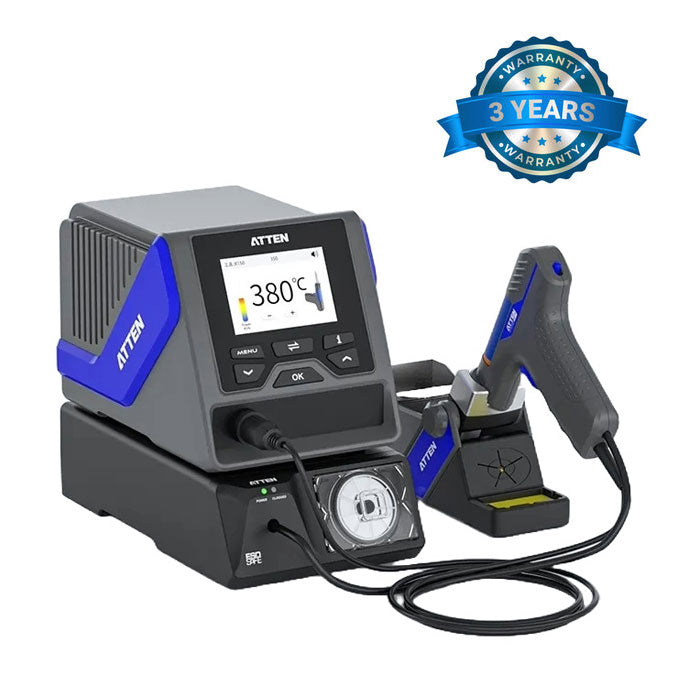

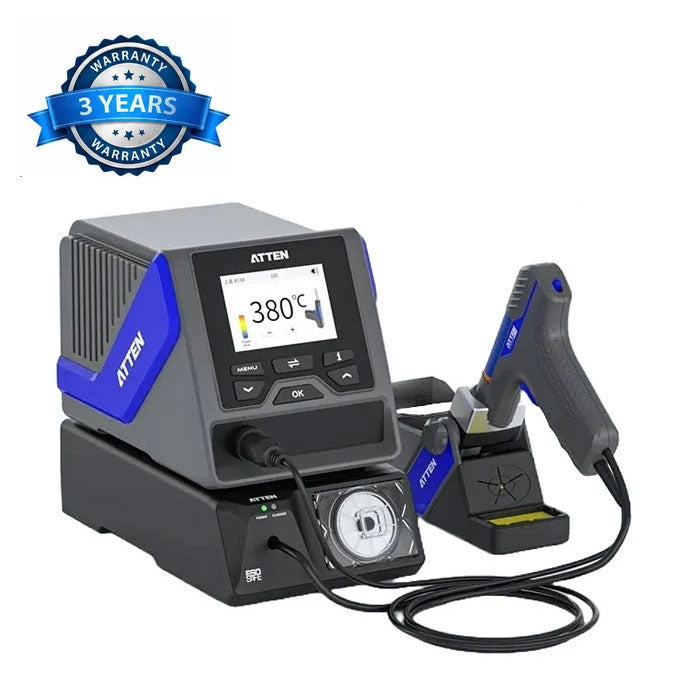

Atten GT-5150P Single Channel Desoldering station with GT-X150P Desoldering Gun
SKU: ATTGT-5150P
GT-5150P
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery
Atten GT-5150P Single Channel Desoldering station with GT-X150P Desoldering Gun
The Atten GT-5150P Desoldering Station is an intelligent digital soldering station with a 150 W heating element for temperatures from 150 - 480 Celsius Degree. With the supplied desoldering gun with suction function, you can carry out all desoldering work easily and cleanly.
The Atten GT-5150P soldering station has a high-quality heating element with 150 watts of power with a built-in vacuum suction pump and is supplied with suitable PC software for control. The GT-5150P is equipped with a user-friendly display. The soldering station automatically lowers the temperature to 150Celsius Degree when not in use. Three different desoldering temperatures can be easily programmed individually and can be called up directly by pressing the corresponding selection button.
The desoldering station is supplied with a separate soldering holder. With 150 watts of power, the soldering tip heats up very quickly, and the high temperature stability (2 Celsius Degree) enables very precise work.
Discover the Atten GT-5150P Single Channel Desoldering station with GT-X150P Desoldering Gun at Mektronics Australia – your trusted source for quality tools and equipment!
-
Built-in vacuum suction pump.
-
The maximum output is 150 W.
-
Can automatically recognise the connected soldering tools and upload the corresponding parameters.
-
Software for control via a PC
-
compatible with various types of soldering tools
-
Intuitive menu navigation
-
Display of parameter data and information in the form of a graphic on a large display
-
3 adjustable temperatures available at the touch of a button
-
Very fast heat-up: from room temperature to 350 Celsius Degree in only approx. 7 s
-
High-contrast multifunction LC display for status and programming display
-
Readiness for operation checked by bar display
-
flexible connection cable with plug-in system
-
Temperature freely selectable between 150 Celsius degree. and 480 Celsius Degree.
-
Precise temperature calibration possible, calibration range + - 50 Celsius degree.
-
Temperature stability: +- 2 Celsius degree. (without load / MCU-controlled temperature calibration)
-
Temperature setting possible in 5-degree or 1-degree increments
-
Automatic, adjustable temperature reduction during soldering breaks to 150 Celsius degree. (1-120 min)
-
Protection against temperature adjustment
-
ESD-safe design, low-voltage heating completely separated from the power supply
-
Freely positionable holder
-
Intelligent detection of working or non-working status.
-
1x GT-510 negative pressure generator
-
1x S-21 desoldering iron holder
-
1x GT-X150P desoldering gun
-
1x T151-0.8 nozzle
-
1x T151-1.0 nozzle
-
1x T151-1.3 nozzle
-
1x T151-1.6 nozzle
-
2x power cord
-
1x connection line
-
1x grounding wire
-
3x solder suction
-
2x cleaning pin
-
1x twist drill
-
2x O-ring seal
-
10x filter (cotton)
-
10x filter (paper)
-
1x inner pipe (carbon spring)
-
2x pipe front holder
-
1x open-end wrench
-
1x cleaning pin set
-
Power output: 150 watts
-
Temperature range: 150 Celsius Degree - 480 Celsius Degree
-
Temperature offset range: +-50Celsius Degree
-
Temperature setting: 5 digits (standard) / 1 digit (fine-tuning)
-
Temperature stability: 2 Celsius Degree
-
Heating element: with silver alloy
-
ESD protection: Yes
-
Earthing resistance: < 2 Ohm
-
Earth potential: < 2 mV
-
Weight: 5.68 kg
-
Channel: 1
-
Power supply: 230 V / 50 Hz
-
RoHS: Compliant
