Atten AT8502D 2 in 1 Rework Station
SKU: ATTAT8502D
AT8502D STATION
DESCRIPTION
Features
Includes
Optional Accessories
Specifications
Shipping & Delivery

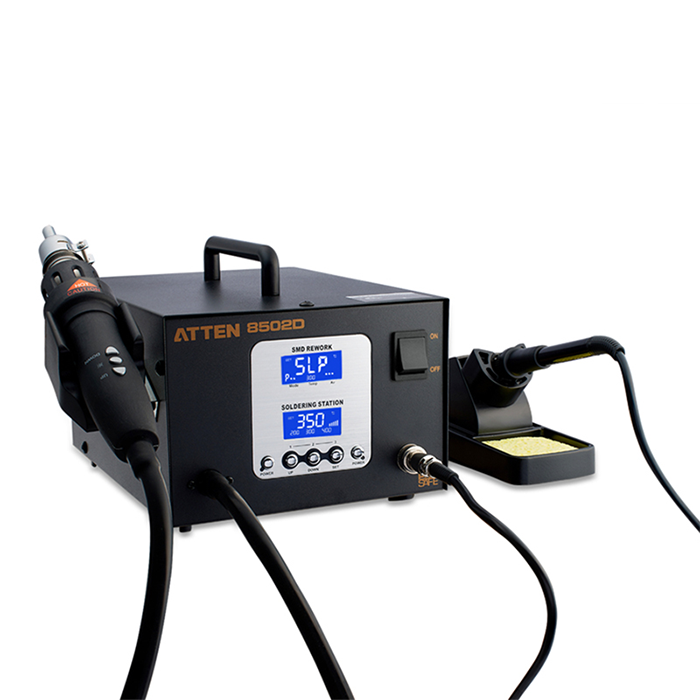

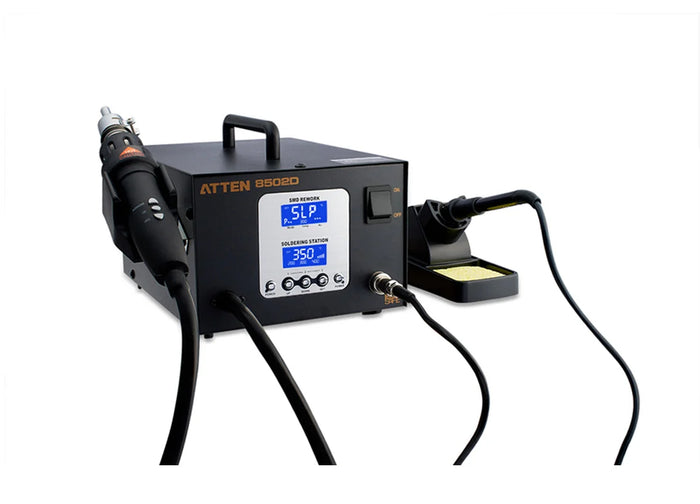

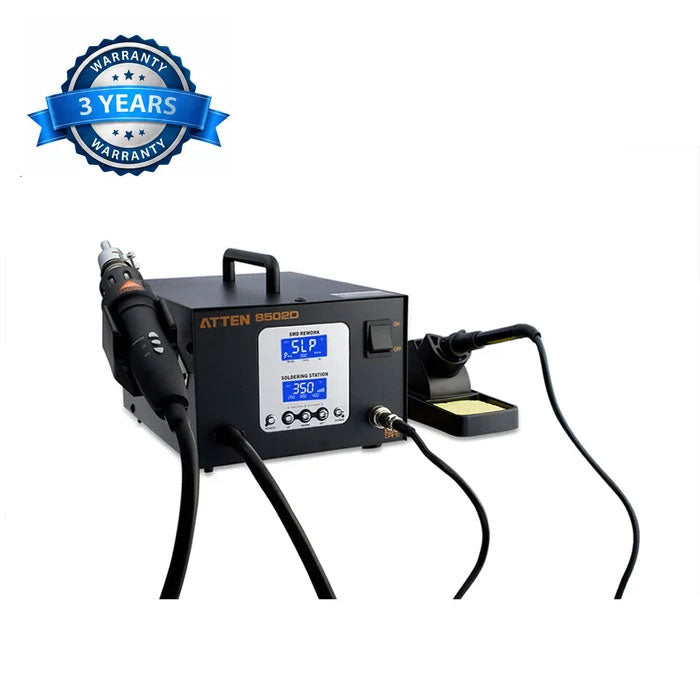

Atten AT8502D 2 in 1 Rework Station
AT8502D is an intelligent lead-free rework station, which combines hot air rework station and soldering station.
It's especially suitable for R&D, production, lab of scientific research and so on. It's easy to operate, user-friendly and greatly space-saving.
-
MCU and PID algorithm controlled temperature be more accurate.
-
Digital temperature calibration and switchable temperature units make it versatile.
-
Diaphragm pump with high pressure make it suitable for various nozzles.
-
Intelligence cooling system and deferred power-off function to extend handpiece lifespan.
-
Patented heater for obtaining fast heating-up and extending lifespan.
-
Automatic standby function to save more energy.
Discover the Atten AT8502D 2 in 1 Rework Station at Mektronics Australia – your trusted source for quality tools and equipment!
-
Double LCD screen display, visualized operation.
-
Simple and easy temperature setting operation.
-
3 keys of shortcut temperature & air flow.
-
Auto-sleep, auto-standby function, energy saving.
-
Temperature calibration range ±50℃.
-
Hot air gun handle can be installed on left or right side.
-
Temperature and hot air volume can be set and switch by front panel buttons and hot air station handle knob.
-
Easy and quick to switch between cold air and hot air.
-
Can store and call the commonly used temperature and air volume.
-
Below 100℃ the device will standby.
-
Error/fault indication "H-E", "S-E".
-
Hot air gun handle
-
Soldering iron
-
Hot air gun holder
-
Soldering iron holder
-
4 x nozzles
-
Power Cord
-
User Manual
|
Model: |
AT8502D |
|
|
Handle |
Soldering Iron |
Hot Air Gun |
|
Voltage |
110VAC/220VAC ±10% 50Hz/60Hz optional |
|
|
Total power |
700W |
|
|
Power |
50W |
550W |
|
Temperature range |
200℃~480℃/ 392℉~896℉ |
100℃~500℃/212℉~932℉ |
|
Temperature calibration range |
±50℃ |
|
|
Temperature unit |
℃/ ℉ |
|
|
Air flow grades |
020 ~ 100 grades |
|
|
Air volume |
23L/min (max) |
|
|
Temperature adjustment |
Long press to adjust fast; Short press to adjust 1 unit at a time. |
|
|
Auto-standby function |
Available |
|
|
Auto-sleep function |
Available |
|
|
Shortcut temperature |
3 sets |
|
|
Working conditions |
Temperature 0-40°C, relative humidity <80% |
|
|
Storage conditions |
Temperature -20-80°C, relative humidity <80% |
|
|
Dimension |
35.5*33*20cm |
|
|
Weight |
5.8KG |
|
