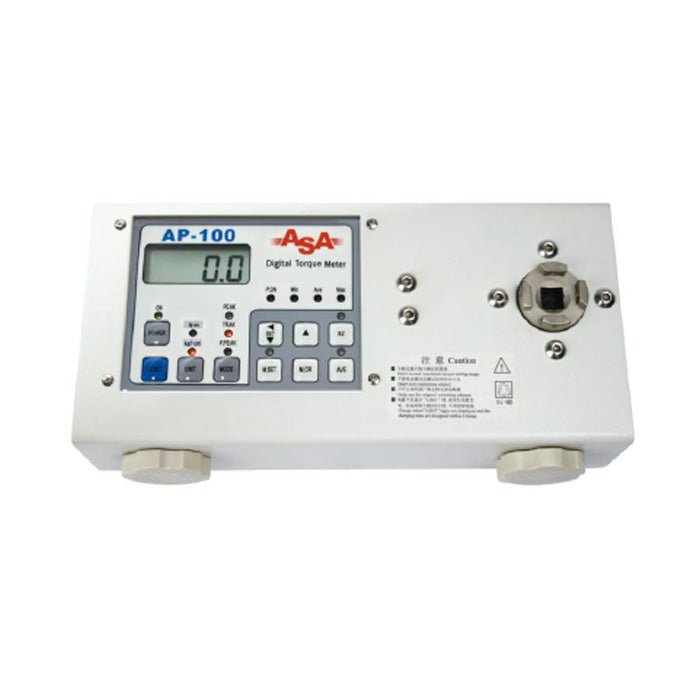

ASA AP-100 Digital Torque Meter 0.15 - 10 Nm
SKU: ASAAP100
AP100
Features
Specifications
Shipping & Delivery
Wide measuring range, high accuracy and the model are complete
Attached the measuring joint can be run clockwise or counter-clockwise to measure the o/p torque with usual bit and the measured value will be cleared in setting time automatically.
There are two measuring units: kgf.cm/N.m and three measuring modes: peak, track, F.Peak for easy choice to operate
It can calculate and display the maximum and average torque value.
Built-in an o/p terminal which can be connected to the computer for recalling, editing and calculating the measured datum.
The meter is attached rechargeable batteries, small volume and light weight, it is convenient to use.
Discover the ASA AP-100 Digital Torque Meter 0.15 - 10 Nm at Mektronics Australia – your trusted source for quality tools and equipment!
-
Standard Measuring Range (kgf.cm): 1.5~100.00
-
Standard Measuring Range (N.m): 0.15~10.00
-
Standard Measuring Range (lbf.in): 1.5~90.0
-
Accuracy: ±0.5% (199 digit or less ± 1 digit)
-
Display: LCD digital display
-
Measuring direction: Clockwise, counter clockwise
-
Measuring Mode PEAK: lock display when the torque reaches peak value
-
Measuring Mode TRACK: display changes along with the current torque value
-
Measuring Mode F.PEAK: lock display when the torque reaches first peak value
-
Power Source: Ni-MH chargeable battery 1.2Vx5 cells 700mAh / 300 time or more charge life
-
Charging Time: 6 hours
-
Working Time: 8 hours
-
Input Voltage: 8 VDC
-
AC Adaptor: Input: AC100~240V, 60/50Hz Output: DC7.3~8V 0.5A
-
Socket Size: 20mm
-
Dimensions: 230 (L) x 120 (W) x 60 (H) mm
-
Caution: Does not use for measuring impact, semi-auto shut off type of electric and pneumatic tools. The max measuring range can not over the standard measuring range.
