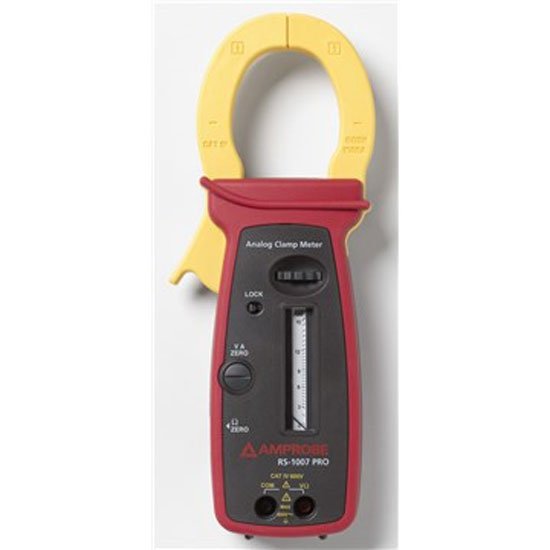

Amprobe RS-1007 PRO CAT IV 1000A Analog Clamp Meter
SKU: FLURS-1007PRO
RS-1007PRO
About
Shipping & Delivery
Amprobe RS-1007 PRO CAT IV 1000A Analog Clamp Meter
Amprobe RS-1007 PRO CAT IV 1000A Analog Clamp Meter Overview
CLAMP METER ANALOG CAT IV 600V-1000A, 2 INCH JAW
Amprobe RS-1007 PRO CAT IV 1000A Analog Clamp Meter Features
- Measures AC current up to 1000A
- Voltage up to 600 VAC
- Resistance and continuity
- Pointer lock - data hold
- Easy to use rotary scale
- Measures volts and amps, no batteries required
- Works in temperatures from 5°F to 122°F
- Operates on 50 and 60 Hz frequency
- CAT IV, 600V safety rated
- Includes test leads, battery (installed, for resistance measurement only), users manual, carrying case
Amprobe RS-1007 PRO CAT IV 1000A Analog Clamp Meter Specifications
| FEATURE | RS-3 PRO | RS-1007 PRO |
| AC Voltage | 150 V, 300 V, 600 V | |
| AC Current | 6 A, 15 A, 40 A, 100 A, 300 A | 15 A, 40 A, 100 A, 300 A, 1000 A |
| Resistance | 1000 O | |
| Continuity | • | |
| Accommodates conductors | up to 1.64" (41 mm) in diameter | up to 1.88" (47 mm) in diameter |
| Specifications | |
| Display: | Analog scales with clamping needle |
| Jaw opening/conductor diameter: | 47mm (1.88") max |
| Power supply volt/amp: | Powered by circuit under test 1.5 V AAA battery (ANSI/NEDA-24A, IEC LR03) |
| Safety LVD: | Category IV – 600 Volts AC meets EN60101-1:2001; EN61010-2-032(2002; pollution degree : II; class 2 |
| AC Voltage (50/60 Hz) range: | 150 / 300 / 600 Vrms |
| Accuracy: | ± 3 % of full scale |
| Input impedance: | 1.5 MO |
| AC Amp (50/60 Hz) range: | 6 / 15 / 40 / 100 /600 Amps |
| Ohms range: | 1000 ohms; 25 Ohms mid-scale |
Discover the Amprobe RS-1007 PRO CAT IV 1000A Analog Clamp Meter at Mektronics Australia – your trusted source for quality tools and equipment!
