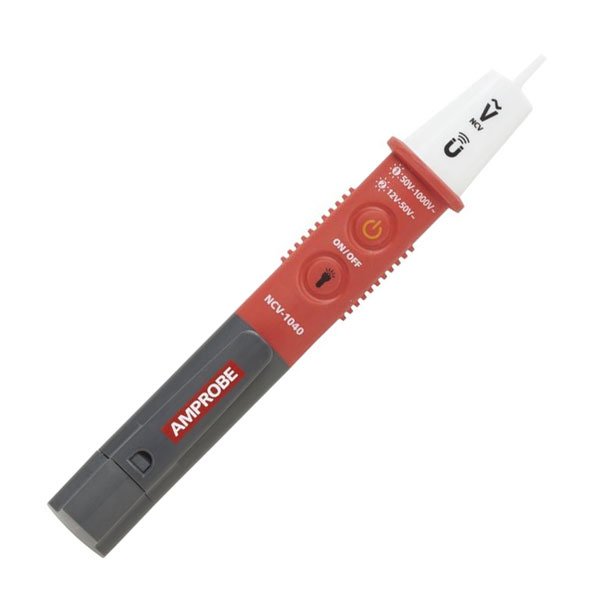

Amprobe NCV-1040 Non-Contact Voltage Probe
SKU: FLUNCV-1040
NCV-1040
DESCRIPTION
Features
Inclusions
Resources
Specifications
Shipping & Delivery
Amprobe NCV-1040 Non-Contact Voltage Probe
The Amprobe NCV-1040 Non-Contact Voltage (NCV) tester provides maximum safety and convenience for detecting AC voltage without interrupting electrical systems. Designed to conveniently fit in your shirt pocket, the NCV-1040 tester performs in indoor and outdoor settings. Safety tested to the highest category measurement, CAT IV 1000 V, as well as IP65 water and dust resistant, the NCV-1040 is fit for the toughest industrial applications.
Discover the Amprobe NCV-1040 Non-Contact Voltage Probe at Mektronics Australia – your trusted source for quality tools and equipment!
-
Detects the presence of AC voltage in cables, circuit breakers, wall sockets, junction boxes, fuses, extension cords and more
-
Tests voltage through wire insulation
-
Identifies cable breaks in wires, cords and lightning systems connected in series
-
Identifies polarity (line vs. neutral) of receptacles and cables
-
Safely tests voltage in non-contact way
-
Safety CAT IV 1000 V rated for wide range of applications
-
IP65 rated (water and dust resistant) for indoor and outdoor use
-
Magnetic solenoid detection to diagnose electromagnets and relays
-
Batteries (installed)
-
User Manual
|
Operating Voltage Range |
12-50 Vac, 50-1000 Vac, 50-400 Hz |
|
Voltage Indication |
Bright red LED and buzzer |
|
Voltage Detection |
Illuminates at approximately 10 mm (0.39 in) distance from a wire carrying 120 Vac |
|
Magnetic Field Indication |
Yellow LED |
|
Detection of Magnetic Field |
> 2.5 mT |
|
Temperature Range |
32 °F to 104 °F (0 °C to 40 °C), ≤ 80% RH |
|
Storage Conditions |
14 °F to 104 °F (-10 °C to 40 °C), ≤ 85% RH |
|
Operating Altitude |
≤ 6561 ft (2000 m) |
|
Power Supply |
2 1.5 V LR03 AAA batteries |
|
Duty Cycle |
Continuous |
|
Current Consumption |
Approximately 80 mA |
|
Dimensions (L x W x H) |
156.2 x 23.5 x 27.5 mm (6.14 x 0.92 x 1.08 in) |
|
Weight (with batteries installed) |
Approx. 62 g (0.136 lb) |
|
Safety Compliance |
IEC 61010-1 3rd Ed., UL61010-1 2nd Ed. and CAN/CSA-C22.2 No. 61010-1-04 +Update No. 1:2008 to CAT IV 1000 V, Pollution degree 2, IP65 |
|
EMC Compliance |
IEC 61326-1 |
