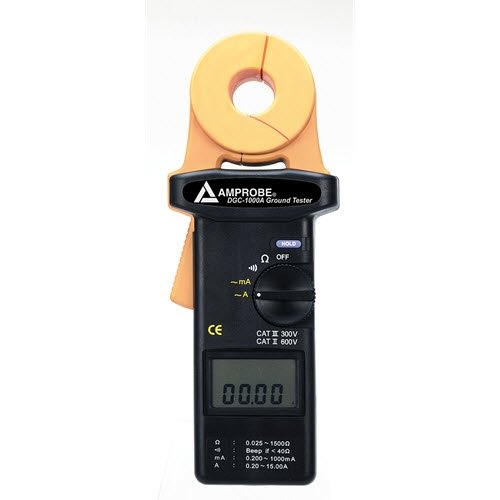

Amprobe DGC-1000A Clamp Ground Resistance Tester

SKU: FLUDGC-1000A

DGC-1000A

$4,665.00

EX. GST
$5,131.50 including GST
Out of Stock: Please Contact Us For lead Time

own it from $10 a week with Group 2 Copy Created with Sketch.

Overview
Features
Includes
Specifications
Shipping & Delivery

User-friendly and accurate. Think safety and Amprobe’s DGC-1000A ground resistance tester second. Use the on-board memory and data logging features to make your work more efficient.

  • Accurate ground resistance measurement from 0.025 to 1500 Ohms
  • True-rms current measurement including leakage current
  • Accurate readings regardless of power quality in less than 10 seconds
  • Continuity beep if the resistance is lower than 40.00 Ohms
  • Simple and easy to use, no test leads or auxiliary electrodes necessary
  • Data logging capability - 116 records
  • Individual data point recording
  • User selectable high & low ohm audible alarms
  • Auto power off (can be disabled)
  • Low battery indicator
  • Large LCD display
Model Name Description
DGC-1000A
  • Accurate ground resistance measurement from 0.025 to 1500 Ohms
  • TRMS current measurement including leakage current
  • Accurate readings regardless of power quality in less than 10 seconds
  • Continuity beep if the resistance is lower than 40.00 Ohms
Ground Resistance:     0.025 - 0.250 Ohms (± 1.5% ± 0.05 Ohms, resolution 0.002 Ohms)
Ground Resistance:     0.250 - 1.000 Ohms (± 1.5% ± 0.05 Ohms, resolution 0.02 Ohms)
Ground Resistance:     1.001 - 9.999 Ohms (± 1.5% ± 0.1 Ohms, resolution 0.02 Ohms)
Ground Resistance:     10.00 - 50.00 Ohms (± 2.0% ± 0.3 Ohms, resolution 0.04 Ohms)
Ground Resistance:     10.01 - 99.99 Ohms (± 2.0% ± 0.5 Ohms, resolution 0.04 Ohms)
Ground Resistance:     100.0 - 200.0 Ohms (± 3.0% ± 1.0 Ohms, resolution 0.4 Ohms)
Ground Resistance:     200.1 - 400.0 Ohms (± 5.0% ± 5 Ohms, resolution 2 Ohms)
Ground Resistance:     400.0 - 600.0 Ohms (± 10% ± 10 Ohms, resolution 5 Ohms)
Ground Resistance:     600.1 - 1500 Ohms (± 20%, resolution 20 Ohms)
TRMS Ground / Leakage Current:     0.200 - 1.000 mA (± 2.0% ± 0.05 mA)
TRMS Ground / Leakage Current:     1.00 - 10.00 mA (± 2.0% ± 0.03 mA)
TRMS Ground / Leakage Current:     10.0 - 100.0 mA (± 2.0% ± 0.3 mA)
TRMS Ground / Leakage Current:     100 - 1000 mA (± 2.0% ± 3 mA)
TRMS Ground / Leakage Current     0.200 – 4.000 A (± 2.0% ± 0.03 A)
TRMS Ground / Leakage Current:     4.00 – 30.00 A (± 3.0% ± 0.03 A)
