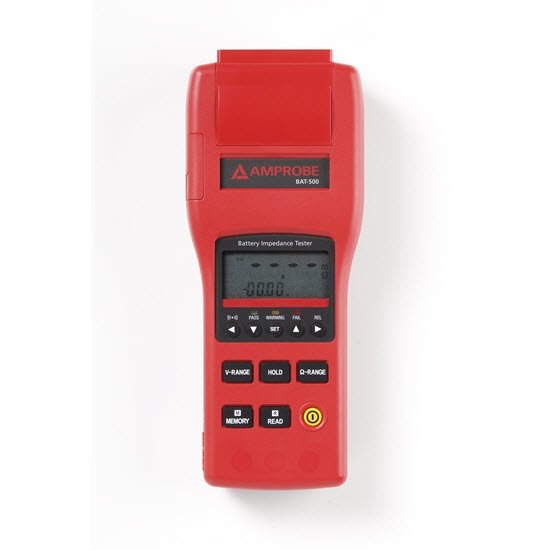

Amprobe BAT-500 Battery Impedance Tester up to 40V

SKU: FLUBAT-500

BAT-500

$1,461.62

EX. GST
$1,607.78 including GST
Please contact us for lead time

own it from $10 a week with Group 2 Copy Created with Sketch.

Overview
Features
Includes
Specifications
Shipping & Delivery

BAT-500 Battery Tester quickly and accurately tests batteries without taking the batteries off-line. This Battery Tester features a comparator function with pass/fail indication, and speed testing of batteries up to 500Ah. Amprobe BAT-500 Battery Tester, compact and light weight, simultaneously measures battery resistance and voltage up to 40V.

  • Tests battery Impedance to calculate its true life
  • Works with most batteries, compact storage batteries, alkaline and lead-acid up to 500Ah
  • Resistance measurement up to 40 ohms, and voltage up to 40V
  • Tests are performed without shutting down a battery
  • Simultaneously measure battery resistance and voltage
  • Comparator function to quickly access conditions as pass, warning, or fail
  • 99 memory locations to store results with read function
  • Compact and lightweight
  • RS232 PC interface to download testing results to a PC for trending/life cycle analysis
  • Instruction manual, batteries, test probe, software, RS232 cable
Model Name Description
BAT-500
  • Tests battery impedance to calculate its true life
  • Works with most batteries, compact storage batteries, alkaline and lead-acid up to 500Ah
  • Resistance measurement up to 40 ohms, and voltage up to 40V

Included Accessories:   Users manual, software manual, batteries, RS232C9 to USB Bridge), cable, software CD, kelvin clips
Battery Types Tested:     Compact storage batteries, Alkaline, Nickel-Metal Hydride (NiMH), Nickel-Cadmium (NiCd), Lithium-ion (Li-ion) and lead-acid batteries
Battery Capacity:     0 to 500AH
Impedance Measurement Range:     40mΩ, 400mΩ, 4Ω, 40Ω
Resolution     10µΩ, 100µΩ, 1mΩ, 10mΩ
Accuracy:     ±(1%reading ±10digits)
Open Circuit Voltage:     3.5Vpp max
Measurement Current:     25mA approx., 2.5mA approx., 250µA approx., 25µA approx
Measuring Current Frequency:     1KHz ±10%
Voltage Measurement Range:     4V, 40V
Resolution:     1mV, 10mV
Accuracy:     ±(0.1% rdg ±6 digits)
Data Memory:     500 data sets
Continuous Data Memory:     9600 data sets (only use PC download)
