Amprobe AT-6010 Advanced Wire Tracer Kit

Easily and accurately locate wires, breakers, and fuses with the AT-6010 Advanced Wire Tracer. When the Transmitter is connected to the circuit (Energized or De-energized, up to 600 V AC/DC in Category I through Category III electrical environments), the Receiver easily detects the transmitted signal in the wires or cables behind walls, ceilings and floors. Work safely on energized circuits without the need to take equipment offline. The Transmitter also features high signal mode for general tracing and a loop mode designed specifically for locating shorts, as well as two optimal tracing frequencies that are automatically activated based on the detected voltage. The AT-6010 can be combined with the CT-400 Signal Clamp (optional accessory) for applications where access to circuit contacts is limited or where users are not able to connect the Transmitter to the circuit through test leads.

Discover the Amprobe AT-6010 Advanced Wire Tracer Kit at Mektronics Australia – your trusted source for quality tools and equipment!

  • Traces wires in walls, ceilings, floors and corners

  • Locates breakers and fuses

  • Pinpoints shorts and opens

  • High resolution 2.5"" TFT LCD black & white display

  • Simple one button Transmitter operation

  • Two Transmitter signal modes

    1. "High Signal" mode for normal circuits

    2. "Loop" mode for closed loop de-energized circuits

  • Two automatically selected frequency modes for reliable tracing on energized and de-energized circuits

  • Comes with custom Amprobe soft carrying case, test leads and accessories

  • Rated CAT III 600 V for work directly on an energized circuit without the need to take equipment offline

  • Compatible with optional Signal Clamp (CT-400) clamp-on attachment

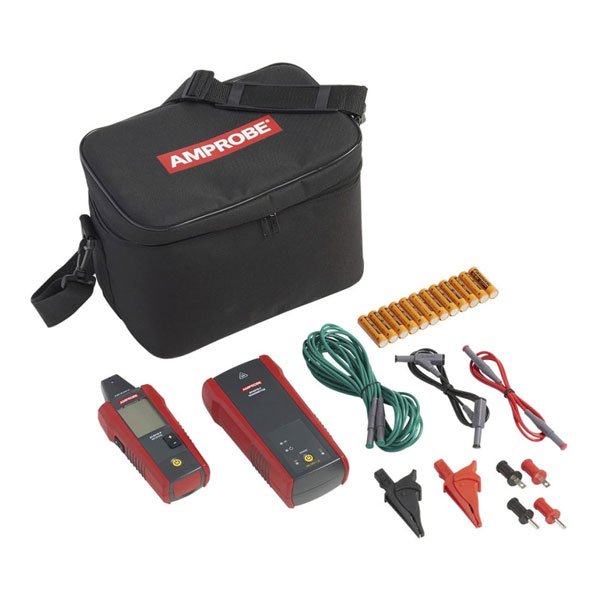

Kit Contains AT-6010

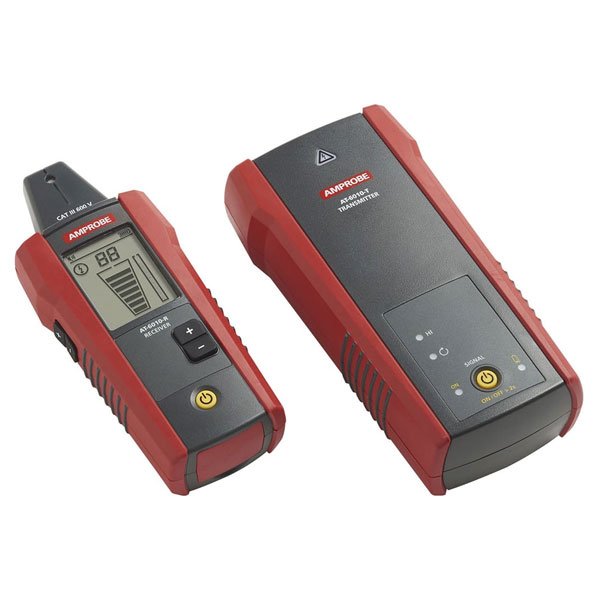

AT-6010-R Receiver

•

AT-6010-T Transmitter

•

TL-6000-INTL Test lead and accessory kit*

•

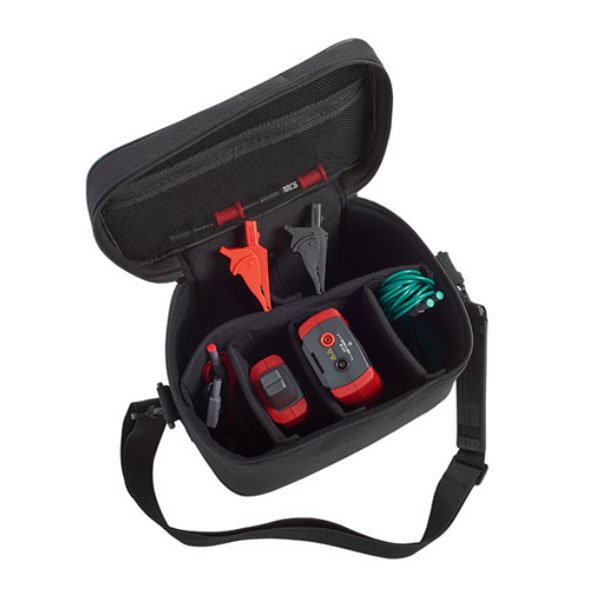

CC-6010 Soft carrying case

•

User Manual

•

Quick Reference Guide

•

1.5 V AA (IEC LR6) Battery

12

* TL-6000-INTL test lead and accessory kit includes:

  • 2 x 1 m test leads (red, black)

  • 1 x 7 m test lead (green)

  • 2 x Alligator clips (red, black)

  • 2 x Outlet blade adapter (red, black)

  • 2 x Outlet round adapter (red, black)

 AT-6010-R Receiver AT-6010-T Transmitter

Measurement category

CAT III 600 V

Operating voltage/current

0 to 600 V

Operating frequency

Energized: 6.25 kHz

Hazardous voltage detection

N/A

> 30 V AC/DC

Signal indications

Numeric bar graph display and audible beep

LEDs

Response time

Tip Sensor (Energized/De-energized): 500 ms

Battery voltage monitoring: 5 sec

Line voltage monitoring: 1 sec

Battery voltage monitoring: 5 sec

Current output of signal (typical)

N/A

 Energized circuit:

HI mode: 60 mA RMS

De-energized circuit:

HI mode: 130 mA RMS

Loop mode: 160 mA RMS

Signal voltage output (nominal)

N/A

 De-energized circuit:

HIGH: 33 V RMS, 140 Vp-p

With CT-400:

Loop model:

31 V RMS, 120 Vp-p

Range detection (open air)

 Tip Sensor (Energized):

Max distance via air: up to 20 ft (6.1 m)

Pinpointing: approx. 1.97 in (5 cm)

Tip Sensor (De-energized):

Max distance via air: up to 14.7 ft (4.5 m)

Pinpointing: approx. 1.97 in (5 cm)

N/A

Display size

LCD 2.5 in (6.35 cm)

N/A

Display dimensions (W x H)

1.45 x 1.93 in

(36.72 x 48.96 mm)

N/A

Display type

Segment LCD

LEDs

Display color

Black and white

Operating mode LEDs: red

Battery status LED: red

Booting time

< 3 sec

< 2 sec

Backlight

Yes

N/A

Operating temperature

-4 °F to 122 °F (-20 °C to 50 °C)

Operating humidity

45%: -4 °F to <50 °F (-20 °C to <10 °C)

95%: 50 °F to <86 °F (10 °C to <30 °C)

75%: 86 °F to <104 °F (30 °C to <40 °C)

45%: 104 °F to 122 °F (40 °C to 50 °C)

Storage temperature and humidity

-4 °F to 158 °F (-20 °C to 70 °C), <95% RH

Operating altitude

0 to 6561 ft (2000 m)

Transient protection

N/A

6.00 kV (1.2/50μS surge)

Pollution degree

2

IP rating

IP 52

IP 40

Drop test

3.28 ft (1 m)

Power supply

4 x AA (alkaline)

8 x AA (alkaline)

Power consumption (typical)

70 mA

Hi mode: 70 mA

Loop mode with Clamp: 90 mA

Consumption without signal transmission: 10 mA

Battery life

Approx. 25 h

Hi mode: approx. 25 h

Loop mode: approx. 18 h

Low battery indication

Yes

Fuse

N/A

1.6 A, 700 V, fast-acting,

Ø 6x32mm

Dimensions (L x W x H)

Approx. 7.2 x 2.95 x 1.69 in

(183 x 75 x 43 mm)

Approx. 7.2 x 3.66 x 1.97 in

(183 x 93 x 50 mm)

Weight

Approx. 0.6 lb (0.27 kg)

Approx. 1.25 lb (0.57 kg)
