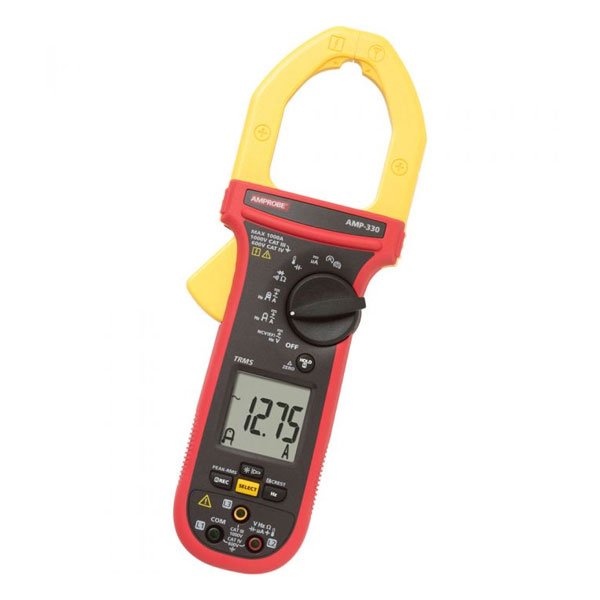

Amprobe AMP-330 1000A AC/DC TRMS Motor Maintenance Clamp Meter

If you're looking for a versatile clamp-on amp meter for electrical motor maintenance and HVAC testing in high voltage industrial environments, the AMP-330 Clamp Meter is the best clamp meter for the job. It is the best clamp meter in the AMP-300 Series line including all the features of the AMP-320 plus a work light, peak hold, CAT IV 600 V, CAT III 1000 V safety rating and large 2.0 inch (51 mm) jaw. HVAC technicians will find the temperature and capacitance measurements they need plus DC Microamps for testing flame sensors. It also had core motor testing capabilities such as motor rotation, 3-phase sequence testing, and inrush current measurement for motor start-up monitoring. The low pass filter allows you to accurately measure current and voltage on variable frequency drives. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. It also offers a full range of standard multimeter features, including AC/DC current, AC/DC voltage, frequency, True-RMS, non-contact voltage detection, resistance, and continuity.

Discover the Amprobe AMP-330 1000A AC/DC TRMS Motor Maintenance Clamp Meter at Mektronics Australia – your trusted source for quality tools and equipment!

  • Measures AC/DC Current to 1000 A and AC/DC Voltage to 1000 V

  • Measures temperature from -40 ° to 752 °F, (-40 ° to 400 °C)

  • Measures DC Microamps output to test proper operation of the flame sensor on gas appliances

  • Measures capacitance, test diodes, and features a continuity beeper

  • Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system

  • Monitors inrush current during motor start-up

  • Features True-RMS sensing for accurate voltage measurements in noisy electrical environments

  • Amp-Tip function delivers precise low AC current measurements "“ 0 to 60 A

  • Includes a low pass filter to accurately measure voltage and current on variable frequency drives

  • Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils

  • Provides data hold, relative zero, and MAX/MIN/AVG mode for quick analysis

  • Maximizes battery life with auto power off and low battery indicator

  • Backlit display for easy measurement viewing in bright and dim environments

  • CAT IV 600 V, CAT III 1000 V safety rated

  • Boasts peak hold and work light

  • Accommodates conductors up to 2.0 inches (51 mm)

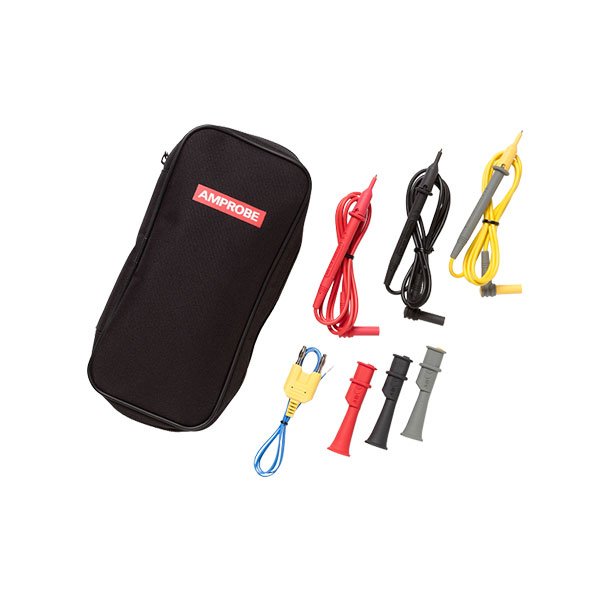

  • AMP-330

  • Banana Plug Type-K Thermocouple

  • Test Leads

  • Alligator Clip Set

  • (2) AAA Batteries (installed)

  • Carrying Case

FEATURE

AMP-210

AMP-220

AMP-310

AMP-320

AMP-330

AC voltage (True-rms)

Range:

0 to 600.0 V

0 to 1000.0 V

Accuracy:

±1.0% + 5LSD (50 to 60 Hz)

±0.8% + 5LSD (50 to 60 Hz)

DC voltage

Range:

0 to 600.0 V

Accuracy:

±1.0% + 5LSD

AC+DC voltage

Range:

"“

0 to 600.0 V

"“

0 to 600.0 V

0 to 1000.0 V

Accuracy:

"“

±1.2% + 7LSD (50 to 60 Hz)

"“

±1.2% + 7LSD (50 to 60 Hz)

±1.0% + 7LSD (50 to 60 Hz)

±1.8% + 7LSD (DC 40 to 200 Hz)

±1.2% + 7LSD 200 to 400 Hz)

AC current

Range:

0 to 600.0 A

Accuracy:

±1.8% + 5LSD (50 to 60 Hz)

±2.0% + 5LSD (100 to 400 Hz)

DC current

Range:

"“

0 to 600.0 A

"“

0 to 600.0 A

0 to 1000.0 A

Accuracy:

"“

±2.0% + 5LSD (DC 50 to 100 Hz)

"“

±2.0% + 5LSD (DC 50 to 100 Hz)

±1.8% + 5LSD (DC 50 to 100 Hz)

AC+DC current

Range:

"“

0 to 600.0 A

"“

0 to 600.0 A

0 to 1000.0 A

Accuracy:

"“

±2.2% + 7LSD (DC 50 to 100 Hz)

±2.7% + 7LSD (100 to 400 Hz)

"“

±2.2% + 7LSD (DC 50 to 100 Hz)

±2.7% + 7LSD (100 to 400 Hz)

±2.2% + 7LSD (40 to 100 Hz)

±2.5% + 7LSD (100 to 400 Hz)

Precise low current AC

Range:

0 to 60.00 A

Accuracy:

±1.5% + 5LSD (50 to 60 Hz)

±1.5% + 5LSD (50 to 60 Hz)

±2.0% + 5LSD (0.00 to 20.00 A, 100 to 400 Hz)

±3.0% + 5LSD (>20.00 to 60.00 A, 40 to 100 Hz)

±3.0% + 5LSD (>20.00 to 60.00 A, 100 to 100 Hz)

Precise low current DC

Range:

"“

0 to 60.0 A

"“

0 to 60.0 A

0 to 60.00 A

Accuracy:

"“

±2.0% + 5LSD

"“

±2.0% + 5LSD

±1.5% + 5LSD (0.00 to 20.00 A)

±3.0% + 5LSD (>20.00 to 60.00 A)

Micro amps

Range:

"“

"“

0 to 2000 µA

Accuracy:

"“

"“

±1.0% + 5LSD

Frequency

Range:

5.00 to 999.9 Hz

Accuracy:

±1.0% + 5LSD (600 V range)

Range:

50.0 to 400.0 Hz

Accuracy:

±2.0% + 4LSD (600 A range)

Resistance

Range:

0.0 to 60.00 kΩ

Accuracy:

±1.0% + 5LSD

Capacitance

Range:

0.0 to 2500 µF

Accuracy:

±2.0% + 4LSD

Continuity beeper

ON ≤ 10 Ω

Off > 250 Ω

Temperature*

(Type K thermocouple)

"“

"“

-40.0 to 752 °F

-40.0 to 400 °C

"“

"“

±1.0% + 3.0 °F (-40.0 to 14.0 °F)

±1.0% + 1.5 °F (>40.0 to 99.9 °F)

±1.0% + 2.0 °F (100 to 752 °F)

±1.0% + 1.5 °C (-40.0 to 10.0 °C)

±1.0% + 0.8 °C (>-10.0 to 99.9 °C)

±1.0% + 1.0 °C (100 to 400 °C)

Non-contact voltage

10 V to 1000 V AC (50 to 60 Hz)

Phase rotation indication

"“

"“

Rotation-R for main supply

Rotation-M for motors

Diode test

Jaw opening

1.18 in (30 mm)

1.37 in (35 mm)

1.18 in (30 mm)

1.37 in (35 mm)

2.0 in (51 mm)

Safety rating

CAT III 600 V

CAT IV 600V

CAT III 1000 V

Special Features

In-rush current

"“

Peak hold (Crest)

"“

"“

"“

"“

Relative zero

Max/Min/Avg

Data hold

Backlight

Auto power off

Work light

"“

"“

"“

"“

*Error does not include Type-K thermocouple errors
