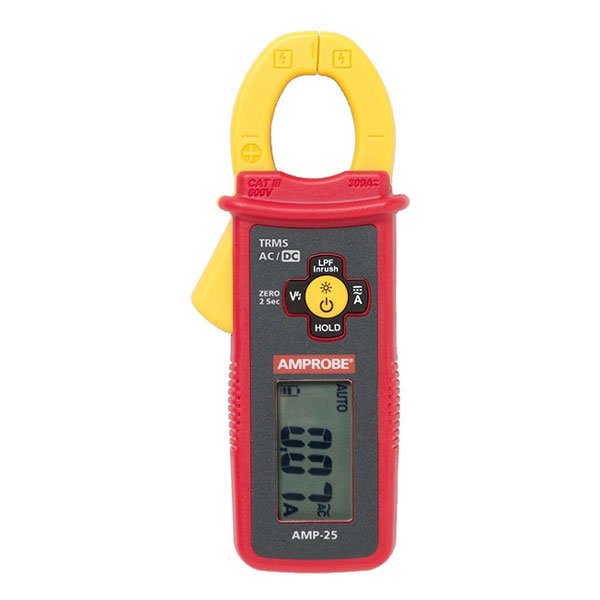

Amprobe AMP-25 Mini Clamp
SKU: FLUAMP-25
AMP-25
About
Features
Specifications
Shipping & Delivery
Amprobe AMP-25 Mini Clamp
Product HighlightsSmall size doesn't mean small features. The Amprobe AMP-25 Mini-Clamp is pocket-sized, enabling quick and easy spot checks of electrical systems. With its rugged construction and CAT III 600 V rating, the AMP-25 is a must-have professional troubleshooting tool for commercial electricians and electrical contractors.
The AMP-25 is designed to measure AC/DC load current and inrush current for motors. Essential features like True-RMS, non-contact voltage and low pass filter make this clamp stand tall next to clamps twice its size. With the AMP-25, you never have to sacrifice performance for size.
Discover the Amprobe AMP-25 Mini Clamp at Mektronics Australia – your trusted source for quality tools and equipment!
-
Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
-
Measures AC/DC current to 300 A (10mA resolution)
-
Includes a low pass filter to accurately measure voltage and current on variable frequency drives
-
Inrush current for motor start-up monitoring
-
Non-contact voltage detection (NCV) for detecting presence of voltage
-
Jaw opening to 1 in (25 mm)
-
Autoranging
-
DCA zero and data hold
-
Maximizes battery life with auto power off
-
Backlit display for easy measurement viewing in bright and dim environment
|
Feature |
AMP-25 |
Best Accuracy |
|
AC Current(1) |
60.00 / 300.0 A |
+/-(1.5% + 5 LSD) @ 50 to 100 Hz ≥ 3 A +/-(2.5% + 5 LSD) @ 100 to 400 Hz ≥ 3 A |
|
DC Current(2) |
60.00 / 300.0 A |
+/-(1.5% + 5 LSD) @ 300 A range |
|
Low Pass Filter |
300.0 A |
+/-(3.5% + 5 LSD) @ 50 to 60 Hz ≥ 3 A |
|
True-RMS |
"¢ |
|
|
Inrush Current |
"¢ |
|
|
Non-Contact Voltage |
"¢ |
|
|
Data Hold |
"¢ |
|
|
(1)Note: Crest Factor (C.F.) may be up to 3.0 as 4000 counts. For non-sinusoidal waveforms: Add 3.0% for C.F. 1.0 to 2.0 Add 5.0% for C.F. 2.0 to 2.5 Add 7.0% for C.F. 2.5 to 3.0 Position error of clamp: +/- 1.5 % of LCD reading (2) Add 10 LSD in auto AC/DC sense mode |
||
