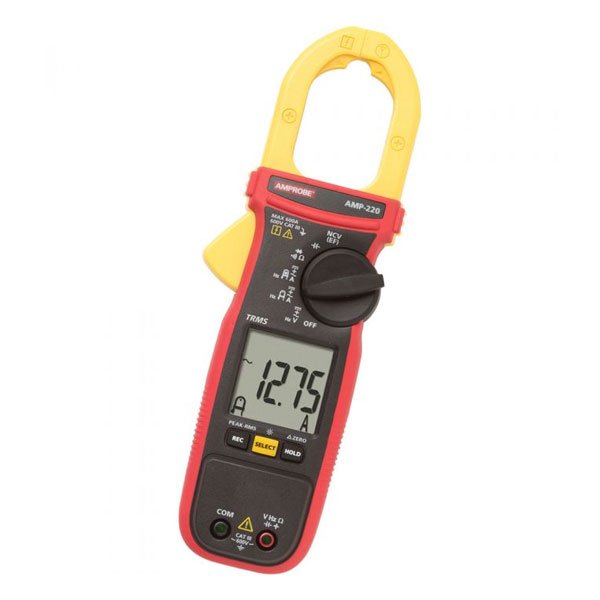

Amprobe AMP-220 600A AC/DC TRMS Clamp Meter

With a full range of AC/DC current, AC/DC voltage, and frequency measurement functions for basic electrical troubleshooting, the AMP-220 clamp meter with its large backlit display is an excellent amp clamp meter choice. Rated CAT III 600 V, the AMP-210 clamp meter offers True-RMS sensing, fast response processor, non-contact voltage detection, capacitance, resistance and continuity measurements to enhance efficiency and safety in today's complex electrical environments. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. A low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency).

Discover the Amprobe AMP-220 600A AC/DC TRMS Clamp Meter at Mektronics Australia – your trusted source for quality tools and equipment!

  • Measures AC/DC Current to 600 A and AC/DC Voltage to 600 V

  • Features True-RMS sensing for accurate voltage measurements in noisy electrical environments

  • Amp-Tip delivers precise low AC current measurements "“ 0 to 60 A

  • Includes a low pass filter to accurately measure voltage and current on variable frequency drives

  • Capacitance measurement, continuity beeper and diode test

  • Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils

  • Offers data hold and relative zero for quick analysis

  • Maximizes battery life with auto power off and low battery indicator

  • Backlit display for easy measurement viewing in bright and dim environments

  • Accommodates conductors up to 1.37 in (35 mm)

  • CAT III 600 V safety rated

  • AMP-220

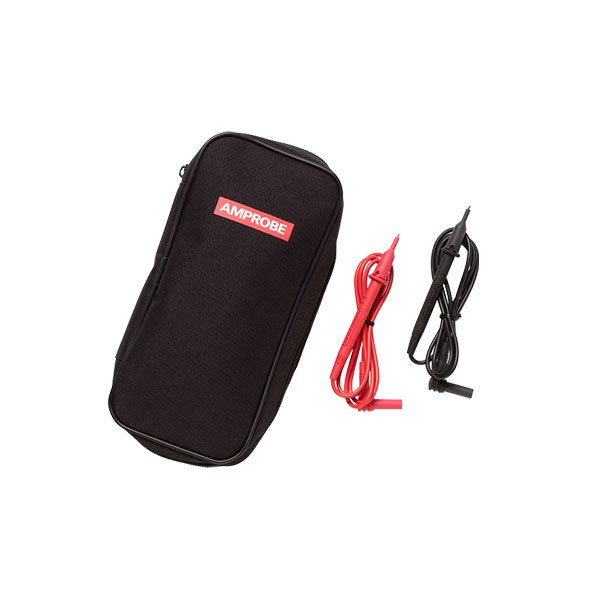

  • Test Leads

  • (2) AAA Batteries (installed)

  • Carrying Case

FEATURE

AMP-210

AMP-220

AMP-310

AMP-320

AMP-330

AC voltage (True-rms)

Range:

0 to 600.0 V

0 to 1000.0 V

Accuracy:

±1.0% + 5LSD (50 to 60 Hz)

±0.8% + 5LSD (50 to 60 Hz)

DC voltage

Range:

0 to 600.0 V

Accuracy:

±1.0% + 5LSD

AC+DC voltage

Range:

"“

0 to 600.0 V

"“

0 to 600.0 V

0 to 1000.0 V

Accuracy:

"“

±1.2% + 7LSD (50 to 60 Hz)

"“

±1.2% + 7LSD (50 to 60 Hz)

±1.0% + 7LSD (50 to 60 Hz)

±1.8% + 7LSD (DC 40 to 200 Hz)

±1.2% + 7LSD 200 to 400 Hz)

AC current

Range:

0 to 600.0 A

Accuracy:

±1.8% + 5LSD (50 to 60 Hz)

±2.0% + 5LSD (100 to 400 Hz)

DC current

Range:

"“

0 to 600.0 A

"“

0 to 600.0 A

0 to 1000.0 A

Accuracy:

"“

±2.0% + 5LSD (DC 50 to 100 Hz)

"“

±2.0% + 5LSD (DC 50 to 100 Hz)

±1.8% + 5LSD (DC 50 to 100 Hz)

AC+DC current

Range:

"“

0 to 600.0 A

"“

0 to 600.0 A

0 to 1000.0 A

Accuracy:

"“

±2.2% + 7LSD (DC 50 to 100 Hz)

±2.7% + 7LSD (100 to 400 Hz)

"“

±2.2% + 7LSD (DC 50 to 100 Hz)

±2.7% + 7LSD (100 to 400 Hz)

±2.2% + 7LSD (40 to 100 Hz)

±2.5% + 7LSD (100 to 400 Hz)

Precise low current AC

Range:

0 to 60.00 A

Accuracy:

±1.5% + 5LSD (50 to 60 Hz)

±1.5% + 5LSD (50 to 60 Hz)

±2.0% + 5LSD (0.00 to 20.00 A, 100 to 400 Hz)

±3.0% + 5LSD (>20.00 to 60.00 A, 40 to 100 Hz)

±3.0% + 5LSD (>20.00 to 60.00 A, 100 to 100 Hz)

Precise low current DC

Range:

"“

0 to 60.0 A

"“

0 to 60.0 A

0 to 60.00 A

Accuracy:

"“

±2.0% + 5LSD

"“

±2.0% + 5LSD

±1.5% + 5LSD (0.00 to 20.00 A)

±3.0% + 5LSD (>20.00 to 60.00 A)

Micro amps

Range:

"“

"“

0 to 2000 µA

Accuracy:

"“

"“

±1.0% + 5LSD

Frequency

Range:

5.00 to 999.9 Hz

Accuracy:

±1.0% + 5LSD (600 V range)

Range:

50.0 to 400.0 Hz

Accuracy:

±2.0% + 4LSD (600 A range)

Resistance

Range:

0.0 to 60.00 kΩ

Accuracy:

±1.0% + 5LSD

Capacitance

Range:

0.0 to 2500 µF

Accuracy:

±2.0% + 4LSD

Continuity beeper

ON ≤ 10 Ω

Off > 250 Ω

Temperature*

(Type K thermocouple)

"“

"“

-40.0 to 752 °F

-40.0 to 400 °C

"“

"“

±1.0% + 3.0 °F (-40.0 to 14.0 °F)

±1.0% + 1.5 °F (>40.0 to 99.9 °F)

±1.0% + 2.0 °F (100 to 752 °F)

±1.0% + 1.5 °C (-40.0 to 10.0 °C)

±1.0% + 0.8 °C (>-10.0 to 99.9 °C)

±1.0% + 1.0 °C (100 to 400 °C)

Non-contact voltage

10 V to 1000 V AC (50 to 60 Hz)

Phase rotation indication

"“

"“

Rotation-R for main supply

Rotation-M for motors

Diode test

Jaw opening

1.18 in (30 mm)

1.37 in (35 mm)

1.18 in (30 mm)

1.37 in (35 mm)

2.0 in (51 mm)

Safty rating

CAT III 600 V

CAT IV 600V

CAT III 1000 V

Special Features

In-rush current

"“

Peak hold (Crest)

"“

"“

"“

"“

Relative zero

Max/Min/Avg

Data hold

Backlight

Auto power off

Work light

"“

"“

"“

"“

*Error does not include Type-K thermocouple errors
