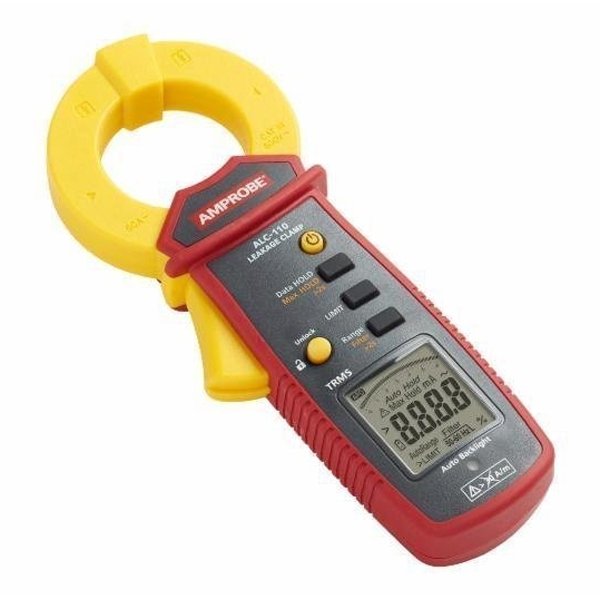

Amprobe ALC-110 Leakage Current Clamp
SKU: FLUALC-110
ALC-110
DESCRIPTION
Features
Specifications
Shipping & Delivery
Amprobe ALC-110 Leakage Current Clamp
Prevent unplanned downtime by detecting leakage currents with the ALC-110 Leakage Current Clamp. Rated CAT III 600 V to ensure electrical safety, the ALC-110 is designed to resist external magnetic fields for highly accurate readings. Features TRMS, a mechanical jaw lock, max readings and hold functions, highest resolution of 0.001 mA (measure up to 60 A), broad frequency range (15 Hz to 1 kHz), selectable filters (low pass, appliance, no filter), selectable limits (0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA) and a battery-saving design.
Use the ALC-110 to:
Measure
-
Earth and differential leakage currents
-
Leakage currents through the earth (PE) conductor
-
Appliance current consumption without interruptions to the circuit
Trace the source of earth leakage currents
Identify intermittent GFCI trips without switching equipment off
Check a system for an electrical break of insulation where current is flowing to the ground
Where industrial leakage current testing is required
Discover the Amprobe ALC-110 Leakage Current Clamp at Mektronics Australia – your trusted source for quality tools and equipment!
|
Low frequency magnetic fields |
≤ 30 A/m, operating class 2 @ IN : 3.500 mA to 600.0 mA / 40 Hz to 1 kHz |
|
Measurement category |
CAT III 600 V |
|
True-rms |
Yes |
|
AC frequency |
15 Hz to 1 kHz |
|
Low pass filter |
50 – 60 Hz, for appliance measuring acc. EN61557-16 amendment A, no filter |
|
Limit judgement |
0.25 mA, 0.5 mA, 3.5 mA, 10 mA, 12 mA |
|
Jaw opening |
1.2 in (30 mm) max. |
|
Jaw locking |
Yes |
|
Backlight function |
Yes |
|
Overload protection |
60 A |
|
Auto power off |
Idle 20 minutes |
|
Auto ranging |
Yes |
|
Max hold |
Yes |
|
Data hold |
Yes |
|
Complies with IEC/EN 61557-13 |
Yes |
|
Built according IEC/EN 61010-2-032 |
Yes |
2 x AAA Batteries
Soft carrying case
User Manual
|
Display |
Digital: 6000 counts, updates 5/sec |
|
Range |
Auto ranging |
|
Over range indication |
OL or -OL |
|
Operating temperature |
32 °F to 86 °F (0 °C to 30 °C), ≤ 80% RH 86 °F to 104 °F (30 °C to 40 °C), ≤ 75% RH 104 °F to 122 °F (40 °C to 50 °C), ≤ 45% RH |
|
Operating altitude |
≤ 2000 m |
|
Storage temperature |
-4 °F to 140 °F (-20 °C to 60 °C) |
|
Pollution degree |
2 |
|
Temperature coefficient |
0.1 x (specified accuracy) / °C (<21 °C, <25 °C) |
|
Vibration requirement |
acc. IEC 61557-1 clause 4.10 |
|
Drop proof |
4 ft (1.2 m) |
|
Battery |
2x batteries 1.5 V IEC LR03 AAA |
|
Battery life |
60 hours typical |
|
Safety compliance |
IEC/EN 61010-1, IEC/EN 61010-2-030, IEC/EN 61010-2-032, IEC/EN 61557-13 |
|
EMC compliance |
IEC/EN 61326-1, IEC/EN 61326-2-2 |
|
Dimensions (H x W x L) |
8.7 x 3.5 x 1.8 in (221 x 89 x 48 mm) |
|
Weight |
0.9 lb (410 g) with batteries installed |
