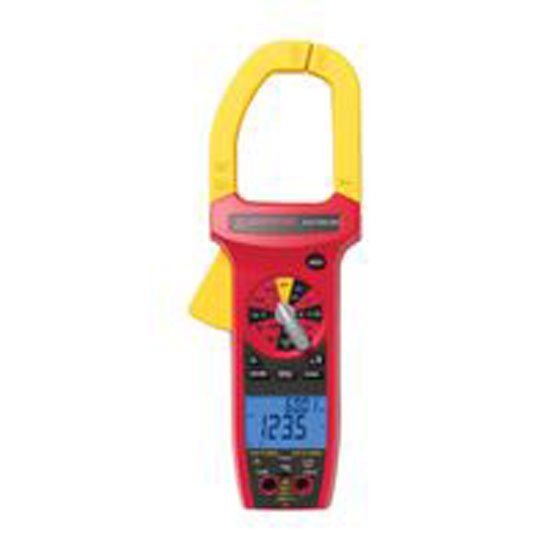

Amprobe ACD-3300 IND CAT IV True-rms Clamp Meter with Temperature
SKU: FLUACD-3300IND
ACD-3300IND
DESCRIPTION
Features
Specifications
Shipping & Delivery
Amprobe ACD-3300 IND CAT IV True-rms Clamp Meter with Temperature
Clamp Multimeters & Accessories AC 1000A INDUSTRIAL CLAMP
Discover the Amprobe ACD-3300 IND CAT IV True-rms Clamp Meter with Temperature at Mektronics Australia – your trusted source for quality tools and equipment!
- True-rms
- Measures AC Current up to 1000 ACA, Voltage up to 750 VAC / 1000 VDC, Frequency, Resistance and Capacitance and Duty Cycle
- Temperature to 1832°F or 1000℃
- Peak Hold
- Audible continuity
- Auto and manual ranging
- Auto power off
- Data hold
- Backlight
- Diode Test
- Duty Cycle
- Bar-graph
- Accommodates conductors up to 2" (51mm) in diameter
- Safety CAT IV 600 V, CAT III 1000 V
- Test leads, battery (installed), Users Manual, Carrying Case and type-K thermocouple included with the product
| DC Voltage Ranges: | 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V |
| Accuracy: | ± (0.5% rdg + 2 dgts) |
| Input impedance: | 660 mV: >100 MΩ; 6.6 V:10 MΩ; 66 V to 1000 V: 9.1 MΩ |
| Overload protection: | 1000 VDC or 750 VAC rms |
| AC Volts True-rms range: | 660.0 mV Frequency 50 to 100 Hz |
| Accuracy: | ± (1.5% rdg + 8 dgts) |
| AC Volts True-rms Range: | 6.600V, 66.00V Frequency 50 to 500 Hz |
| Accuracy: | ± (1.5% rdg + 8 dgts) |
| AC Volts True-rms Range: | 660.0V, 750V Frequency 50 to 500 Hz |
| Accuracy: | ± (1.5% rdg + 8 dgts) |
| Frequency* (* Frequency: 10% to 100% of voltage range): | 50 to 1 kHz +/- (0.1% rdg + 5 dgts) |
| AC coupled TRMS: | 5% to 100% of range |
| Overload Protection: | 1000 VDC or 750 VAC rms |
| Power: | Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22 |
| Jaw Opening Capability: | 57 mm (2.0 in) conductor |
