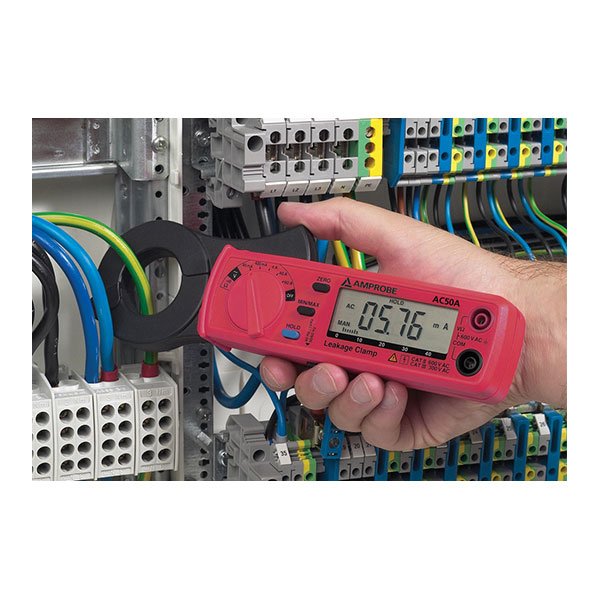

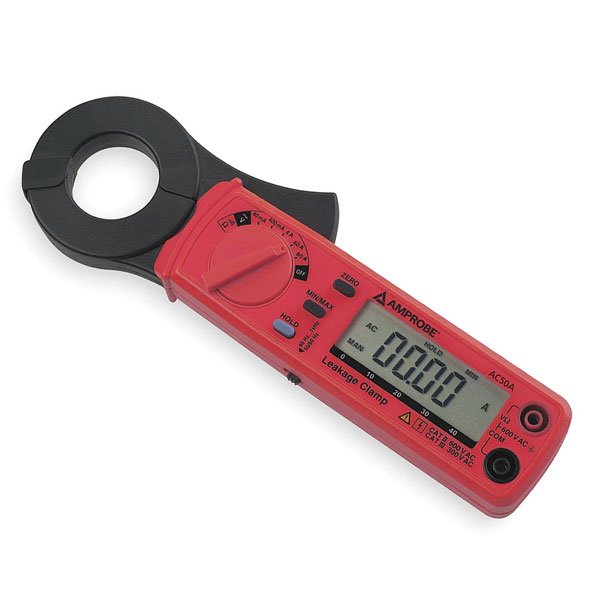

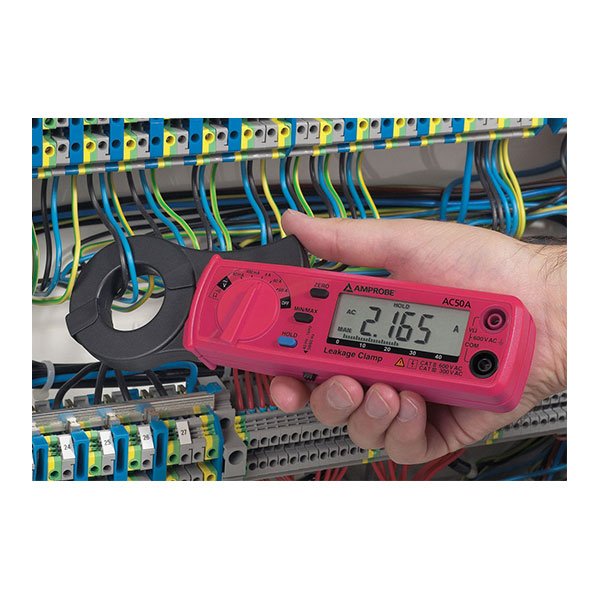

Amprobe AC50 AC Leakage Clamp Meter
SKU: FLUAC50A
AC50A
DESCRIPTION
Features
Inclusions
Specifications
Resources
Shipping & Delivery
Amprobe AC50 AC Leakage Clamp Meter
The Amprobe AC50A Clamp Multimeter with leakage current capability measures low AC current in the microamps. Great for applications requiring measurement of leakage and fault currents.
Discover the Amprobe AC50 AC Leakage Clamp Meter at Mektronics Australia – your trusted source for quality tools and equipment!
-
AC current measurement to 60 A
-
Leakage current measurement with resolution of 0.01 mA
-
AC voltage to 400 V
-
Resistance measurement and continuity beeper
-
Min/max control to see largest or smallest values in a series of measurements
-
Relative value measurement to determine differentials
-
Data hold to freeze measurement value on the display
-
Digital display with analog bargraph
-
Jaw opening 1.2″
-
Auto-power off to save battery life
-
Minimum resolution 0.01 mA
-
AC50A
-

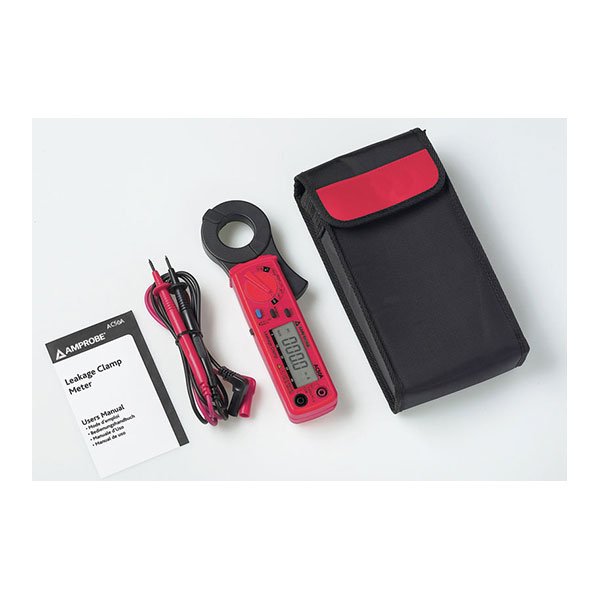

Batteries
-
Carrying case
-
Test leads
|
FEATURE |
AC50A |
|
AC Voltage |
400.0 V |
|
AC Current |
40.00 mA, 400.0 mA, 4.000 A, 40.00 A, 60.0 A |
|
DC Current |
– |
| Resistance |
400 O |
|
Continuity |
• |
|
Accommodates conductors |
up to 1.2 (30 mm) in diameter |
|
Specifications |
|
|
Display |
3-3/4, LCD incl. functions and symbols |
|
Bargraph |
40 segments |
|
Range selection |
manual |
|
Auto-power off |
approx. 30 min. |
|
Overload display |
the left digit is blinking |
|
Measuring rate |
20 measurements/sec. (Bargraph), 2 measurements/sec. (LCD) |
|
Clamp opening |
1.2″ (30 mm) |
|
Overvoltage category |
CAT II 600 V, CAT III 300 V |
|
Pollution degree |
2 |
|
Height above MSL |
up to 2000 m, indoor operation |
|
Battery display |
at low battery |
|
Power supply |
Battery 2 x 1,5 V IEC LR6 (alkaline) |
|
Current consumption |
approx. 10 mA |
|
Operation temperature |
-10 °C … 50 °C (14 ° F… 122 °F) |
|
Storage temperature |
-20 °C … 60 °C (-4 ° F… 140 °F) |
|
Humidity |
< 75 % relative humidity |
