3M GPT-020 Double Coated Tape Paper Liner 1000mm x 50m
SKU: 3M7100269603
7100269603
DESCRIPTION
Features
Specifications
Shipping & Delivery

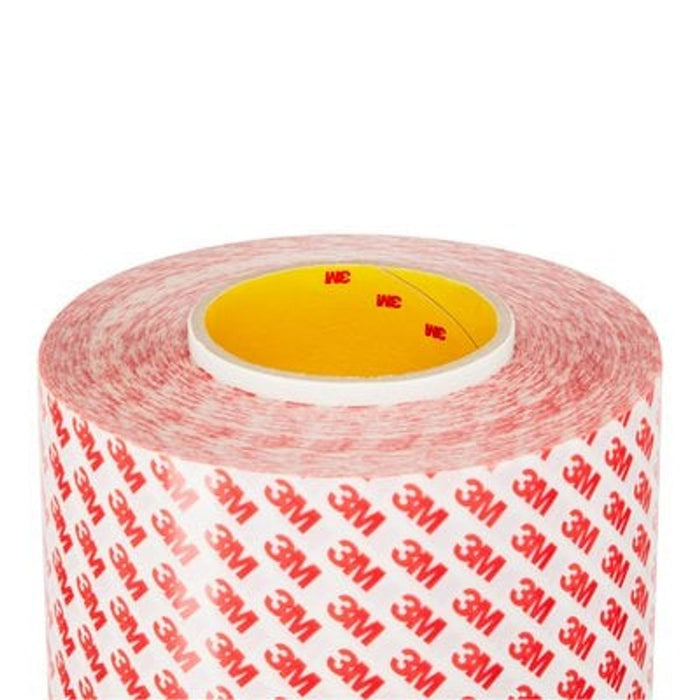

3M GPT-020 Double Coated Tape Paper Liner 1000mm x 50m
3M™ Double Coated Tape Paper Liner GPT-020P is a transparent double coated pressure sensitive adhesive (PSA) tape with clear polyester carrier delivered on a paper liner. The tape is transparent and 200 microns (8 mils) thick. It features a modified solventless acrylic adhesive that combines a high level of peel and shear performance enabling high adhesion to a wide variety of substrates, both to high and some low surface energy materials. It offers high initial tack and humidity resistance, and provides high temperature resistance up to 190°C (375°F) short term and 90°C (195°F) long term.
Discover the 3M GPT-020 Double Coated Tape Paper Liner 1000mm x 50m at Mektronics Australia – your trusted source for quality tools and equipment!
-
Versatile and capable of bonding a wide variety of substrates from high to low surface energy
-
High initial tack and humidity resistance
-
High temperature resistance up to 190°C (375°F) short term and 90°C (195°F) long term
-
High temperature resistance, providing full bonding performance: up to +190 ˚C short term, up to +90 ˚C long term
|
Adhesive Type |
Modified Acrylic |
|
Applications |
Assembling, Attaching, Bonding, High Strength Adhesion, High Tack Adhesion, Holding, Joining, Laminating, Mounting, Splicing, Tabbing |
|
Back-Side Adhesive Thickness (metric) |
0.095 mm |
|
Back-Side Adhesive Type |
Modified Acrylic |
|
Backing (Carrier) Material |
PET |
|
Backing (Carrier) Thickness (Metric) |
0.012 mm |
|
Brands |
3M |
|
Face-Side Adhesive Thickness (metric) |
0.095 mm |
|
Face-Side Adhesive Type |
Modified Acrylic |
|
Features |
Double-sided |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Industries |
Signage, Specialty Vehicle, Appliance, Converter Solutions, Craft, General Industrial, MRO, Metalworking, Point of Purchase, Print |
|
Maximum Operating Temperature (Celsius) |
149 ℃ |
|
Minimum Operating Temperature (Celsius) |
-40 ℃ |
|
Primary Liner |
58# Polycoated Kraft Paper (PCK) |
|
Primary Liner Colour |
White |
|
Primary Liner Thickness (Metric) |
0.1 mm |
|
Product Colour |
Transparent |
|
Product Form |
Roll |
|
Product Usage |
Appliances, Automotive Interiors, Decorative Trim Parts, Displays, Electronic Device Components, Films, Foam, Foils, Frames, Gaskets, High Surface Energy Materials, Home Decor, Light Boxes, Logos, Low Surface Energy Materials, Medical Equipment, Molding, Nameplates, Panels, Point of Sale Advertising, Shades, Plaques, Platens, Signs, Trim |
|
Shelf Life |
18 Month |
|
Total Tape Thickness without Liner (metric) |
0.2 mm |
|
Units per Case |
1.0 |
|
Overall Length (Metric) |
50 Metre |
|
Overall Width (Metric) |
1000 mm |
