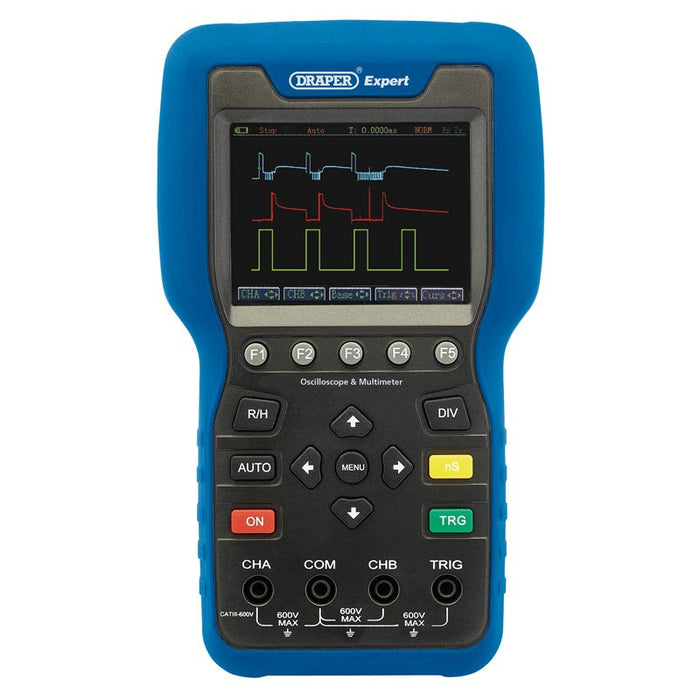

Draper Tools 3 Channel 20MHZ Oscilloscope 64573

SKU: DRA64573

64573

$1,804.56

EX. GST
Regular price $2,406.08
$1,985.02 including GST
Only 2 left in stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

Special Order

own it from $10 a week with Group 2 Copy Created with Sketch.

Overview
Features
Shipping & Delivery

Expert Quality, designed with the following capabilities, 3 - channel, 20MHz digital oscilloscope, true 6000 count RMS digital multi - meter. Supplied with AC/DC power adaptor, alligator clips, BNC banana adaptor, inductive pick up, multi - meter test leads, oscilloscope probes, piercing probe, secondary pick up, USB cable and storage case with shoulder strap. Features: 100ms/s real - time sampling rate, 20MHz real - time bandwidth, Automotive electrical measurements, 51 kinds of automotive standard reference waveform, Automatic tracking measurement on input to adjust the vertical amplitude/horizontal time - base, triggering the stall feature without user intervention, Large dynamic measurement range from 10mV to 500V, Large TFT LCD screen capable of displaying 4 measurement parameters, Two kinds of cursor measurement mode selection, Built - in re - chargeable battery, Continuous track record for up to 12 hours, Standard USB interface provides easy download with a computer connection for data analysis and test results archive

  • 100ms/s real-time sampling rate, 20MHz real-time bandwidth

  • Automotive electrical measurements, 51 kinds of automotive standard reference waveform

  • Automatic tracking measurement on input to adjust the vertical amplitude/horizontal time-base, triggering the stall feature without user intervention

  • Large dynamic measurement range from 10mV to 500V

  • Large TFT LCD screen capable of displaying 4 measurement parameters

  • Two kinds of cursor measurement mode selection

  • Built-in re-chargeable battery

  • Continuous track record for up to 12 hours

  • Standard USB interface provides easy download with a computer connection for data analysis and test results archive
