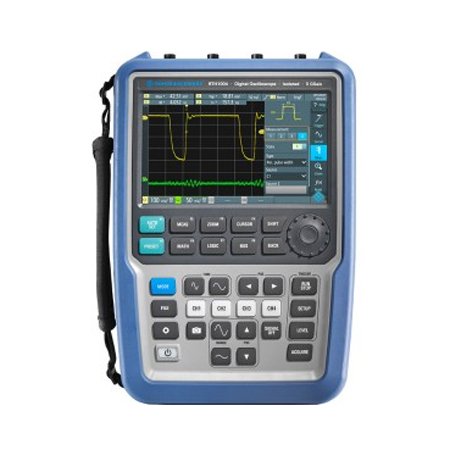

Rohde & Schwarz Scope Rider, 4 Channel, 500 MHz
When debugging embedded devices in the lab or analyzing complex problems in the field, the Rohde & Schwarz Scope Rider offers the performance and capabilities of a lab oscilloscope as well as the form factor and ruggedness of a battery-operated handheld device.
Rohde & Schwarz Scope Rider Key Facts
- 60 MHz to 500 MHz with 5 Gsample/s sampling rate
- Isolated channels with CAT IV 600 V / CAT III 1000 V rating
- 10-bit ADC
- 50 000 waveforms per second
- Capacitive touch and keypad operation
- 5 in 1: Lab performance oscilloscope, logic analyzer, protocol analyzer, data logger and digital multimeter
- IP51 housing meeting military environmental requirements
- Wireless LAN and Ethernet for web-based remote control and quick data access
Discover the Rohde & Schwarz Scope Rider, 4 Channel, 500 MHz at Mektronics Australia – your trusted source for quality tools and equipment!
Superior performance
- Lab performance in a rugged and portable design
- Safe measurements on power electronics
- High-speed acquisition system with deep history: never miss rare faults again
5 instruments in one handheld package
- Lab performance oscilloscope
- Logic analyzer
- Protocol analyzer
- Data logger
- Digital multimeter (Additional multimeter channel in two-channel model)
- Full operation via touch panel or keypad
- See more with a 7“ color display
- Easy parameter adjustment with multifunction wheel
- Large buttons for use with gloves
- Maximum safety in all environments: CAT IV 600 V / CAT II 1000 V
- Highest sensitivity and safe high-voltage measurements at the same time
- IP51 housing – tested in line with military environmental standards
- Wireless LAN and Ethernet for web-based remote control and quick data access
- Finish faster with one-touch documentation
- MicroSD card and USB device/host support
- More than 4 hours of battery power
|
|
||
| Vertical System | ||
| Input channels | 2-channel models | 2 oscilloscope channels, 1 digital multimeter |
| 4-channel models | 4 oscilloscope channels | |
| Maximum input voltage | BNC inputs | CAT IV 300 V (RMS), 424 V (Vp) |
| with probe R&S®RT-ZI10 or R&S®RT-ZI11 | CAT IV 600 V, CAT III 1000 V | |
| Offset range | +/-200 V | |
| Acquisition and Horizontal System | ||
| Maximum realtime sampling rate | 1 / 2 / 4 channels active | 5 / 2.5 / 1.25 Gsample/s |
| Acquisition memory | 1 / 2 / 4 channels active | 500 / 250 / 125 ksample / channel |
| Realtime waveform acquisition rate | max. | 50 000 waveforms/s |
| Timebase range | 1 ns/div to 500 s/div | |
| Logic Analyzer (MSO) functionality (optional: R&S®RTH-B1) | ||
| Input channels / memory depth | 8 logic channels / 125 kSample | |
| Bandwidth / sampling rate | 250 MHz / 1.25 GSample/s | |
| Digital Trigger System | ||
| Trigger modes | auto, normal, single | |
| Trigger types | Advanced trigger types optional (R&S®RTH-K19) | 14 trigger types |
| Automatic oscilloscope measurements | ||
| Automatic measurements | 33 measurement functions | |
| Mask testing | ||
| Mask definition | Tolerance tube | |
| Actions on violation | none, beep, stop | |
| Protocol Trigger & Decode | ||
| Supported Protocols | (Optional: R&S®RTH-K1, R&S®RTH-K2) | I2C, SPI, UART/RS-232/RS-422/RS-485 |
| Data logger | ||
| Number of simult. logging channels | 4 | |
| Measurement speed | 1/2/5 measurements/s | |
| Memory depth | 2 Msample per logging channel | |
| Digital voltmeter / Digital Multimeter | ||
| Resolution | 2-channel version (Digital Multimeter) | 10 000 counts |
| 4-channel version (Digital voltmeter) | 999 counts | |
| Voltage and current | Current with optional current probe or shunt | DC, AC, AC+DC |
| Temperature | With PT100 temperature sensor | |
| Resistance, continuity, diode test, capacity, frequency |
Only 2-channel version | |
| General data | ||
| Dimensions | W x H x D | 201 mm x 293 mm x 74 mm (7.91 in x 11.54 in x 2.91 in) |
| Weight | with battery | 2.4 kg (5.3 lb) (nom.) |
| IP rating | IP51, in line with IEC 60529 | |
| Screen | 7.0" LC TFT 800 x 480 color display | |
| Interfaces | USB host, USB device, LAN, Wireless LAN (optional) | |
