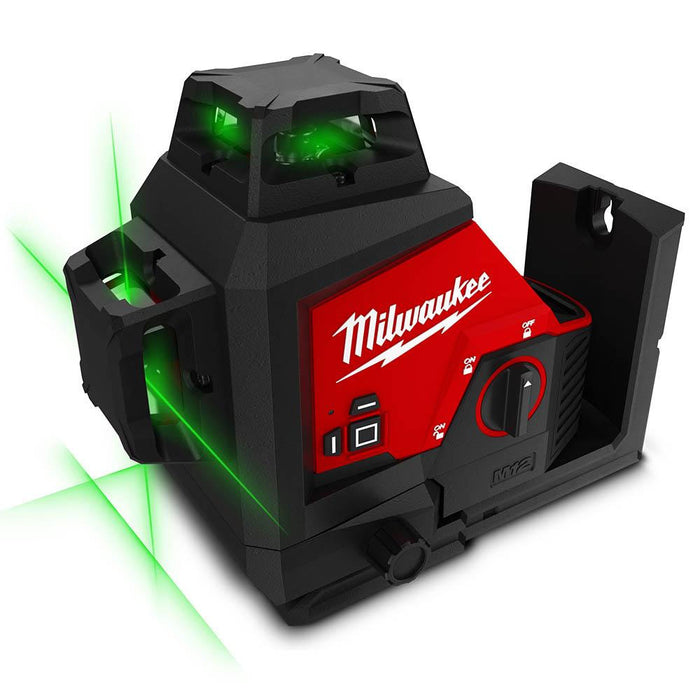

Milwaukee M12™ 3 Plane Laser (Tool Only)
Milwaukee M12™ 3 Plane Laser (Tool Only)
Image for Illustrative Purposes Only
Milwaukee Logo

Milwaukee M12™ 3 Plane Laser (Tool Only)




In Stock

Order before 2pm today for same day dispatch of up to units from our Sydney warehouse.

own it from $10 a week with Group 2 Copy Created with Sketch.

Shipping & Delivery

Milwaukee M12™ 3 Plane Laser (Tool Only)

The M12™ 3 Plane Laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. Powered by our M12™ batteries, users will get 15 hours of continuous run-time with a M12B4 battery pack for ultimate productivity. The high-intensity green laser offers users superior visibility up to 38m for long-range applications. The integrated bracket features a micro control and pivots on plumb point for easy and fast alignment. The M12™ 3 Plane Laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efficient setup in any environment.


Discover the Milwaukee M12™ 3 Plane Laser (Tool Only) at Mektronics Australia – your trusted source for quality tools and equipment!

  • 15 hours of runtime on a single charge using M12™ REDLITHIUM™-ION 3.0Ah battery

  • Visibility range of up to 38 m

  • High intensity green beams provide up to 4x the brightness compared to red lasers

  • 1 m drop rating

  • IP 54 rating to protect the laser from harsh jobsite conditions

  • 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport

  • 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment

  • Fuel gauge on the top and side of the laser allows for fast checking of battery charge

  • Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8″ tripod thread and hang hole allows for attachment to steel stud, wooden stud and tripod (48351411)

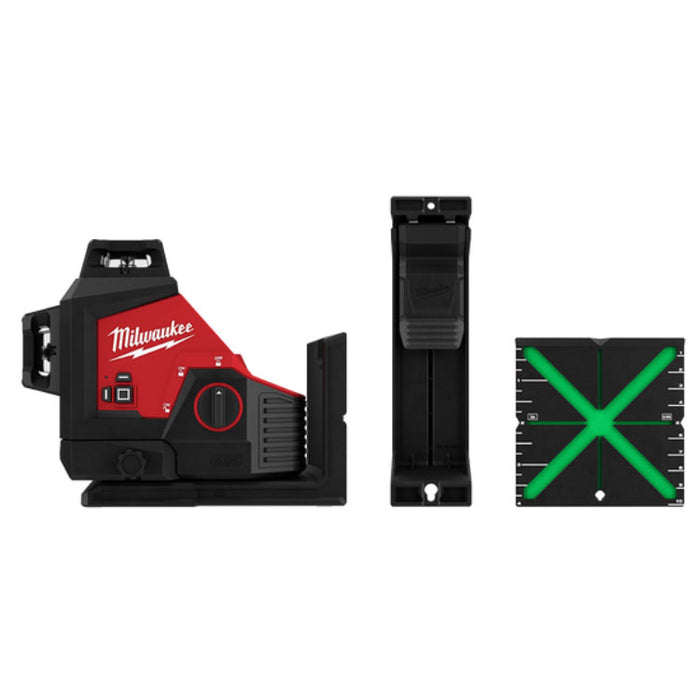

  • M12™ 3 Plane Laser (M123PLA)

  • Laser Track Clip with Quick Connect (48351313)

  • Laser Target (48351111)

  • Carrying Case

  • PLATFORM: M12™


  • DIMENSIONS: 198 x 104 x 165 mm​

  • WEIGHT: 1.09 kg​

  • WARRANTY: 3 Years

  • NUMBER OF BEAMS: ​3 Plane​


  • SELF-LEVELING​: ± 4° Tilt​

  • ACCURACY: ± 3.18 mm over 10 m​


  • WORKING RANGE​: 38 m​


  • THREAD MOUNT: ​1/4"-20, 5/8"-11​
