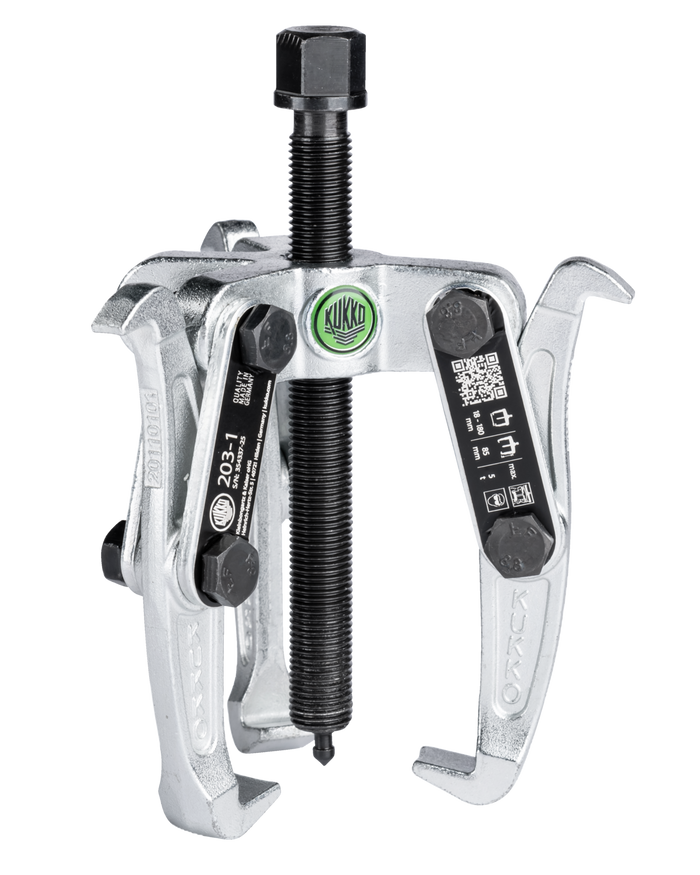

Kukko 3-Armed Puller with Oscillating and Reversible Puller Legs and Combination Crosshead

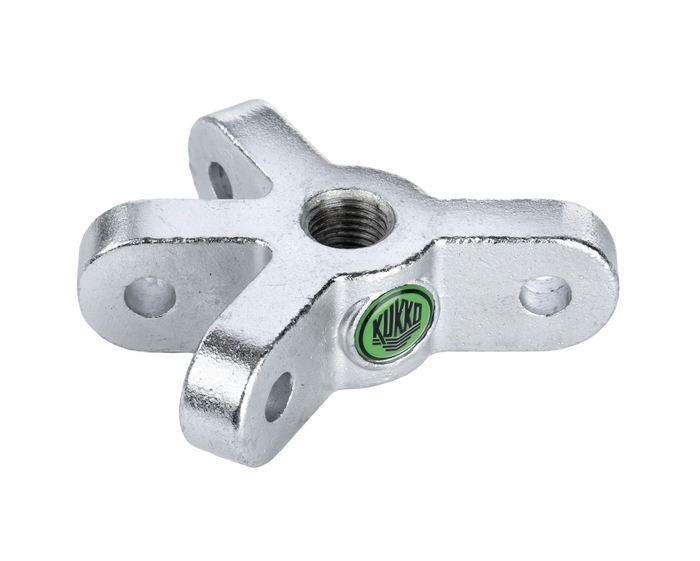

• Thanks to the combination traverse, the puller can be used for 2- jaw puller with adjustable reach and 3-jaw puller with adjustable reach

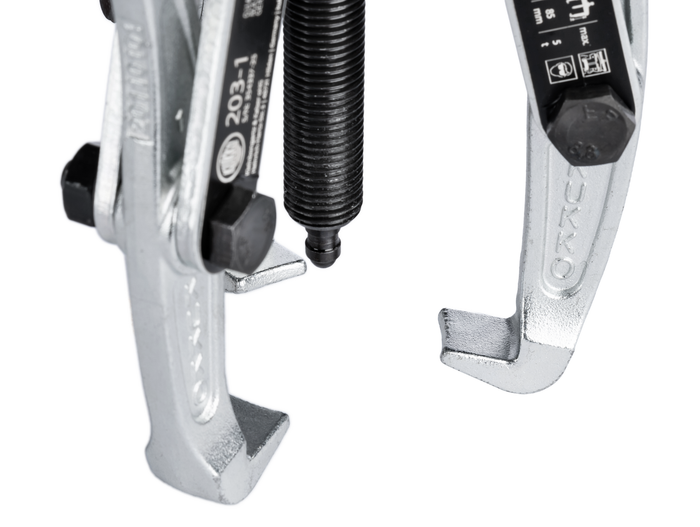

• Adjustable puller legs that can be rotated through 180° to customise the clamping depth

• Oscillating pulling hooks offer a wide range of adjustment options

• Pulling legs with diverse claw shapes for more versatile working

• Claw end with slot provides grip for screw for additional support when pulling off

• Secure positioning of the spindle thanks to the rotatable spindle tip, both on smooth surfaces and when centring (Switch Technology)

• 3-jaw design ensures even force distribution and enables greater pulling power

• Anti-slip guard on the spindle head for safe working with wrench

• Spindle riser protects the threading

•  Total width: 197mm

• Total depth: 197mm

• Total height: 155mm

• Net weight: 1.26kg

• Width across flats: 17mm

• Span outside pull-off (min): 0mm

• Span outside pull-off (max): 180mm

• Clamping depth outside pull off: 85mm

• Hook root thickness at the tip (claw thickness): 2mm

• Hook base width (claw width): 15mm

• Hook base depth usable (claw depth usable): 9mm

• Total hook root depth (total claw depth): 22.5mm

• Total claw thickness (claw distance to base surface): 7mm

• Span inside pull-out (min): 60mm

• Max torque (Nm): 75Nm

• Material: Tool steel

• Number of clamping depth adjustment: 1

• Scale division: No
