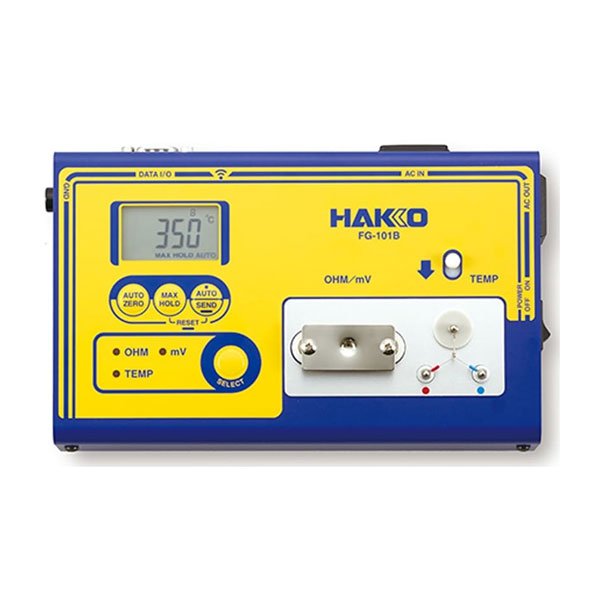

Hakko FG-101B Soldering Iron Tester
SKU: HFG101B-42
FG-101B-42
Features
Specifications
Shipping & Delivery
-
Soldering iron tester for measurement of tip temperature, leak voltage, and tip to ground resistance
-
Human error-free operation
-
Long life sensor AS5000 (with certificate of conformance) is equipped as standard.
-
Lead free
-
Max Hold Function (Temperature Measurement)
-
Temperature Measurement Count Function
-
Auto Zero Function
Discover the Hakko FG-101B Soldering Iron Tester at Mektronics Australia – your trusted source for quality tools and equipment!
|
Power consumption |
3.2W (100V), 3.6W (100-110V), 3.2W (120V), 3.6W (220-240V) |
|---|---|
|
Temperature resolution |
1 ºC |
|
Temperature measurement range |
0 to 700 ºC |
|
Temperature precision |
±3 ºC (300 to 600 ºC) ±5 ºC (other than above) |
|
Temperature sensor |
K (CA)type thermocouple |
|
Voltage resolution |
0.1mV |
|
Voltage measurement range |
0 to 40mV |
|
Voltage precision |
± (5% of reading + 1 digit) |
|
Resistance resolution |
0.1Ω |
|
Resistance measurement range |
0 to 40Ω |
|
Resistance precision |
± (5% of reading + 1 digit) |
|
Display |
LCD : 3 1/2digits |
|
Operating environment |
Ambient temperature/Humidity range : 0 to 40 ºC, max.80% RH (without condensation) |
|
Environmental conditions |
Applicable rated pollution degree 2 (According to IEC/UL 61010-1) |
|
Dimensions |
211(W)×53(H)×126(D)mm |
|
Weight |
0.95kg |
* Temperature sensor can only be used to measure temperatures below 500 ºC. To measure higher temperatures, use an applicable temperature probe.
