Fluke TiX580 Infrared Camera 9HZ
SKU: FLUFLK-TIX5809HZ
FLK-TIX5809HZ
DESCRIPTION
Features
Specifications
Shipping & Delivery

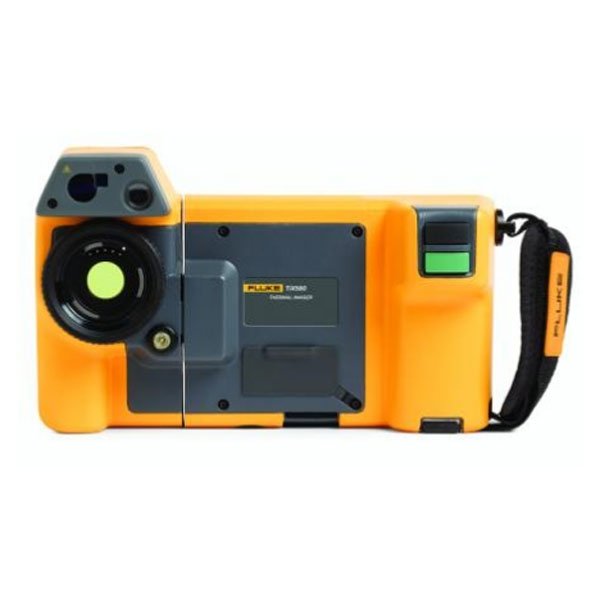

Fluke TiX580 Infrared Camera 9HZ
With up to 640 × 240 resolution, a large 5.7 in touchscreen and a 240 ° rotating lens, the answer is right before your eyes, even when your target isn't.
Discover the Fluke TiX580 Infrared Camera 9HZ at Mektronics Australia – your trusted source for quality tools and equipment!
-
Get stunning 640 × 480 image quality and surprising affordability in the TiX580 (suburb 320 x 240 resolution is available in the TiX560 – TiX500 models)
-

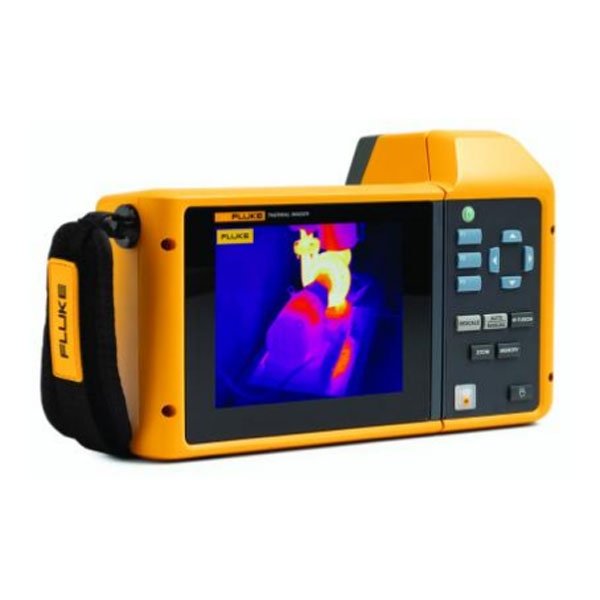

Premium in-field viewing experience with the 5.7 inch responsive LCD touchscreen – 150% more viewing area2
-
Easily navigate over, under and around objects with the 240 ° rotating lens and see the image before you capture it.
-
The ergonomic design and neck strap make long inspection days a lot easier.
-
Enhanced image quality and temperature measurement accuracy – turn your 640 × 480 images into 1280 × 960 and your 320 × 240 images into 640 × 480 images, that's 4x's the resolution and pixels with SuperResolution
-
Get an in-focus image with the touch of a button. LaserSharp® Auto Focus, exclusive to Fluke, uses a built-in laser distance meter that calculates and displays the distance to your designated target² with pinpoint accuracy²
-
These cameras are not only Fluke Connect® compatible but also include the new, powerful and easy-to-use Fluke Connect desktop software to optimize and analyze infrared images, and generate quick, customizable reports.
-
MATLAB® and LabVIEW® software compatibility with the new, included Fluke Connect® desktop software allows users to integrate camera data and infrared images to support R&D analysis and reports
| Key features | |
| IFOV with standard lens (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Detector resolution | 640 x 480 (307,200 pixels) |
| SuperResolution | Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images. Every. Single. Time. |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Touchscreen display (capacitive) | 5.7 inch (14.4 cm) landscape 640 x 480 LCD |
| Rugged, ergonomic design | 240 ° rotatable (articulating) lens |
| Digital zoom | 2x, 4x, and 8x |
| Pre-calibrated Lenses | wide angle, 2x telephoto, 4x telephoto and 25 micron/macro |
| Temperature measurement | |
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to +800 °C (-4 °F to +1472 °F) |
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD)* | ≤ 0.05 °C at 30 °C target temp (50 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| Live line marker | Yes |
|
Data Sheet
|
|
