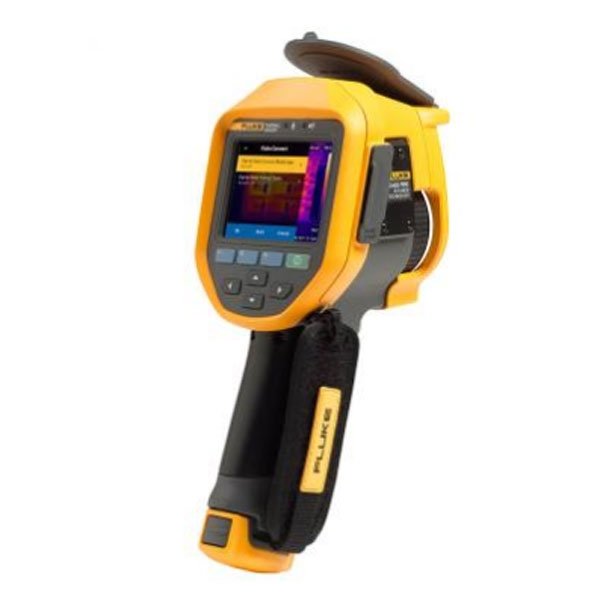

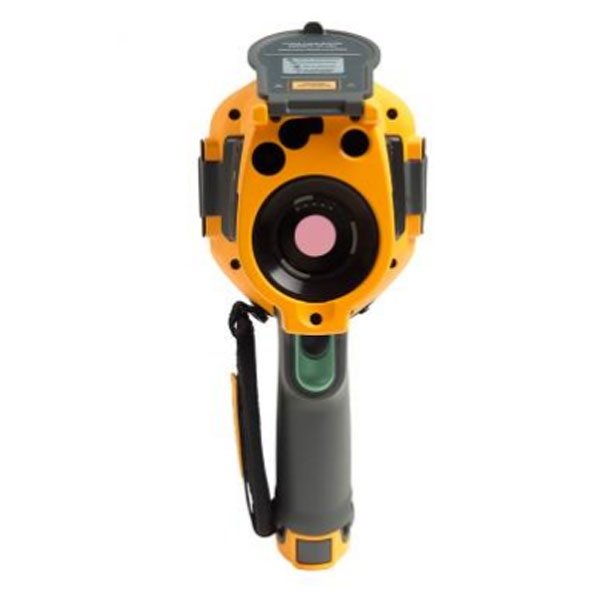

Fluke Ti480 PRO Infrared Camera 9HZ
SKU: FLUFLK-TI480PRO9HZ
FLK-TI480PRO9HZ
DESCRIPTION
Features
Specifications
Shipping & Delivery
Fluke Ti480 PRO Infrared Camera 9HZ
Thermal Imager Dimensions L x W x H: 167 x 122 x 277 mm Temperature range: -10 ... +1000 °C Weight: 1.04 kg Delivery with: MicroSD-Card / Manual / Carrying Case Detector resolution: 1280 x 960 Display: 3.5" Color LCD Electrical supply: Li-ion battery Field of view: 34° x 24° Image storage: 4 GB Micro SD-Card Interfaces: Micro USB / MicroSD Measuring mode: Colour alarm above/below / Full IR image / Test area min./max. Protection rating: IP54 Series: Ti480 PRO Frequency: 60 Hz Min. measurement distance: 15 cm
Discover the Fluke Ti480 PRO Infrared Camera 9HZ at Mektronics Australia – your trusted source for quality tools and equipment!
-
Increased sensitivity to visualize temperature differences
-
Easier to visualize and diagnose issues with sharper onscreen images, multiple rectangle markers and 9 color palettes
-
More intuitive visual interface, improved, user-tested, touch screen interface
-
More flexibility to visualize target, tiny-to-large with interchangeable smart lenses - no calibration required, 2x and 4x telephoto, wide angle and macro lens compatibility
-
Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus
-
Get an instant in-focus image of your designated target. LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target.
-
Get 4x the pixel data with SuperResolution, which captures multiple images and combines them to create a 1280 x 960 image
-
Save time - wirelessly sync images directly from your camera to the Fluke Connect® system, and attach to an asset record or work order
-
Reduce the need take notes in the field with IR-PhotoNotes™ and voice annotations
| Key features | |
| IFOV with standard lens (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Detector resolution | 640 x 480 |
| SuperResolution | Captures and combines 4x the data to create a 1280 x 960 (614,400 pixels) image |
| Infrared Resolution | 307,200 pixels |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Ruggedized touchscreen display | 3.5 inch (landscape) 640 x 480 LCD |
| Rugged, ergonomic design for one-handed use | Yes |
| Digital zoom | 2x and 4x |
| Temperature measurement | |
| Temperature measurement range (not calibrated below -10 °C) | ≤-10 °C to 1000 °C (14 °F to 1832 °F) |
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD)* | ≤0.05 °C at 30 °C target temp (50 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| *Best possible | |
| Wireless connectivity | |
| To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) | |
| Fluke Connect® app compatible | Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect® Assets optional software | Yes*, assign images to assets and create work orders. Easily compare measurement types in one location |
| Fluke Connect® Instant Upload | Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
| Fluke Connect® tool compatible | Yes*, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen |
| IR-Fusion® technology | |
| Adds the context of the visible details to your infrared image | |
| AutoBlend™ mode | Min, Mid, Max IR plus full visible on camera; continously variable in software |
| Picture-In-Picture (PIP) | Yes |
| Built-in digital camera (visible light) | 5 MP |
| Lenses | ||
| Standard lens | IFOV (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Field of view | 34 °H x 24 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Picture-In-Picture and full screen | |
| Optional 2x telephoto smart lens | IFOV (spatial resolution) | 0.65 mRad, D:S 1529:1 |
| Field of view | 12 °H x 9 °V | |
| Minimum focus distance | 45 cm (approx. 18 in) | |
| IR-Fusion® technology | Picture-In-Picture and full screen | |
| Optional 4x telephoto smart lens | IFOV (spatial resolution) | 0.33 mRad, D:S 2941:1 |
| Field of view | 6 °H x 4.5 °V | |
| Minimum focus distance | 45 cm (approx. 18 in) | |
| IR-Fusion® technology | Picture-In-Picture and full screen | |
| Optional wide-angle smart lens | IFOV | 2.62 mRad, D:S 377:1 |
| Field of view | 46 °H x 34 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Full screen | |
| Level and span | Smooth auto and manual scaling |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Data storage and image capture | |
| Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud™ for permanent storage |
| Image capture, review, save mechanism | One-handed image capture,review, and save capability |
| Image file formats | Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files |
| Memory review | Thumbnail and fullscreen review |
| Software | SmartView® software - full analysis and reporting software and Fluke Connect® system |
| Export file formats with SmartView® software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required |
| IR-PhotoNotes™ | Yes (5 images) |
| Text annotation | Yes |
| Video recording | Standard and radiometric |
| File formats video | Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3) |
| Streaming video (remote display) | Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to SmartView® software on a PC; via WiFi hotspot to the Fluke Connect® app on a smartphone; or via HDMI to a TV monitor |
| Remote control operation | Yes, through SmartView® software or Fluke Connect® mobile app |
| Auto capture (temperature and interval) | Yes |
| Battery | |
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | 2-3 hours per battery (*Actual life varies depending on settings and usage) |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
| Color palettes | |
| Standard palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 9: Rainbow, Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| General specifications | |
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 user-definable spot markers |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp display |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) without batteries |
| Relative humidity | 10% to 95% non-condensing |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15 Subpart C Sections 15.207, 15.209, 15.249 |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 68-2-6 |
| Shock | 25 g, IEC 68-2-29 |
| Drop | Engineered to withstand 2 meter (6.5 feet) drop with standard lens |
| Size (H x W x L) | 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
| Weight (battery included) | 1.04 kg (2.3 lb) |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard), extended warranties are available |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
