Image for Illustrative Purposes Only
Fluke PLS 3X60G Three-Plane Green Laser Level Kit
SKU: FLUPLS3X360GKIT
PLS 3X360G KIT
DESCRIPTION
Features
Contents
Specifications
Shipping & Delivery

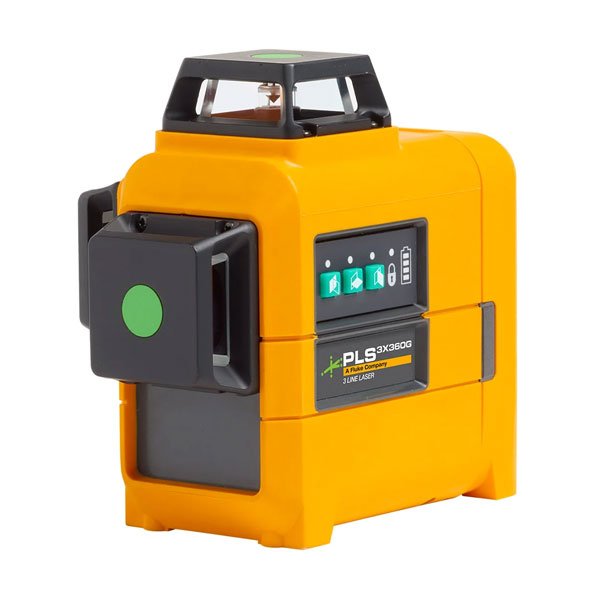

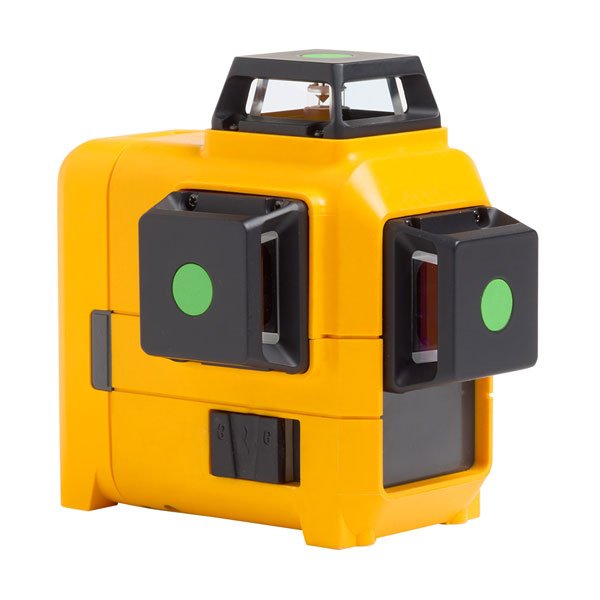

Fluke PLS 3X60G Three-Plane Green Laser Level Kit
Lighten your toolbelt with the 3×360 green laser level. This versatile combination laser level features best-in-class accuracy as well as a rechargeable battery pack with charging adapter and a pendulum lock for added protection during transportation.
-
First PLS laser with 3-beam laser technology integrated to automatic pendulum
-
Use the superior-range detector with the 3x360G for your challenging work environments
-

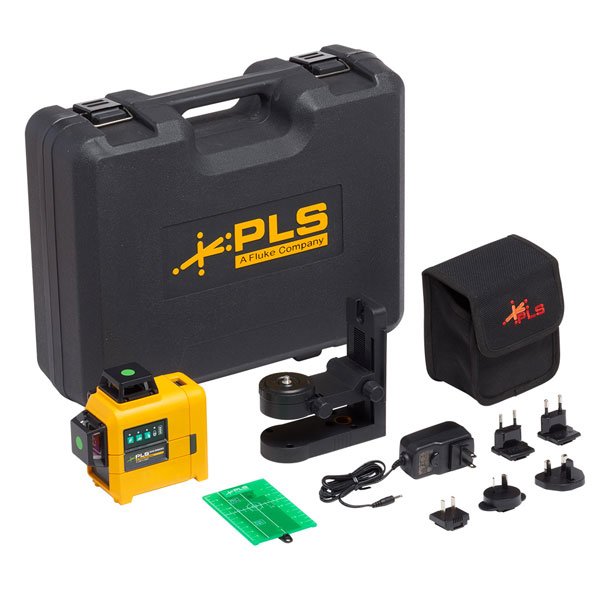

Includes rechargeable Li-ion battery pack, power supply, magnetic L-bracket, green reflective target, canvas pouch and blow mold case
Discover the Fluke PLS 3X60G Three-Plane Green Laser Level Kit at Mektronics Australia – your trusted source for quality tools and equipment!
-
Plumb, level, and square with one tool
-
Battery pack, magnetic L-bracket, elevation and micro-adjustment
-
Accuracy: 5/64 in @ 33 ft (2 mm @ 10 M)
-
Pendulum lock
-
Out-of-level warning
-
PLS 3x360G Green laser level tool
-
PLS RBP5 (Li-Ion) rechargeable battery
-
Power Supply
-

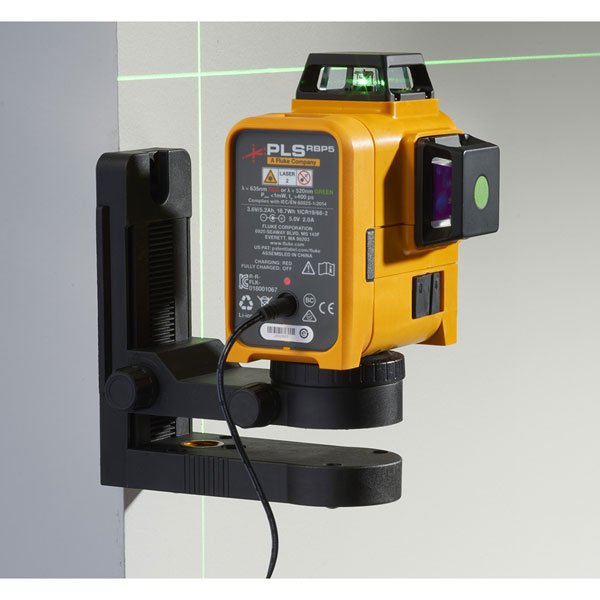

3x360 Magnetic L-Bracket
-
Green Reflective Target
-
Canvas Pouch
-
Blow Mold Case
|
Laser Levels |
PLS 3x360G |
| Battery |
Lithium-Ion, 3.6V, 5200 mh (RBP5) |
| Battery Life, Continuous Use |
3 beams: ≥ 5 hours; 1 beam: ≤ 17 hours |
| Line Fan Angle | |
|
Horizontal |
360 ° |
|
Vertical |
360 ° |
|
Side Vertical |
360 ° |
| Working Range | |
|
Without Line Detector |
35 m (115 ft.) |
|
With Line Detector |
65 m (210 ft.) |
| Laser Leveling | |
|
System |
Automatic, Pendulum |
| Range |
Self-leveling: ≤ 4 °; Out of self-levelling: > 6 ° |
| Temperature | |
|
Operating |
-10 °C to 50 °C (14 °F to 122 °F) |
| Storage | |
|
With Batteries |
-18 °C to 50 °C (-0.4 °F to 122 °F) |
|
Without Batteries |
-20 °C to 70 °C (-13 °F to 158 °F) |
|
Relative Humidity |
0 % to 90 % (0 °C to 35 °C) |
|
0 % to 75 % (35 °C to 40 °C) |
|
|
0 % to 45 % (40 °C to 50 °C) |
|
| IP Rating |
IP 54 |
| Drop Test |
(1 M) 3.28 ft |
| Size (H x W x L) with Battery |
5.12 in x 3.58 in x 5.25 in (13 cm x 9.09 cm x 13.33 cm) |
| Weight with Battery |
1.76 lbs (0.8 kg) |
| Safety |
IEC 61010-1: Pollution Degree 2 |
| Laser |
IEC 60825-1:2014 Class 2 |
| Light Source |
Semiconductor laser diode |
| Max Output Power |
< 1 mW |
| Wavelength | |
| Green |
520 nm ± 10 nm |
| Electromagnetic compatibility (EMC) | |
|
International |
IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B |
