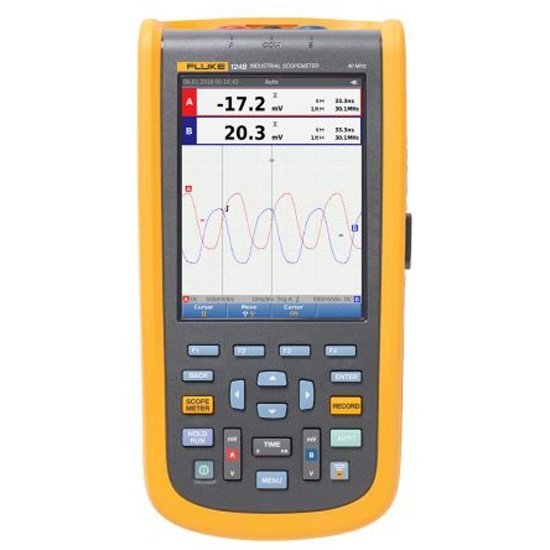

Fluke Industrial Scopemeter Hand Held Oscilloscope Kit (40MHZ) 124B

• Dual-input digital oscilloscope and multimeter
• 20 MHz oscilloscope bandwidth
• 5000-count True RMS digital multimeter
• Connect-and-View trigger simplicity for hands-off operation
• IntellaSet technology automatically and intelligently adjusts numerical readout based on the measured signal
• Dual-input waveform and meter reading recorder for trending data over extended periods
• Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
• Shielded test leads for oscilloscope, resistance and continuity measurements
• Resistance, continuity, diode and capacitance meter measurements
• Save or recall data and instrument setups
• Store instrument setups defined by a test sequence for routine maintenance or most-often-used test procedures
• External optically isolated USB interface to transfer, archive and analyse scope or meter data
• FlukeView ScopeMeter software for Windows
• Rugged design (to withstand 3 g vibration, 30 g shock) and rated IP51 according to EN/IEC60529
• Highest safety rating in the industry, safety rated for CAT IV 600 V
• Rechargeable battery
• Dimensions 259 x 132 x 55 mm
• Weight 1.4 kg
• Fluke Industrial Scopemeter Hand Held Oscilloscope Kit (40MHZ versions also include carry case, FlukeView for Windows software, magnetic hanger and screen protector Intuitive menu driven operation
• Reliable automatic (and manual) triggering including motor drives and video
• Connect and View™ hands off operation provides stable, reliable and repeatable display of signals without touching a button
• Measurements include: V dc, VAC True RMS, Hz, duty cycle, pulse width, dBV, dBm, phase A to B, crest factor, Ohms, continuity, frequency, diode and capacitance
• 40 ns glitch capture
• Dual channel Trendplot™ displays graphs of max. and min. readings with time and date stamp
• High brightness, high contrast LCD display
• Single shielded test lead type for each channel is used for all measurement including DSO and digital multimeter functions
• Rugged and splash proof design with integral holster for reliable operation.
• Safety designed to meet IEC 1010-1 Cat III 600 V for industrial power systems

• Fluke 120B ScopeMeter Data Sheet

• Oscilloscope mode
  Vertical
  Frequency response - dc coupled	Without probes and test leads (with BB120)	123B: dc to 20 MHz (-3 dB) 124B and 125B: dc to 40 MHz (-3 dB)
  	With STL120-IV 1:1 shielded test leads	DC to 12.5 MHz (-3 dB) / dc to 20 MHz (-6 dB)
  	With VP41 10:1 Probe	123B: dc to 20MHz (-3 dB) 124B and 125B: dc to 40 MHz (-3 dB)
  Frequency response - ac coupled (lf roll off)	Without probes and test leads	<10 Hz (-3 dB)
  	With STL120-IV 1:1 shielded test leads	<10 Hz (-3 dB)
  	With VP41 10:1 Probe	<10 Hz (-3 dB)
  Rise time, excluding probes,  test leads	123B <17.5 ns 124B and 125B <8.75 ns
  Input impedance	Without probes and test leads	1 MΩ//20 pF
  	With BB120	1 MΩ//24 pF
  	With STL120-IV 1:1 shielded test leads	1 MΩ//230 pF
  	With VP41 10:1 Probe	5 MΩ//15.5 pF
  Sensitivity	5 mV to 200 V/div
  Analog bandwidth limiter	10 kHz
  Display modes	A, -A, B, -B
  Max. input voltage A and B	Direct, with test leads, or with VP41 Probe	600 Vrms Cat IV, 750 Vrms maximum voltage.
  	With BB120	600 Vrms
  Max. floating voltage, from any terminal to ground	600 Vrms Cat IV, 750 Vrms up to 400Hz
  Horizontal
  Scope modes	Normal, Single, Roll
  Ranges (normal)	Equivalent sampling	123B: 20 ns to 500 ns/div,
  		124B and 125B: 10 ns to 500 ns/div
  	Real time sampling	1 μs to 5 s/div
  	Single (real time)	1 μs to 5 s/div
  	Roll (real time)	1s to 60 s/div
  Sampling rate (for both channels simultaneously)	Equivalent sampling (repetitive signals)	Up to 4 GS/s
  	Real time sampling 1 μs to 60 s/div	40 MS/s



  Trigger
  Screen update	Free run, on trigger
  Source	A, B
  Sensitivity A and B	@ DC to 5 MHz	0.5 divisions or 5 mV
  	@ 40 MHz	123B: 4 divisions
  		124B and 125B: 1.5 divisions
  	@ 60 MHz	123B: N/A
  		124B and 125B: 4 divisions
  Slope	Positive, negative



  Advanced scope functions
  Display modes	Normal	Captures up to 25 ns glitches and displays analog-like persistence waveform
  	Smooth	Suppresses noise from a waveform
  	Glitch off	Does not capture glitches between samples
  	Envelope	Records and displays the minimum and maximum of waveforms over time
  Auto set (Connect-and-View™)	Continuous fully automatic adjustments of amplitude, time base, trigger levels, trigger gap, and hold-off. Manual override by user adjustment of amplitude, time base, or trigger level.



  Dual input meter

  The accuracy of all measurements is within ±(% of reading + number of counts) from 18 °C to 28 °C.

  Add 0.1x (specific accuracy) for each °C below 18 °C or above 28 °C. For voltage measurements with 10:1 probe, add probe  uncertainty +1%. More than one waveform period must be visible on the screen.



  Input A and input B
  DC voltage (VDC)
  Ranges	500 mV, 5 V, 50 V, 500 V, 750 V
  Accuracy	±(0.5% +5 counts)
  Common mode rejection (CMRR)	>100 dB @ dc, >60 dB @ 50, 60, or 400 Hz
  Full scale reading	5000 counts
  True-rms voltages (V ac and V ac+dc)
  Ranges	500 mV, 5 V, 50 V, 500 V, 750 V
  Accuracy for 5% to 100% of range (DC coupled)	DC to 60 Hz (V ac+dc)	±(1% +10 counts)
  	1 Hz to 60 Hz (V ac)	±(1% +10 counts)
  Accuracy for 5% to 100% of range (AC or dc coupled)	60 Hz to 20 kHz	±(2.5% +15 counts)
  DC rejection (only VAC)	>50 dB
  Common mode rejection (CMRR)	>100 dB @ dc
  	>60 dB @ 50, 60, or 400 Hz
  Full scale reading	5000 counts, reading is independent of any signal crest factor.
  Peak
  Modes	Max peak, Min peak, or pk-to-pk
  Ranges	500 mV, 5 V, 50 V, 500 V, 2200 V
  Accuracy	Accuracy Max peak or Min peak	5% of full scale
  	Accuracy Peak-to-Peak	10% of full scale
  Full scale reading	500 counts
  Frequency (Hz)
  Ranges	123B: 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz,1 MHz, 10 MHz, and 50 MHz
  	124B and 125B: 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz, 10 MHz, and 70 MHz
  Frequency range	15 Hz (1 Hz) to 50 MHz in continuous autoset
  Accuracy @1 Hz to 1 MHz	±(0.5% +2 counts)
  Full scale reading	10,000 counts
  RPM
  Max reading	50.00 kRPM
  Accuracy	±(0.5% +2 counts)
  Duty cycle (PULSE)
  Range	2% to 98%
  Frequency range	15 Hz (1 Hz) to 30 MHz in continuous autoset
  Pulse width (PULSE)
  Frequency range	15 Hz (1 Hz) to 30 MHz in continuous autoset
  Full scale reading	1000 counts
  Amperes (AMP)
  With current clamp	Ranges	Same as V dc, V ac, V ac+dc, or PEAK
  	Scale factors	0.1 mV/A, 1 mV/A, 10 mV/A, 100 mV/A, 400 mV/A, 1 V/A, 10 mV/mA
  	Accuracy	Same as V dc, V ac, V ac+dc, or PEAK (add current clamp uncertainty)
  Temperature (TEMP) with optional temperature probe
  Range	200 °C/div (200 °F/div)
  Scale factor	1 mV/°C and 1 mV/°F
  Accuracy	As V dc (add temp. probe uncertainty)
  Decibel (dB)
  0 dBV	1 V
  0 dBm (600 Ω /50 Ω)	1 mW referenced to 600 Ω or 50 Ω
  dB on	V dc, V ac, or Vac+dc
  Full scale reading	1000 counts
  Crest factor (CREST)
  Range	1 to 10
  Full scale reading	90 Counts
  Phase
  Modes	A to B, B to A
  Range	0 to 359 degrees
  Resolution	1 degree
  Power (125B only)
  Configurations	1 phase / 3 phase 3 conductor balanced loads (3 phase: fundamental component only, AUTOSET mode only)
  Power factor (PF)	Ratio between watts and VA range - 0.00 to 1.00
  Watt	RMS reading of multiplying corresponding samples of input A (volts) and input B (amperes)
  	Full scale reading	999 counts
  VA	Vrms x Arms
  	Full scale reading	999 counts
  VA reactive (var)	√((VA)2-W2)
  	Full scale reading	999 counts
  Vpwm
  Purpose	To measure on pulse width modulated signals, like motor drive inverter outputs
  Principle	Readings show the effective voltage based on the average value of samples over a whole number of periods of the fundamental frequency
  Accuracy	As Vrms for sinewave signals



  Input A to common
  Ohm (Ω)
  Ranges	123B and 124B	500 Ω , 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ, 30 MΩ
  	125B	50 Ω, 500 Ω , 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ, 30 MΩ
  Accuracy	±(0.6% + 5 counts) 50 Ω ±(2% + 20 counts)
  Full scale reading	50 Ω to 5 MΩ - 5000 counts, 30 MΩ - 3000 counts
  Measurement current	0.5 mA to 50 nA, decreases with increasing ranges
  Open circuit voltage	<4 V
  Continuity (Cont)
  Beep
  Measurement current	0.5 mA
  Detection of shorts of	≥1 ms
  Diode
  Measurement voltage	@0.5 mA	>2.8 V
  	@open circuit	<4 V
  Measurement current	0.5 mA
  Polarity	+ on input A, - on COM
  Capacitance (CAP)
  Ranges	50 nF, 500 nF, 5 μF, 50 μF, 500 μF
  Full scale reading	5000 counts
  Measurement current	500 nA to 0.5 mA, increases with increasing ranges



  Advanced meter functions
  Zero Set	Set actual value to reference
  AutoHold (on A)	Captures and freezes a stable measurement result. Beeps when stable. AutoHold works on the main meter reading, with thresholds of 1 Vpp for AC signals and 100 mV for DC signals.
  Fixed decimal point	Activated by using attenuation keys



  Cursor Readout (124B and 125B)
  Sources	A, B
  Single vertical line	Average, min and max readout
  	Average, min, max and time from start of readout (in ROLL mode; instrument in HOLD)
  	Min, max and time from start of readout (in RECORDER mode; instrument in HOLD)
  	Harmonics values in POWER QUALITY mode.
  Dual vertical lines	Peak-peak, time distance and reciprocal time distance readout
  	Average, min, max and time distance readout (in ROLL mode; instrument in HOLD)
  Dual horizontal lines	High, low and peak-peak readout
  Rise or fall time	Transition time, 0%-level and 100%-level readout (manual or auto leveling; auto leveling only  possible in single channel mode)
  Accuracy	As oscilloscope accuracy



  Recorder
  The recorder captures meter readings in Meter Recorder mode or continuously captures waveform samples in Scope Recorder mode. The information is stored on internal memory or on optional SD card (with the 125B or 124B).
  The results are displayed as Chart recorder display that plots a graph of min and max values of Meter measurements over time or as a waveform recorder display that plots all the captured samples.
  Meter readings
  Measurement Speed	Maximum 2 measurement/s
  Record Size (min, max, average)	2 M readings for 1 channel
  Recorded Time Span	2 weeks
  Maximum number of events	1024
  Waveform record
  Maximum sample rate	400 K sample/s
  Size Internal memory	400 M samples Recorded Time
  Span internal memory	15 minutes at 500 μs/div 11 hours at 20 ms/div
  Record Size SD card	1.5 G samples
  Recorded Time Span SD card	11 hours at 500 μs/div 14 days at 20 ms/div
  Maximum number of events	64



  Power Quality (125B only)
  Readings	Watt, VA, var, PF, DPF, Hz
  Watt, VA, var ranges (auto)	250 W to 250 MW, 625 MW, 1.56 GW
  	When selected: total (% r)	±(2% + 6 counts)
  	When selected: fundamental (% f)	±(4% + 4 counts)
  DPF	0.00 to 1.00
  PF	0.00 to 1.00, ±0.04
  Frequency range	10.0 Hz to 15.0 kHz 40.0 Hz to 70.0 Hz
  Number of Harmonics	DC to 51
  Readings / Cursor readings  (fundamental 40 Hz to 70 Hz)	Vrms / Arms /Watt	Each harmonic from fundamental maybe selected for individual readings
  Includes frequency of fundamental, phase Angle and K-factor (in Amp and Watt)



  BusHealth tester (Fluke 125B only)
  Type	Subtype	Protocol
  AS-i	NEN-EN50295
  CAN	ISO-11898
  Interbus S	RS-422	EIA-422
  Modbus	RS-232	RS-232/EIA-232
  	RS-485	RS-485/EIA-485
  Foundation Fieldbus	H1	61158 type 1, 31.25 kBit
  Profibus	DP	EIA-485
  	PA	61158 type 1



  Miscellaneous
  Display	Type	5.7-inch color active matrix TFT
  	Resolution	640 x 480 pixels
  Waveform Display	Vertical	10 div of 40 pixels
  	Horizontal	12 div of 40 pixels
  Power	External	Via Power Adapter BC430
  	Input voltage	10 V DC to 21 V DC
  	Power consumption	5 W typical
  	Input connector	5 mm jack
  	Internal	Via Battery Pack BP290
  	Battery power	Rechargeable Li-Ion 10.8 V
  	Operating time	7 hours with 50% backlight brightness
  	Charging time	4 hours with test tool off,  7 hours with test tool on
  	Allowable ambient temp	0 to 40 °C (32 to 104 °F) during charging
  Memory	Internal memory can store 20 data sets  (screen waveform and setup)	Micro SD card slot with optional SD card  (max size of 32 GB)
  Mechanical	Size	259 x 132 x 55 mm  (10.2 x 5.2 x 2.15 in)
  	Weight	1.4 kg (3.2 lb) including battery pack
  Interface	Optically isolated	Transfer screen copies (bitmaps), settings and data
  	USB to PC/laptop	OC4USB optically isolated USB adapter/cable, (optional), using FlukeView® software for Windows®.
  	Optional WiFi adapter	Fast transfer of screen copies (bitmaps), settings and data to PC/laptop, tablet, smartphone, etc. A USB port is provided for attaching the WiFi dongle. Do not use the USB port with a cable for safety reasons.



  Environmental
  Environmental	MIL-PRF-28800F, Class 2
  Temperature	Battery Operation	0 to 40 °C (32 to 104 °F)
  	Power Adapter Operation	0 to 50 °C (32 to 122 °F)
  	Storage	-20 to 60 °C (-4 to 140 °F)
  Humidity (Operating)	@ 0 to 10 °C (32 to 50 °F)	Non-condensing
  	@ 10 to 30 °C (50 to 86 °F)	95%
  	@ 30 to 40 °C (86 to 104 °F)	75%
  	@ 40 to 50 °C (104 to 122 °F)	45%
  Storage	@ -20 to 60 °C (-4 to 140 °F)	Non-condensing
  Altitude	Operating at 3 km (10,000 feet)	CAT III 600 V
  	Operating at 2 km (6,600 feet)	CAT IV 600 V
  	Storage	12 km (40,000 feet)
  EMC electromagnetic compatibility	International	IEC 61326-1: Industrial, CISPR 11:  Group 1, Class A
  	Korea (KCC)	Class A Equipment (Industrial Broadcasting & Communication Equipment)
  	USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
  Wireless radio with adapter	Frequency range	2412 MHz to 2462 MHz
  	Output power	<100 mW
  Enclosure protection	IP51, ref: EN/IEC60529
  Safety	General	IEC 61010-1: Pollution Degree 2
  	Measurement	IEC 61010-2-033: CAT IV 600 V/CAT III 750 V
  Max. input voltage input A and B	Direct on input or with leads	600 Vrms CAT IV for derating
  	With Banana-to-BNC Adapter BB120	600 Vrms for derating
  	Max. floating voltage from any terminal to ground	600 Vrms Cat IV, 750 Vrms up to 400 Hz

SHIPPING

A delivery and handling charge applies to all orders with the exception of back-ordered items.

Unless otherwise required by Buyer, Seller will make transport arrangements as follows:

For deliveries within the metropolitan areas of mainland State capital cities a standard freight charge may be added to invoice; goods

For delivery outside those areas, seller will select the transport to be used and prepay freight for Buyer. Seller will then bill Buyer for freight at Seller's discretion.

Should the Buyer request goods be sent to a Post Office box the Buyer acknowledges this method is the only available and therefore the Seller is not liable for undelivered goods.

Free shipping on orders over $199 incl GST (valid for 1 delivery per order and excludes NT, WA & TAS). If only part of the order is in stock, the customer has the option of paying for a second delivery if they require a partial shipment prior to all goods becoming available. Mektronics Australia reserves the right to charge additional freight in the event of hazardous, bulky or heavy items ordered.

DELIVERY TIME

All quoted delivery or consignment dates are estimates only, given without engagement.

Delay in consignment of any part of an order shall not relieve Buyer of its obligation to accept and pay for the remainder of the order.

Except as provided in paragraph 1.2 of Terms & Conditions, seller will not be liable to pay damages or compensation for any injury or loss sustained by Buyer

a) in the event of a delay in consignment or delivery of goods: or

b) in the event of non delivery.

Goods offered ex-stock by Seller are subject to prior sale.

In the event of any happening beyond Seller's reasonable control in consequence of which Seller cannot effect consignment by the time or times quoted or specified, Seller shall be entitled to consign part only of an order, suspend consignment or extend the time for consignment, for the period during which such cause of delay operates, or may cancel the order, and in the event of such suspension, extension or cancellation, Seller shall not be liable for damages.
