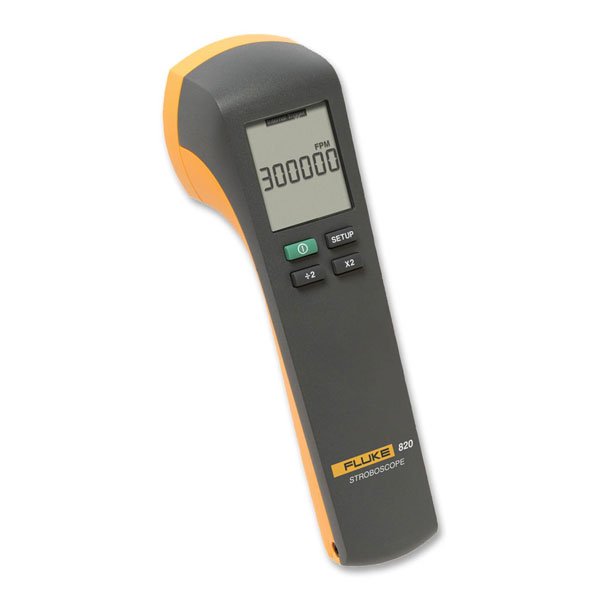

Fluke 820-2 LED Stroboscope
Identifying the running speed of rotating equipment can be difficult, but the simplifies the process allowing you to perform stop motion diagnostics without actually stopping, or making contact, with the machine you are working on. Whether you are trying to diagnose parasitic oscillations, slippage, or unwanted distortions, the 820-2 LED Stroboscope is the ideal frontline troubleshooting, process or product research and development tool.
Discover the Fluke 820-2 LED Stroboscope at Mektronics Australia – your trusted source for quality tools and equipment!

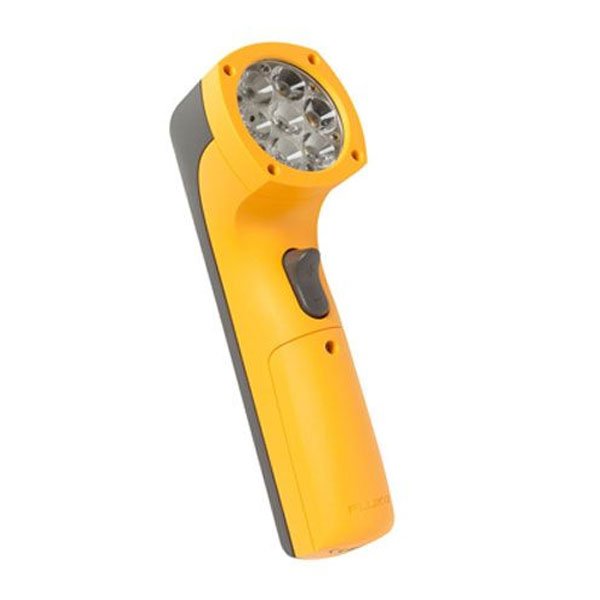

- High-intensity 7-LED array – 4,800 Lux @ 6,000 FPM/30cm
- High efficiency LED solid-state light source with uniform flash characteristics allows for higher flash rates – 30-300,000 FPM (flashes per minute)
- Digital pulse width modulation for exceptionally sharp images at high speeds
- Rugged, durable design utilizes solid-state LEDs with no filaments, gases, hollow cavities, or glass – (1 meter drop)
- Quartz-accuracy control system provides high accuracy – 0.02% (+/- 1 digit)
- Multi-line LCD display
- Check the rotating speed of machinery without physical contact or need for reflective tape
- Advance or retard flash timing for viewing gear teeth, cutting surfaces, repeats, or drifting equipment
- Simple push button operation with 2x and ÷2 buttons for easy adjustment
Adjustable flash duration
For most applications the standard flash duration will work well without adjustment. In other applications with higher rpm or larger rotating objects with high surface speeds, an adjustable flash duration is needed. In high speed applications, objects may move during the brief period of a single flash, resulting in a blurred image. By decreasing flash duration, objects have less time to move and the image will appear sharper.

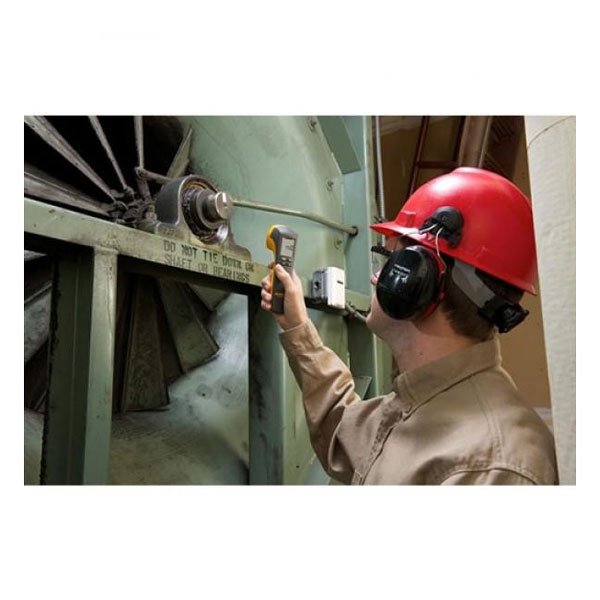

Common applicationsThe is more than just a tool to measure rotational speed of machinery without physical contact. It is also an excellent diagnostic tool for a wide variety of applications:
- Belt driven machines - HVAC fans, pumps
- Roller bearings, shafts, gear teeth or other machine components
- Clutches and cogwheels
- Foundations - resonance vibrations
- Cable or piping wear or damage
- Mixing and dosage processes
In addition, the LED stroboscope can be used as a strobe tachometer to measure speed instead of using a laser tachometer. In order to use the stroboscope, the component under measure must be visible, and have an identifying mark that can be used as a point of reference. A strobe tachometer is a useful tool because you can't always get access to the machine shaft to stick a piece of reflective tape to use a laser tachometer or make contact with the moving shaft to use a contact tachometer - using a stroboscope you can "stop" the shaft down to 30 RPM (FPM).
Usages:
- Turbines that vary in speed and change speed frequently
- Variable Frequency Drive motors that vary in speed, but do not change frequently
- Find belt rotation speed and look for belt slippage
- Find machine element components – fan blades, pump vanes, compressor screws, and gear teeth
- RPM measurement and frequency investigation
- Slip measurement
- Protective case
- External trigger connector
Specifications | |
Mechanical Specifications | |
Size (HxWxL) | 5.71 cm x 6.09 cm x 19.05 cm |
2.25 in x 2.4 in x 7.5 in | |
Weight | 0.24 kg |
Environmental Specifications | |
Operating temperature | 0 °C to +45 °C |
Storage temperature | -10 °C to +50 °C |
Operating humidity (without ondensation) | Non-condensing (<10 °C) |
90 % RH (10 °C to 30 °C) | |
75 % RH (30 °C to 40 °C) | |
45 % RH (40 °C to 50 °C) | |
Absorption/corrosion | 30 °C, 95 % RH, 5 day |
Product functions normally | |
Operating altitude | 2,000 m |
Storage altitude | 12,000 m |
Vibration | MIL-PRF-28800F Class 2 |
Impact resistance | 1 m drop |
EMI, RFI, EMC | EN61326-1:2006 |
Safety Compliance | |
Agency approvals | CE |
Class III (SELV) Pollution Degree 2 | |
Miscellaneous Specifications | |
Flash Frequency | |
Range | 30 to 300,000 FPM |
0.5 to 5000 Hz | |
Accuracy | 0.02 % |
Resolution | 30 to 999 FPM = 0.1 |
1000 to 300,000 = 1 | |
0.5 Hz to 999 Hz = 0.1 | |
1000 Hz to 5000 Hz = 1 | |
Frequency setting | FPM or Hz |
Flash Pulse | |
Duration | Adjustable in μs or degrees |
Delay | Adjustable in μs or degrees |
Light | |
Color | Approximately 6500 K |
Emission output | 4,800 lx @ 6000 FPM at 30 cm |
External Trigger | |
Method | Connector to externally control trigger |
High level | 3 V to 32 V |
Low level | <1 V |
Minimum pulse width | 50 μs connection |
