Fluke 750P31 Pressure Module, 0 psi to 10000 psi
 0 psi to 10000 psi
Image for Illustrative Purposes Only
Fluke Logo

Fluke 750P31 High Pressure Module

SKU: FLU750P31

FLUKE-750P31

$6,438.00

EX. GST
$7,081.80
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Specifications
Resources
Shipping & Delivery

Fluke 750P31 High Pressure Module

A family of 48 pressure modules covers pressure calibrations from 0 to 1 inH20 to 10,000 psi (2.5 mBar to 690 bar).

Gage pressure modules have one pressure fitting and measure the pressure with respect to atmospheric pressure. Differential pressure modules have two pressure fittings and measure the difference between the applied pressure on the high fitting versus the low fitting. Each module is clearly labeled for range, overpressure and media compatibility. All modules include NPT, metric (BSP) and M20 adapters. Compatible with all documenting, multifunction and pressure calibrators (including: Fluke 754, 752, 726, 725, 721, 719Pro, 719, 717 and legacy 741, 743, 744, 701 and 702 calibrators).

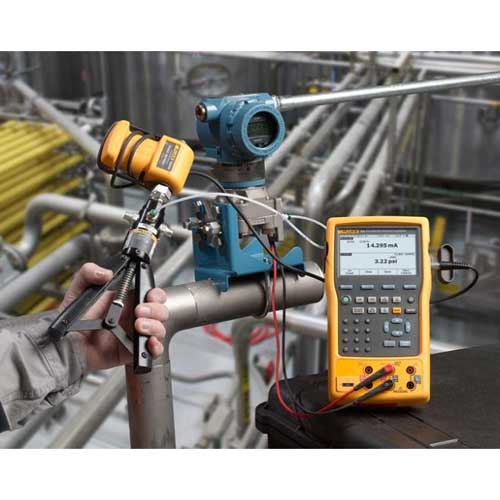

Fluke 750P Series Pressure Modules are easy to use. To measure pressure, connect the pressure module to a pressure source or hand pump and then connect the pressure module cable to the calibrator. Apply pressure from the pressure source and it is displayed digitally on the calibrator. At the touch of a button, the pressure may be displayed in up to 11 different engineering units. When used with the 750 Series Documenting Process Calibrators, pressure readings can be date/time stamped and stored electronically for later retrieval. This saves time, eliminates errors, and supports compliance with quality standards and regulations.

Choose from:

  • Differential modules

  • Gage modules

  • High pressure modules

  • Absolute modules

  • Vacuum modules

  • Dual range modules

  • Reference modules

Discover the Fluke 750P31 High Pressure Module at Mektronics Australia – your trusted source for quality tools and equipment!

The 750P Series Pressure Modules are the ideal pressure modules to enable gage, differential and absolute pressure measurement with Fluke 750 and 740 series DPCs and 725, 726 MPCs to measure pressure.

  • 0.025 % reference uncertainty

  • 6-month and 1-year specifications

  • Temperature compensated 0 °C to 50 °C

  • Digital communication to calibrators, no analog losses or errors

  • Broad selection of ranges

  • Gage, differential, dual range, absolute and vacuum measurement models

Differential Module Specifications

Model

Parameter / Range

Burst Rating6

Hi Side Media2

Lo Side Media2

750P00 0 to 1 inH2O (0 to 2.5 mBar) 30X Dry Air Dry Air
750P01 0 to 10 inH2O (0 to 25 mBar) 3X Dry Air Dry Air
750P02 0 to 1 psi (0 to 70 mBar) 3X Dry Air Dry Air
750P22 0 to 1 psi (0 to 70 mBar) 3X 316 SS Dry Air
750P03 0 to 5 psi (0 to 350 mBar) 3X Dry Air Dry Air
750P23 0 to 5 psi (0 to 350 mBar) 4X 316 SS Dry Air
750P04 0 to 15 psi (0 to 1 bar) 3X Dry Air Dry Air
750P24 0 to 15 psi (0 to 1 bar) 4X 316 SS Dry Air

Model

Reference Uncertainty4

Total Uncertainty

1-year

(15-35°C)

Total Uncertainty

1-year1

Total Uncertainty

6-month

(15-35°C)

Total Uncertainty

6-month1

750P00 ±0.15% ±0.3% ±0.35% ±0.25% ±0.30%
750P01 ±0.1% ±0.2% ±0.3% ±0.15% ±0.25%
750P02 ±0.050% ±0.1% ±0.15% ±0.075% ±0.125%
750P22 ±0.050% ±0.1% ±0.15% ±0.075% ±0.125%
750P03 ±0.02% ±0.04% ±0.05% ±0.035% ±0.04%
750P23 ±0.02% ±0.04% ±0.05% ±0.035% ±0.04%
750P04 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750P24 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%



Gage Module Specifications

Model

Parameter / Range

Burst Rating6

Hi Side Media2

Lo Side Media2

750P05 0 to 30 psi (0 to 2 bar) 4X 316 SS N/A
750P06 0 to 100 psi (0 to 7 bar) 4X 316 SS N/A
750P27 0 to 300 psi (0 to 20 bar) 4X 316 SS N/A
750P07 0 to 500 psi (0 to 35 bar) 4X 316 SS N/A
750P08 0 to 1000 psi (0 to 70 bar) 3X 316 SS N/A
750P09 0 to 1500 psi (0 to 100 bar) 3X 316 SS N/A
750P2000 0 to 2000 psi (0 to 140 bar) 3X 316 SS N/A

Model

Reference Uncertainty4

Total Uncertainty

1-year

(15-35°C)

Total Uncertainty

1-year1

Total Uncertainty

6-month

(15-35°C)

Total Uncertainty

6-month1

750P05 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750P06 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750P27 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750P07 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750P08 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750P09 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750P2000 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%



High Pressure Module Specifications

Model

Parameter / Range

Burst Rating6

Hi Side Media2

Lo Side Media2

750P29 0 to 3000 psi (0 to 200 bar) 3X 316 SS N/A
750P30 0 to 5000 psi (0 to 340 bar) 3X 316 SS N/A
750P31 0 to 10000 psi (0 to 700 bar) 2X 316 SS N/A

Model

Reference Uncertainty4

Total Uncertainty

1-year

(15-35°C)

Total Uncertainty

1-year1

Total Uncertainty

6-month

(15-35°C)

Total Uncertainty

6-month1

750P29 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750P30 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750P31 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%



Absolute Module Specifications

Model

Parameter / Range

Burst Rating6

Hi Side Media2

Lo Side Media2

750PA3 0 to 5 psia (0 to 350 mBar) 4X 316 SS N/A
750PA4 0 to 15 psia (0 to 1 bar) 4X 316 SS N/A
750PA5 0 to 30 psia (0 to 2 bar) 4X 316 SS N/A
750PA6 0 to 100 psia (0 to 7 bar) 4X 316 SS N/A
750PA27 0 to 300 psia (0 to 20 bar) 4X 316 SS N/A
750PA7 0 to 500 psia (0 to 35 bar) 4X 316 SS N/A
750PA8 0 to 1000 psia (0 to 70 bar) 3X 316 SS N/A
750PA9 0 to 1500 psia (0 to 100 bar) 3X 316 SS N/A

Model

Reference Uncertainty4

Total Uncertainty

1-year

(15-35°C)

Total Uncertainty

1-year1

Total Uncertainty

6-month

(15-35°C)

Total Uncertainty

6-month1

750PA3 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%
750PA4 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%
750PA5 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%
750PA6 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%
750PA27 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%
750PA7 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%
750PA8 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%
750PA9 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%



Vacuum Module Specifications

Model

Parameter / Range

Burst Rating6

Hi Side Media2

Lo Side Media2

750PV3 -5 psi (-350 mBar) 4X 316 SS Dry Air
750PV4 -15 psi (-1 bar) 4X 316 SS Dry Air

Model

Reference Uncertainty4

Total Uncertainty

1-year

(15-35°C)

Total Uncertainty

1-year1

Total Uncertainty

6-month

(15-35°C)

Total Uncertainty

6-month1

750PV3 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%
750PV4 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%



Dual Range Specifications

Model

Parameter / Range

Burst Rating6

Hi Side Media2

Lo Side Media2

750PD2 -1 to 1 psi (-70 to 70 mBar) 4X 316 SS Dry Air
750PD3 -5 to 5 psi (-350 to 350 mBar) 4X 316 SS Dry Air
750PD10 -10 to 10 psi (-700 to 700 mBar) 4X 316 SS Dry Air
750PD4 -15 to 15 psi (-1 to 1 bar) 4X 316 SS Dry Air
750PD5 -15 to 30 psi (-1 to 2 bar) 4X 316 SS
750PD50 -15 to 50 psi (-1 to 3.5 bar) 4X 316 SS
750PD6 -15 to 100 psi (-1 to 7 bar) 4X 316 SS
750PD7 -15 to 200 psi (-1 to 14 bar) 4X 316 SS
750PD27 -15 to 300 psi (-1 to 20 bar) 4X 316 SS

Model

Reference Uncertainty4

Total Uncertainty

1-year

(15-35°C)

Total Uncertainty

1-year1

Total Uncertainty

6-month

(15-35°C)

Total Uncertainty

6-month1

750PD2 ±0.05% ±0.1% ±0.15% ±0.075% ±0.125%
750PD3 ±0.03% ±0.06% ±0.07% ±0.05% ±0.06%
750PD10 ±0.025% ±0.05% ±0.07% ±0.04% ±0.06%
750PD4 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750PD5 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750PD50 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750PD6 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750PD7 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%
750PD27 ±0.0175% ±0.035% ±0.045% ±0.03% ±0.04%



Reference Module Specifications

Model

Parameter / Range

Burst Rating6

Hi Side Media2

Lo Side Media2

750R045 0 to 15 psi (0 to 1 bar) 3X Dry Air Dry Air
750R065 0 to 100 psi (0 to 7 bar) 4X 316 SS
750R27 0 to 300 psi (0 to 20 bar) 4X 316 SS
750R07 0 to 500 psi (0 to 35 bar) 4X 316 SS
750R085 0 to 1000 psi (0 to 70 bar) 3X 316 SS
750R29 0 to 3000 psi (0 to 200 bar) 3X 316 SS
750R30 0 to 5000 psi (0 to 340 bar) 3X 316 SS
750R315 0 to 10000 psi (0 to 700 bar) 2X 316 SS
750RD5 -15 to 30 psi (-1 to 2 bar) 4X Dry Air
750RD65 -12 to 100 psi (-1 to 7 bar) 4X 316 SS
750RD27 -12 to 300 psi (-0.8 to 20 bar) 4X 316 SS

Model

Reference Uncertainty4

Total Uncertainty

1-year

(15-35°C)

Total Uncertainty

1-year1

Total Uncertainty

6-month

(15-35°C)

Total Uncertainty

6-month1

750R045 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
750R065 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
750R27 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
750R07 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
750R085 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
750R29 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
750R30 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
750R315 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
750RD5 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
750RD65 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
750RD27 ±0.01% of FS ±0.02% of FS ±0.04% of FS ±0.015% of FS ±0.035% of FS
1. Total uncertainty, % of full span for temperature range 0°C to +50°C, one year interval. Total uncertainty, 1.0% of full span for temperature range -10°C to 0°C, one year interval. No 6 month specification available for range -10°C to 0°C.
2. "Non-corrosive gasses" indicates dry air or non-corrosive gas as compatible media. "Stainless Steel 316-SS" indicates media compatible with Type 316 Stainless Steel.
3. Specifications % of Full Span unless otherwise noted.
4. Reference Uncertainty is the specification for as left data for 24 hours.
5. When reference class modules are used with fixed resolution products (717, 718, 719 series, 725 and 726) calibrators add ±1 count to the overall accuracy specification.
6. Burst rating specification refers to the multiplier times full scale of the module for the rated burst pressure.
