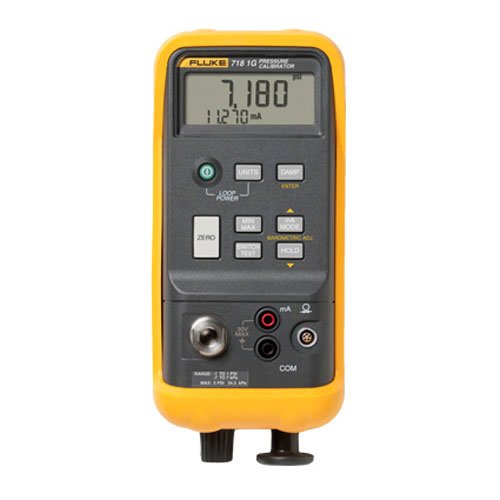

Image for Illustrative Purposes Only
Fluke 718 300G Pressure Calibrator
SKU: FLU718300G
718300G
DESCRIPTION
Features
Inclusions
Specifications
Shipping & Delivery
Fluke 718 300G Pressure Calibrator
The Fluke 718 Pressure Calibrator family (includes 4 models) provide a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
Discover the Fluke 718 300G Pressure Calibrator at Mektronics Australia – your trusted source for quality tools and equipment!
- Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
- Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field
- Error % calculation for quicker pass/fail decision making in the field
- Best in class mA accuracy of 0.015 % for better measurement confidence and workload coverage
- Min/Max/Hold to capture changing measurements
- Switch test feature for quicker and more accurate pressure switch testing
- New 1 and 300 PSI pressure ranges mean fewer extra tools required
- 1, 30, 100 & 300 PSI ranges now available
-12 psi to 100 psi, (-850 mbar to 7 bar, -85 to 689.48 kPa)
- Protective Yellow Holster with test lead storage
- Instructions Sheet (14 languages)
- Test Leads and Alligator Clip
- Two 9V alkaline batteries
- NIST - Traceable calibration report and data
| Technical Specifications | |
| Fluke 718 Series | |
| Measure pressure | (Internal sensor) |
| Accuracy | 0.025% full scale |
| Functions | Zero, min/max, hold, damp |
| Dry air, non-corrosives only | |
| Fluke 718 300G | |
| Range | -12 psi to 300 psi, (-850 mbar to 20 bar, -85 to 2068.42 kPa) |
| Resolution | 0.01 psi, 1 mbar, 0.1 kPa |
| Over pressure | 375 psi 25 bar |
| Functions | Zero, Min, Max, Hold, Damp |
| Fluke 718 series via 700 Series Pressure Modules | |
| Range | 29 pressure modules, 0 – 1 inH20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs |
| Resolution | Per pressure module specs |
| Accuracy | To 0.025% of full span, per pressure module specs |
| Functions | Zero, Min, Max, Hold, Damp |
| Media compatibility per pressure module specs | |
| Fluke 718 Series Via Built in Pump | |
| Range | -12 psi or -850 mbar to full scale Supported Pressure Units; psi, inH20 (4°C), inH20 (20°C), cmH20 (4°C), cmH20 (20°C), bar, mbar, kPa, inHg, mmHg, kg/cm |
| Loop power range | 24 V DC |
| Accuracy | ±10% |
| Drive; 20 mA into 1000 Ω for battery > 6.8 V; 700 Ω for battery 5.8 to 6.8 V | |
| mA Measure | |
| Range | 0 mA to 24 mA |
| Resolution | 0.001 mA |
| Accuracy | 0.015% + 1 count |
| General Specifications | |
| Maximum voltage | 30 volts (non-operating) |
| Temperature | -40°C to 60°C |
| Operating temperature | -10°C to 55°C |
| Relative humidity | 95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C) |
| Operating altitude | 3,000 M max |
| Shock | 1 M drop test |
| Vibration | Random, 2 g, 5 Hz – 500 Hz |
| Safety | CSA C22.2 No. 1010.1: 1992 |
| EMC | EN50082-1: 1992 and EN55022: 1994 Class B |
| Size | 216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in) |
| Weight | 992 g (35 oz) |
| Power, battery life | 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718 |
| Battery life | 4 to 20 hours typical, depending on functions used |
| Warranty | Three years (one year on pressure pump in Fluke 718) |
| Display | LCD, 5 digit pressure and current simultaneous |
| For use with non-corrosive gasses | |
