Image for Illustrative Purposes Only
Fluke 393 FC Cat III 1500 V True-rms Clamp Meter with iFlex
SKU: FLU393FC
393 FC
DESCRIPTION
Key Features
Includes
Specifications
Shipping & Delivery
Fluke 393 FC Cat III 1500 V True-rms Clamp Meter with iFlex
The 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex is designed for technicians who work in high voltage dc environment: solar arrays, wind power, electric railways, data centers battery banks for uninterruptible power supplies. The clamp will measure up to 1500 V dc, 1000 V ac, and up to 999.9 A dc or ac through the clamp jaw. The included iFlex flexible current probe extended ac current measurements up to 2500 amps.This clamp has a thin jaw, giving you access to cables in crowded combiner boxes. Test leads are designed with your work in mind, and are also rated to CAT III 1500 V dc.
Discover the Fluke 393 FC Cat III 1500 V True-rms Clamp Meter with iFlex at Mektronics Australia – your trusted source for quality tools and equipment!
-
Measure safely with CAT III 1500 V rated clamp meter
-
Thin jaw for access to cables in crowded combiner boxes
-
Sturdy IP54 rated for outdoor use
-
Work efficiently with dc power measurement, audio polarity and visual continuity
-
IP54 rated, ideal for work outdoors on solar arrays and wind power systems
-
DC power measurement, showing readings in kVA
-
Audio Polarity indicator helps prevent accidental miswires
-
Visual Continuity turns provide a bright green light in the display, ideal when working in dark and noisy environments
-
Logging and reporting of test results via Fluke Connect software
-
When measuring ac current the included iFlex flexible current probe gives you unparalleled access to cable is tight spaces. The iFlex probe can be twisted through extremely small spaces and provide accurate current measurements.
-

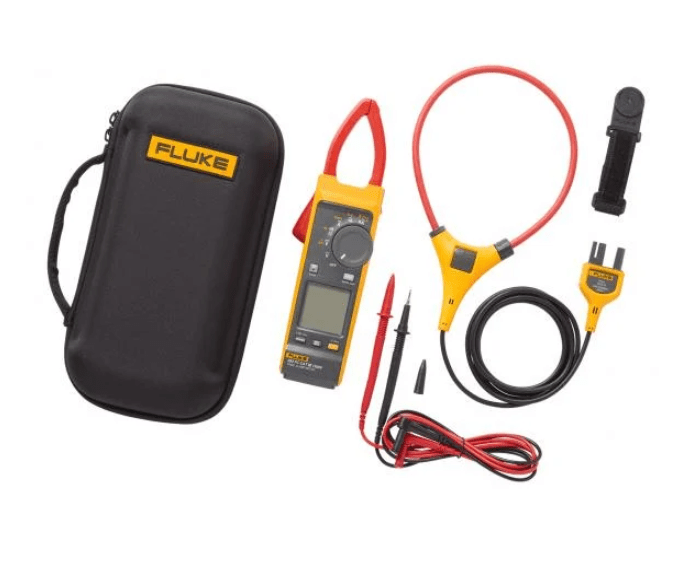

Fluke 393 FC CAT III 1500 V True-rms Clamp Meter with iFlex
-
Test leads, CAT III 1500 V rated, right angle plugs, with safety caps
-
iFlex 18 inch flexible current probe
-
TPAK magnetic hanging strap
-
Premium carrying case
-
3-year warranty
|
Specifications: |
|||
|
General |
|||
|
Maximum voltage between any Terminal and Earth Ground |
|||
|
AC |
1000 V |
||
|
DC |
1500 V |
||
|
Batteries |
2 AA IEC LR6 alkaline |
||
|
Display |
Dual display with backlight |
||
|
Automatic Power Off |
20 minutes |
||
|
Electrical |
|||
|
Accuracy |
|||
|
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]). |
|||
|
Temperature Coefficients |
Add 0.1 x specified accuracy for each °C > 28 °C or < 18 °C |
||
|
AC Current: Jaw |
|||
|
Range |
999.9 A |
||
|
Resolution |
0.1 A |
||
|
Accuracy |
2 % + 5 digits (10 Hz to 100 Hz) |
||
|
2.5 % + 5 digits (100 Hz to 500 Hz) |
|||
|
Crest Factor (50/60 Hz) |
2.5 @600.0 A |
||
|
3.0 @500.0 A |
|||
|
1.42 @999.9 A |
|||
|
Add 2 % for C.F. >2 |
|||
|
AC Current: Flexible Current Probe |
|||
|
Range |
999.9 A |
||
|
2500 A |
|||
|
Resolution |
0.1 A (‰¤999.9 A) |
||
|
1 A (‰¤2500 A) |
|||
|
Accuracy |
3 % RD + 5 digits (10 Hz to 500 Hz) |
||
|
Crest Factor (50/60Hz) |
2.5 @1400 A |
||
|
3.0 @1100 A |
|||
|
1.42@2500 A |
|||
|
Add 2 % for C.F. >2 |
|||
|
DC Current |
|||
|
Range |
999.9 A |
||
|
Resolution |
0.1 A |
||
|
Accuracy |
2 % RD + 5 digits[1] |
||
|
[1] When using the ZERO (B) function to compensate for offsets. |
|||
|
AC Voltage |
|||
|
Range |
600.0 V |
||
|
1000 V |
|||
|
Resolution |
0.1 V (‰¤600.0 V) |
||
|
1 V (‰¤1000 V) |
|||
|
Accuracy |
1 % RD + 5 digits (20 Hz to 500 Hz) |
||
|
DC Voltage |
|||
|
Range |
600.0 V |
||
|
1500 V |
|||
|
Resolution |
0.1 V (‰¤600.0 V) |
||
|
1 V (‰¤1500 V) |
|||
|
Accuracy |
1 % RD + 5 digits |
||
|
mV dc |
|||
|
Range |
500.0 mV |
||
|
Resolution |
0.1 mV |
||
|
Accuracy |
1 % RD + 5 digits |
||
|
Amps Frequency: Jaw |
|||
|
Range |
5.0 Hz to 500.0 Hz |
||
|
Resolution |
0.1 Hz |
||
|
Accuracy |
0.5 % RD + 5 digits |
||
|
Trigger Level |
5 Hz to 10 Hz, ‰¥10 A |
||
|
10 Hz to 100 Hz, ‰¥5 A |
|||
|
100 Hz to 500 Hz, ‰¥10 A |
|||
|
Amps Frequency: Flexible Current Probe |
|||
|
Range |
5.0 Hz to 500.0 Hz |
||
|
Resolution |
0.1 Hz |
||
|
Accuracy |
0.5 % RD + 5 digits |
||
|
Trigger Level |
5 Hz to 20 Hz, ‰¥25 A |
||
|
20 Hz to 100 Hz, ‰¥20 A |
|||
|
100 Hz to 500 Hz, ‰¥25 A |
|||
|
Voltage Frequency |
|||
|
Range |
5.0 Hz to 500.0 Hz |
||
|
Resolution |
0.1 Hz |
||
|
Accuracy |
0.5 % RD + 5 digits |
||
|
Trigger Level |
5 Hz to 20 Hz, ‰¥5 V |
||
|
20 Hz to 100 Hz, ‰¥5 V |
|||
|
100 Hz to 500 Hz, ‰¥10 V |
|||
|
DC Power |
|||
|
Range |
600.0 kVA (600.0 V dc range) |
||
|
1500 kVA (1500 V dc range) |
|||
|
Resolution |
0.1 kVA |
||
|
1 kVA |
|||
|
Accuracy |
2 % RD + 2.0 kVA |
||
|
2 % RD + 20 kVA |
|||
|
Resistance |
|||
|
Range |
600.0 Ω |
||
|
6000 Ω |
|||
|
60.00 kΩ |
|||
|
Resolution |
0.1 Ω (‰¤600.0 Ω) |
||
|
1 Ω (‰¤6000 Ω) |
|||
|
0.01 kΩ (‰¤60.00 kΩ) |
|||
|
Accuracy |
1 % RD + 5 digits | ||
|
Capacitance |
|||
|
Range |
100.0 μF |
||
|
1000 μF |
|||
|
Resolution |
0.1 μF (‰¤100.0 μF) |
||
|
1 μF (‰¤1000 μF) |
|||
|
Accuracy |
1 % RD + 5 digits |
||
|
Inrush Trigger Level |
5 A |
||
|
Mechanical |
|||
|
Size (L x W x H) |
281 mm x 84 mm x 49 mm |
||
|
Weight (with batteries) |
520 g |
||
|
Jaw Opening |
34 mm |
||
|
Flexible Current Probe Diameter |
7.5 mm |
||
|
Flexible Current Probe Cable Length |
|||
|
(head to electronics connector) |
1.8 m |
||
|
Environmental |
|||
|
Operating Temperature |
-10 °C to 50 °C |
||
|
Storage Temperature |
-40 °C to 60 °C |
||
|
Operating Humidity |
Non condensing (<10°C) |
||
|
‰¤90 % RH (at 10 °C to 30 °C) |
|||
|
‰¤75 % RH (at 30 °C to 40 °C) |
|||
|
‰¤45 % RH (at 40 °C to 50 °C) |
|||
|
Operating Altitude |
2000 m |
||
|
Storage Altitude |
12 000 m |
||
|
Ingress Protection (IP) Rating |
IEC 60529: IP54 non-operating |
||
|
Electromagnetic Compatibility (EMC) |
|||
|
International |
IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A |
||
|
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. |
|||
|
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. |
|||
|
Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. |
|||
|
Korea (KCC) |
Class A equipment (Industrial Broadcast & Communications Equipment) |
||
|
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. |
|||
|
USA (FCC) |
47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
||
|
Safety |
|||
|
General |
IEC 61010-1, Pollution Degree 2 |
||
|
Measurement |
IEC 61010-2-032: CAT III 1500 V / CAT IV 600 V |
||
|
IEC 61010-2-033: CAT III 1500 V / CAT IV 600 V |
|||
|
Wireless Radio |
|||
|
Radio frequency certification |
FCC ID: T68-FBLE, IC: 6627A-FBLE |
||
|
Wireless Radio Frequency Range |
2400 MHz to 2483.5 MHz |
||
|
Output Power |
<100 mW |
||
