Brady M510 Label Printer + LAB

SKU: BRA881541

881541

$1,018.49

EX. GST
$1,120.34
INC GST
Out of Stock: Available to Order

own it from $10 a week with Group 2 Copy Created with Sketch.

DESCRIPTION
Features
Includes
Specifications
Shipping & Delivery

Brady M510 Label Printer + LAB

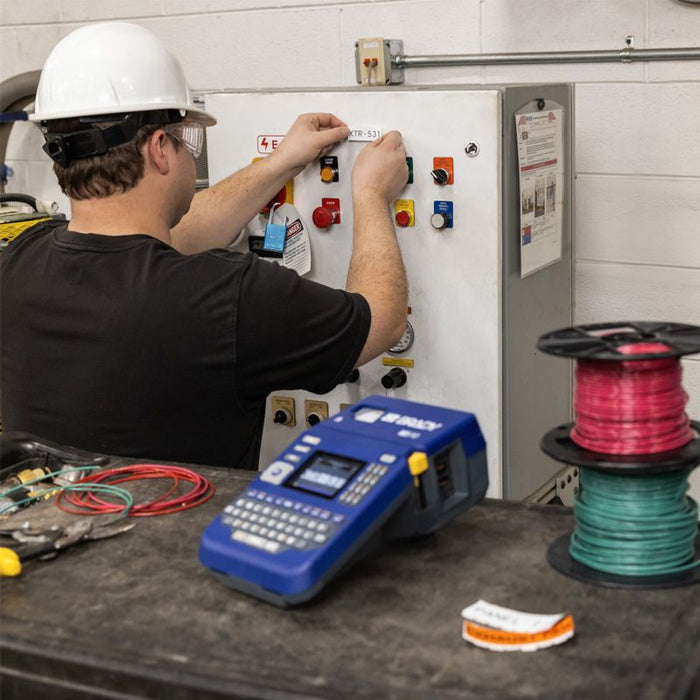

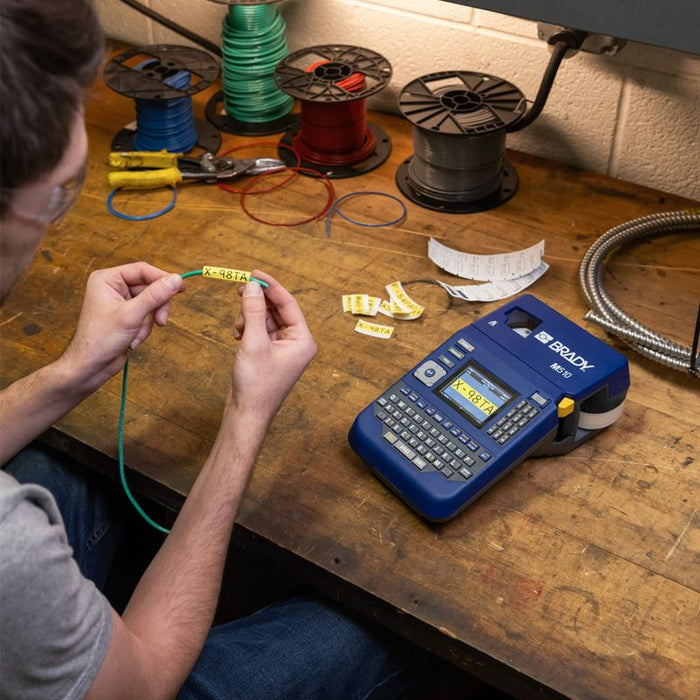

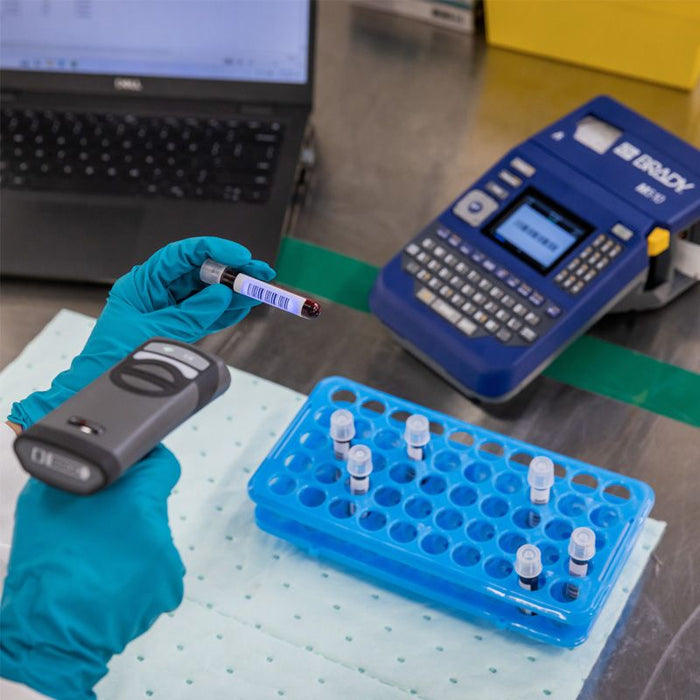

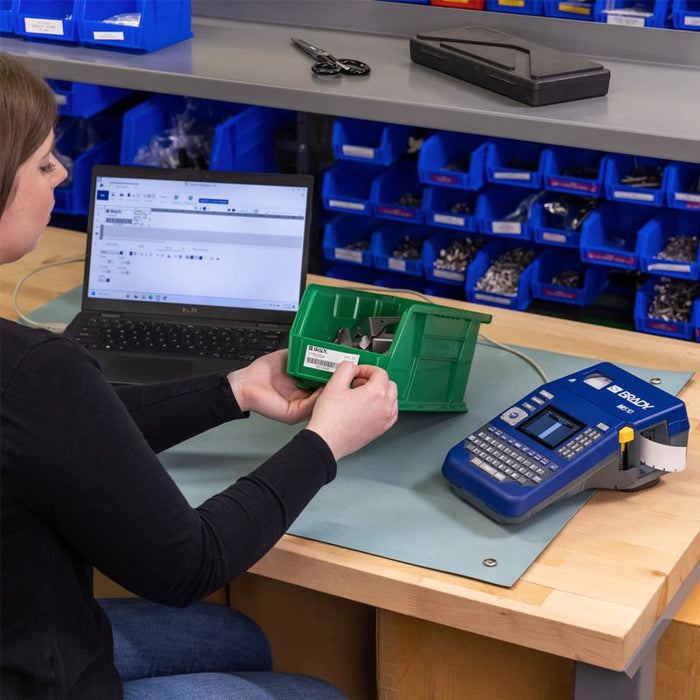

The perfect companion for your project workspace, the M510 delivers high-volume, high-quality labels day in and day out. Whether you're in a lab, field or facility, this printer works as hard as you do.

  • Product Number: M510

  • Colour: Blue, Gray

  • Device Drop Test & Durability: Resistant to 1.2m drops

  • Maximum Labels per Day: 1000

  • User Interface Type: Full QWERTY Keyboard, PC

  • Connectivity Options: USB

  • Cutter Type: Single-Hand Manual Actuate

  • Maximum Label/Tape Width (mm): 38.10 mm

Discover the Brady M510 Label Printer + LAB at Mektronics Australia – your trusted source for quality tools and equipment!

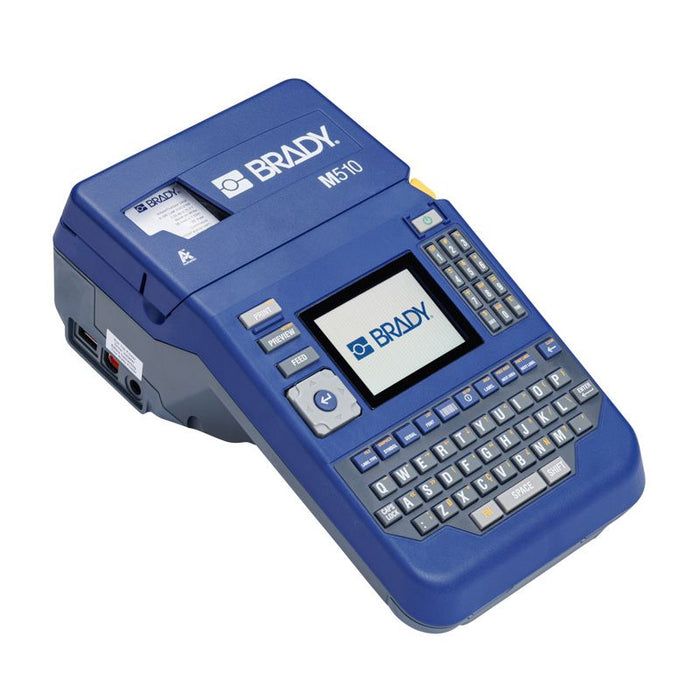

  • M510 Portable Label Printer

  • Create large 38.1mm labels with edge-to-edge printing and a wide range of text sizes

  • Print up to 38.1mm per second to get work done faster

  • Use the M510 for more applications with 250+ hassle-free drop-in cartridges and 26+ high-performance materials

  • Enter data with more accuracy as you work between an intuitive QWERTY keypad, a separate numeric keypad or a PC

  • Backlit full-color LCD graphics display for easier labeling in low-lit areas

  • Durably designed to withstand 1.2m drops

  • The rechargeable NiMH battery prints up to 1700 labels on a single charge

  • Design and print labels from a PC using Brady Workstation Software

  • x1 M510 Printer

  • x1 Indoor/Outdoor Vinyl Label Cartridge (M5C-1500-595-WT-BK)

  • x1 Rechargeable NiMH Battery Pack (M-NIMH-BATTERY)

  • x1 AC Adapter (M41-51-61-AC)

  • x1 Quick Start Guide

  • x1 Brady Workstation Basic Design Suite

  • x1 USB Cable (M-USB-103788)

  • x1 USB Flash Drive with Driver and User Manual

  • x1 Brady Workstation LAB Suite

Key Characteristics
Brand Name
Brady®
Sold
1 Each
Industry
Automotive, Buildings identification, Construction, Education, Electrical, Electronics, Energy utilities, Government, ICT, Laboratory, Manufacturing, Oil & gas, Process, Pulp & paper, Tourism & recreation, Voice & data communication, Warehouse & logistics
Trade Name
M510
Material Characteristics
Printer Material
Plastic
Storage Temperature Range (C)
-18°C - 43°C
Printing Specifications
On Screen Indicators
Battery Life, Ribbon and label part number recognition, Supply Remaining
Power Source
AC Adaptor, Rechargeable Battery
Print Technology
Thermal Transfer
Printing Functions
Auto Format, Banner, Date/Time Stamp, Fixed Length, Justification, Mirror, Multi-copy, Print Preview, Reverse, Rotate, Vertical, Serialisation
Serialisation
Simple & Simultaneous & Single Advanced & Multiple Advanced
Font Styles
Brady Alpine, Brady Fixed Width
Media Format
Media and Ribbon in Cartridge, supplied together
Colour Printing Capability
Single Colour
Maximum Labels per Day
1000
Maximum Print Speed (mm/s)
38.10
Operating Humidity Range
20%-90% (non-condensing)
Operating Temperature Range (C)
4°C - 43°C
Barcode Symbologies - 1D
Code 39, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E, Code 128, EAN-8, EAN-13
Barcode Symbologies - 2D
Data Matrix, QR code
Barcode Symbologies - Combined
Code 39, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E, Data Matrix, QR code, Code 128, EAN-8, EAN-13
Features
User Interface Type
Full QWERTY Keyboard, PC
Application
Asset Tracking, Circuit Board Labelling, Data and telecommunications Labelling, Electrical Labelling, Facility Identification, General identification, Safety Identification, Warehouse Marking, Wire and cable Labelling
Built-In Label Wizards
Wire Wrap, Breaker Box, DesiStrip, Face Plate, Flags, Patch Panel, Terminal Block, Vial, 66 Block, General
Connectivity Options
USB
Device Connectivity
PC connected, Stand-alone
Display Type
LCD backlit graphics display
Printer and Label Applications
Circuit Board, Datacom, Electrical, General Identification, Inspection Repair, Laboratory, Rating & Name Plates, Wire & Cable, Lean / 5S, Safety, Pipe Marker
Power Supply Voltage
110 - 240 V
Smart Cell
Yes
Battery Type
Rechargeable Lithium-ion Battery
Recharge Time
4 hours
Battery Weight (g)
230.00
How Is Battery Shipped
Shipped installed in equipment
Cutter Type
Single Hand Manual Actuate
Display Resolution
320 x 240 pixels
Keyboard Type
QWERTY
Number of Symbols
480
Print Resolution dpi
300 dpi
Special Characters Quantity
123
Font Sizes
4 - 170 pt
Auto Shut-Off / Power Conserve
User Configurable
Battery mAh Rating
1200 mAh
Dimensions
Height (mm)
95.25
Width (mm)
146.05
Depth (mm)
254.00
Overall Dimension
146,05 mm (W) x 95,25 mm (H) x 254,00 mm (D)
Weight (kg)
1.38
Maximum Label/Tape Width (mm)
38.10
Maximum Liner Width (mm)
45.72
Maximum Print Width (mm)
36.58
Maximum Printed Label Length (mm)
99.06 cm
Storage Humidity Range
10%-90% (non-condensing)
Compatibility
Compatible Brady B-Numbers
B-109, B-145, B-342, B-351, B-403, B-412, B-414, B-417, B-422, B-423, B-425, B-425A, B-427, B-428, B-432, B-461, B-482, B-481, B-483, B-483A, B-488, B-490, B-492, B-494, B-498, B-499, B-581, B-584, B-595, B-7425, B-7641
Label Material Types
FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, BradyGrip® Polyester
Languages Available
Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Italian, Japanese, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Turkish
Compatible Media
M4-, M4C-, M5-, M5C-
