BOFA T30A High Vacuum Fume Extraction System Powder Coated
SKU: BOFE2142A
E2142AT30A
DESCRIPTION
Features
Specifications
Shipping & Delivery
BOFA T30A High Vacuum Fume Extraction System Powder Coated
Centralised tip extraction for lead and lead free solder applications.
The T 30A high vacuum unit has been designed to extract and filter fumes and debris through small bore hoses. Ideally suited to hand soldering iron tip extraction, the unit will protect up to 30 operators. The unit can also be used for Vac pens and any application requiring close proximity, micro extraction.
Automatic flow control comes as standard. This allows the unit to be set to the optimum flow rate to suit the number of operators connected to the system. The unit will then maintain the set airflow over the life of the filters ensuring maximum protection to the operators.

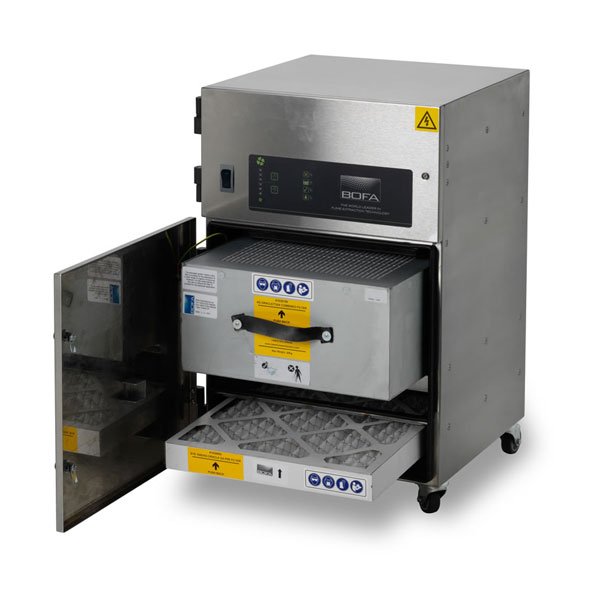

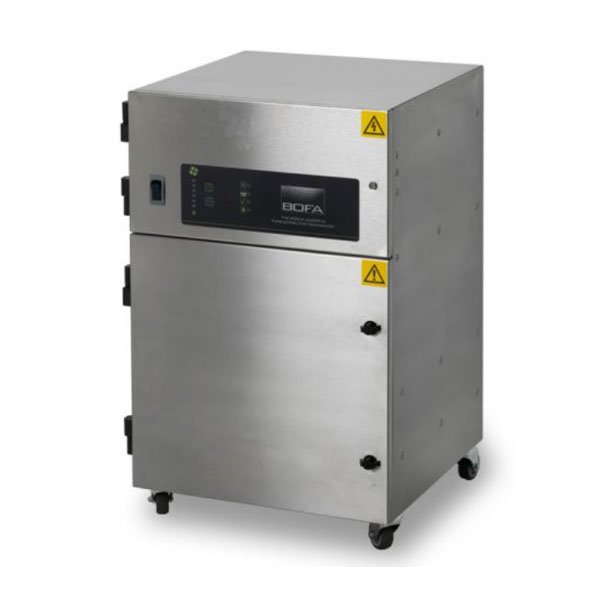

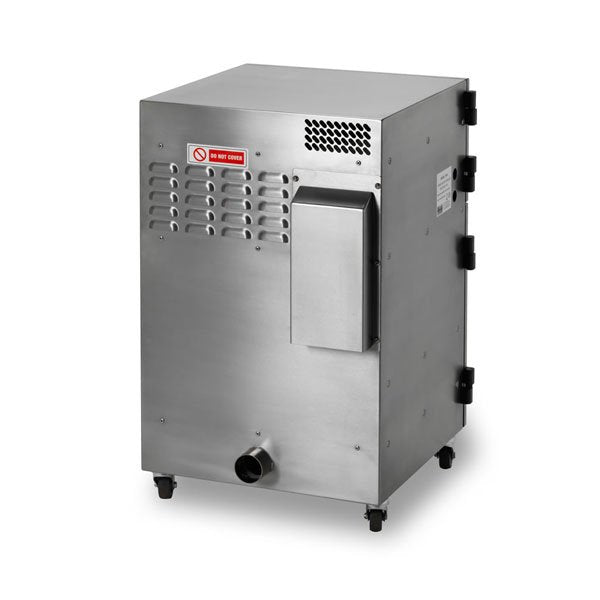

NOTE: IMAGE IS STAINLESS STEEL MODEL - THIS PRODUCT IS POWDER COATED
-
Bofa uses mini pleat design HEPA (high efficiency particulate air) filters which are tested and certified to a minimum efficiency of 99.997% down to 0.3 microns and 95% as small as 0.1 micron. They incorporate a series of webbing between the pleated media. This feature not only guarantees even spacing for full filter coverage between each pleat, but also alleviates the possibility of airflow vibration or collapse.
-
Automatic flow control (AFC): Automatic flow control (AFC) allows the operator to preset the correct airflow rates for the specific application, subsequently maintaining the airflow. This generates lower noise levels and ensures further protection of the more expensive HEPA filters.
-
Advanced carbon filter technology: ACR assures safe capture and removal of hazardous fumes. Contaminated air must remain in contact with the carbon bed for a period of time sufficient to ensure that no contaminants or odours are emitted ('dwell time'). Our filters have been developed to capture all contaminants and odours, eliminating the risk of bypass and/or tunnelling.
Discover the BOFA T30A High Vacuum Fume Extraction System Powder Coated at Mektronics Australia – your trusted source for quality tools and equipment!
-
Automatic flow control
-
Reverse flow
-
'Easi-Seal' filter location
-
Small footprint
-
Low noise levels
-
Brushless motor
-
Dimensions (HxWxD): 725x450x480mm
-
Cabinet Construction: Powder coated mild steel
-
Recommended flow rate with filters fitted (per tip): 22 L/M
-
Electrical Data: 230v 1ph 50/60Hz Full load current: 7.3amps / 1.1kw
-
Noise level: <68dBa (at typical operating speed)
-
Weight: 56kg
-
Pre filter efficiency: 85% @ 0.8 microns
-
HEPA filter efficiency: 9.997% @ 0.3 microns
-
Gas Filter: Treated activated carbon
Replacement Filter Parts
- Pre filter: A1030093
-
Combined filter: A1030399
